    12V/24V DC Brushless Cooling Blower Fan, 97mmx33mm

    The 12V/24V brushless DC cooling blower fan is the reliable and efficient choice, with dimensions of 97mmx94mmx33mm and a fan speed of 5200 rpm. The centrifugal design allows the brushless cooling blower fan to move air in a concentrated and directed flow, making it ideal for tasks such as cooling radiators or transporting air through ventilation systems.
    SKU: ATO-CBF-9733
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The low price centrifugal blower fans dimensions of 97 mm x 94 mm x 33 mm and an airflow of 0.75 m3/min. Brushless dc centrifugal fan features durable construction and high quality components to withstand the demands of continuous use. Its sealed ball bearing motor and robust plastic housing ensure reliable operation even in harsh environments or extreme temperatures.


    Model ATO-SJ9733
    Rated Voltage 12V 24V
    Rated Current 0.60A 0.30A
    Rated Power 14.4W
    Fan Speed 5200 rpm
    Noise 53 dB
    Air Volume 0.75 m3/min
    Frame Heat shrinkable polyester, environmentally friendly & fire resistant
    Fan Blades Heat shrinkable polyester, environmental friendly & fire resistant
    Bearing Type Ball Bearing & Oil Bearing
    Lead Wire 1007 24AWG Red+ Black- 1007 24A WG Red + Black
    Motor Protection Impedance protection, reverse polarity protection, automatic restart
    Operating Voltage 3.5V~6.5V, 6V~13.8V, 12V~26.5V
    Operating Temperature/Humidity -10°C~70°C 35%~ 85%RH
    Storage Temperature/Humidity -40°C~80°C 35%~85%RH
    Weight 164g

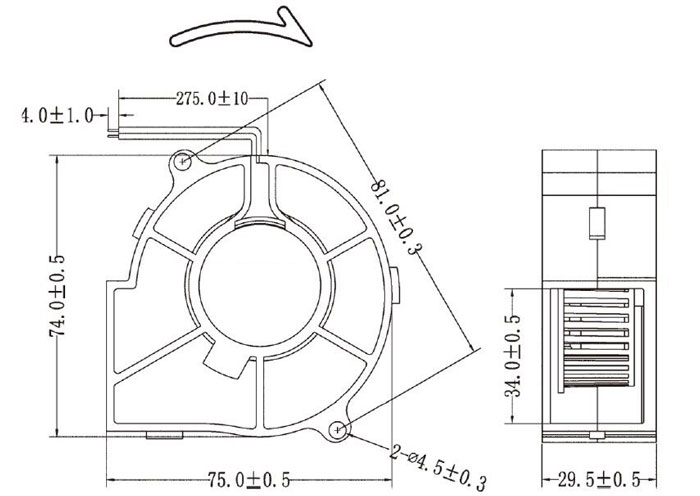

    Dimension: (Unit: mm)

     97mm cooling blower fan dimension

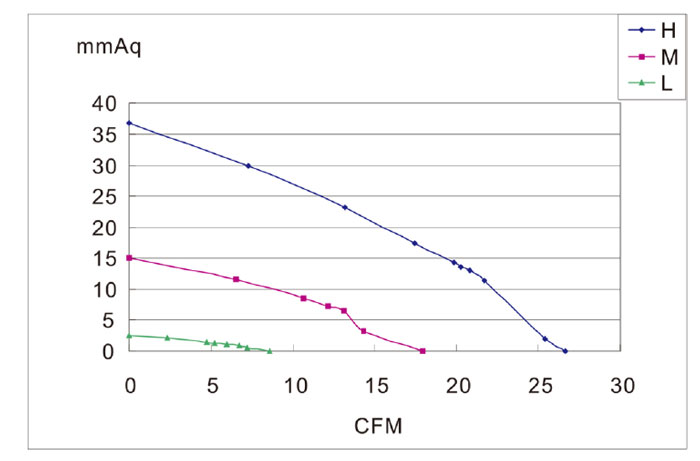

    Performance Curve

    97mm cooling blower fan performance curve


    Cooling blower fans are widely used in various industries and applications where cooling is required, such as computer cooling systems, industrial machinery, and HVAC systems. These fans work by drawing in hot air and blowing it out to dissipate heat, thereby maintaining a safe operating temperature. They are also commonly used in automotive applications to cool engines and other components. Additionally, cooling blower fans are used in medical equipment and scientific instruments where precise temperature control is essential for accurate measurements and analysis.

    Cooling blower fan applications

    Tips: How to install a cooling blower fan?

    1. Installing a cooling blower fan can help improve the airflow inside your computer case or other electronic equipment, helping to keep it cool and prevent damage from overheating. Here are the general steps for installing a cooling blower fan:
    2. Identify where you want to install the cooling blower fan. Look for a spot where it can blow air directly over the area you want to cool.
    3. Ensure you have the right size and type of cooling blower fan for your application. Check the specifications of the device or equipment you want to cool to ensure the fan is compatible with its power supply, size, and airflow requirements.
    4. Power down your device and unplug it from the electrical outlet to prevent any potential electrical hazards.
    5. Open the case or housing where you want to install the cooling blower fan. Depending on the equipment you're working with, this may involve removing screws, clips, or other fasteners.
    6. Locate the spot where you want to install the cooling blower fan. Mark the location where you plan to install the fan, if necessary.
    7. Attach the cooling blower fan to the case or housing. Depending on the type of fan and case, this may involve screwing it into place or using other fasteners to secure it.
    8. Connect the power supply to the cooling blower fan. Depending on the type of fan and equipment you're working with, you may need to use an adapter or other connectors to ensure the fan gets the correct voltage.
    9. Power on your device and test the cooling blower fan to ensure it's working properly. Listen for any unusual sounds or vibrations, and check to make sure it's blowing air in the correct direction.
    10. Close the case or housing and secure any fasteners you removed in step 4.

    With these steps, you should be able to install a cooling blower fan in your electronic equipment and help ensure it stays cool and operates properly.
