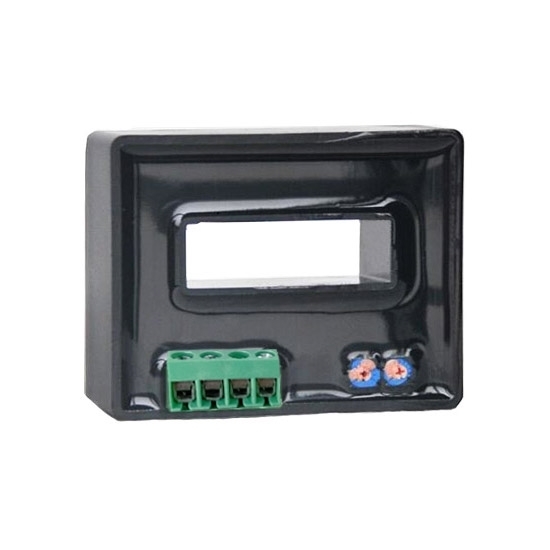

    Current Sensor AC/DC 50 amp/100 amp/1000 amp to 2000 amp

    5 out of 5 based on 2 reviews | Write a review
    AC/DC current sensors have a small size, square-hole design, 1.0%FS accuracy, 0-4V/0-5V output signal, ±15V power supply, 5us fast response time, excellent linearity, strong anti-interference capacity. Open loop current sensors are widely used for AC/DC current measurement of dc motor drive/plating and welding control system.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Hall effect current sensor has measuring range of AC/DC 50A/100A/200A/300A/400A/500A/600A/800A/1000A/1200A/1500A to 2000A.


    Shipping weight 1kg
    Hole size * 20.5*10.5mm 43*13mm 52*15mm 52*32mm
    Measuring range of input current * AC/DC 0-50A ~ 0-500A AC/DC 0-200A ~ 0-1000A AC/DC 0-200A ~ 0-1500A AC/DC 0-400A ~ 0-2000A
    Output signal * 0-4VDC, 0-5VDC
    Zero offset voltage ±20mV
    Offset voltage drift ≤±1.0mV/℃
    Linearity ≤0.2%FS
    Power supply ±15VDC
    Accuracy 1.0%F.S.
    Bandwidth 0~20kHz
    Response time ≤5us
    Withstand voltage AC 2500V (between input, output and power supply)
    Work temperature -25~+70℃
    Storage temperature -40~+85℃
    Humidity ≤95%RH (no dew formation, no corrosive gas)
    Elevation ≤3500m
    Measuring method Through-hole type
    Installation Screw fixation

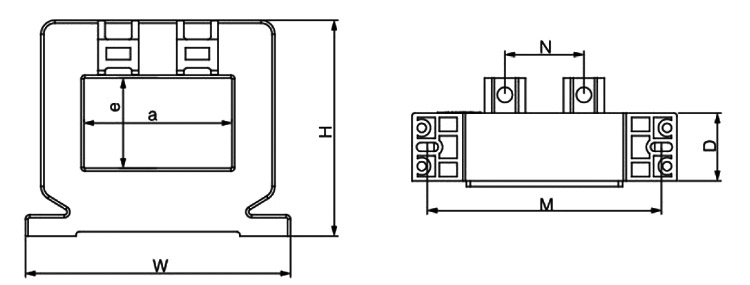

    AC/DC current sensor 50 amp to 2000 amp dimensional diagram:
    Current sensor 50 amp/100 amp/1000 amp to 2000 amp dimension

    Model Dimension (mm)
    W H D a
    e M (Mounting) N (Mounting)
    ATO-AHKC-BS 43 32.5 19 20.5 10.5 - -
    ATO-AHKC-F 74 57 22 43 13 - 22
    ATO-AHKC-FA 94 60.5 26.5 52 15 83 28
    ATO-AHKC-HAT 94 76.5 24 52.5 32 83 28

    AC/DC current sensor 50 amp to 2000 amp wiring diagram:
    Current sensor 50 amp/100 amp/1000 amp to 2000 amp wiring diagram

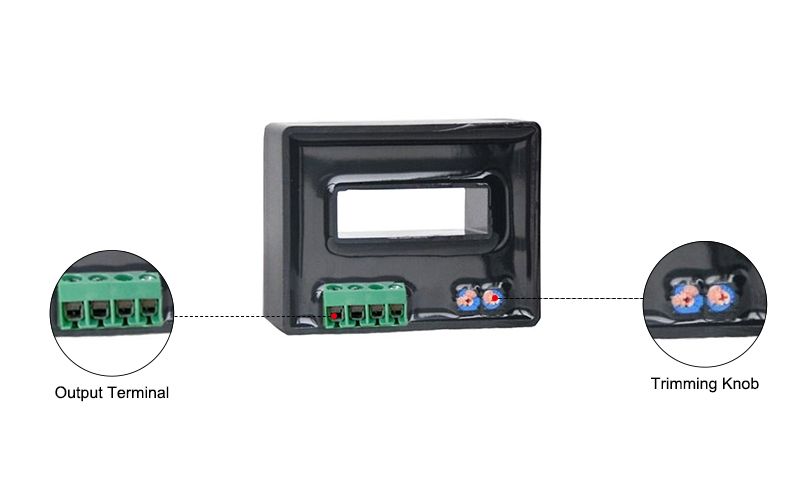

    50amp to 2000amp Current Sensor Details

    Tips: What is the difference between Hall current sensor, current transformer and shunt?
    The shunt is an exact resistor that can pass through a large current, and when the current flows through the shunt, a microvolt-level voltage appears at both ends of it, and the microvolt-level is used to measure the voltage, and then the voltage is converted into an electric current. The measurement of the high current is completed. The shunt is very simple, can only measure DC, do not need power supply, output signal is DC 0-75mV, it is simply a resistor.
    Current transformer is the proportional transformation of high currents into standard small currents (5A or 1 A) using for standardization and miniaturization based on measuring instruments, protective equipment and automatic control equipment. At the same time, current transformers can also be used to separate high current systems to ensure the safety of people and equipment. Current transformer is based on the principle of mutual inductance that can only detect the current in 50Hz power frequency, do not need the power supply, the output signal is generally AC 1A, AC 5A.
    Current sensor is based on Hall principle, which is divided into open-loop and closed-loop. It can measure AC, DC, high frequency, harmonic and other currents can be measured, it need to connect external power supply. The output signal can be 4-20mA, 0-20mA, 0-5V, and 0-10V and so on.

    Existing reviews of Current Sensor AC/DC 50 amp/100 amp/1000 amp to 2000 amp
    The working principle of AC/DC current sensor
    I also need to know how the AC/DC current sensor works. Does it use a shunt or does it measure the electric field?
    From: Finney | Date: 03/11/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    For AC/DC current sensor, it adopts linear photoelectric isolation or modulation and demodulation principle to measure the AC and DC current in the circuit "in real time", and it converts the measurement results to 0-20mA or 4-20mA analog signal.
    works well
    I haven't used this unit yet but it seems to be well built and easy to use, Based on my using a slightly different switch. I am now using this device to sense when my mini-split heat pump turns on. It has a 0.5 A keep-alive current which I was hoping that this item wouldn't sense. It is working great.
    From: Feabert | Date: 26/09/2021
    Was this review helpful? Yes No (0/0)
