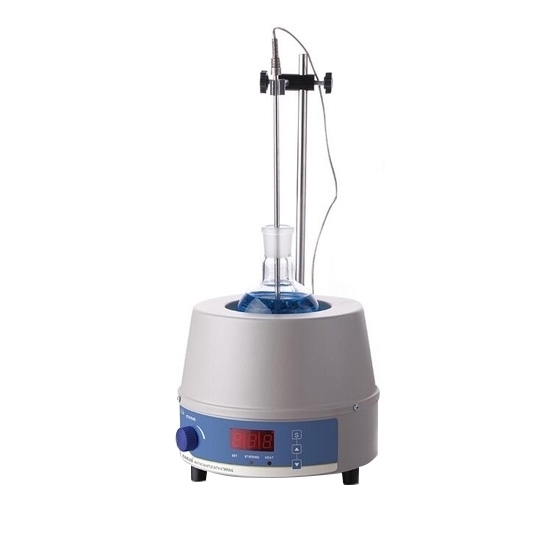

    Digital Heating Mantle with Stirrer, 100ml/500ml/1L/2L/5L/10L/20L

    5 out of 5 based on 2 reviews | Write a review
    Cheap digital heating mantle with magnetic stirrer, comes with digital dispay & temperature control, for convenient reading, easy and accurate operation, durable inner and shell, long service life. Optional capacity 100mL / 250mL / 500mL / 1000mL / 2000mL / 5000mL / 10L / 20L to meet different lab requirements. Mantle with magnetic stirring function for more efficient and uniform heating up.
    30-day Returns
    Free Shipping
    Delivery date: 10-20 days

    Digital heating mantle with magnetic stirrer has selectable capacities of 100mL, 250mL, 500mL, 1000mL, 2000mL, 5000mL, 10L and 20L. It is used for liquid stirring and heating in colleges, petrochemical industries, pharmaceutical and environment protection institutions.


    • Digital display, convenient & accurate to control temperature and easy to read out.
    • With alkali-free glass fiber mantle, corrosion-resistant, heat-resistant and durable.
    • Fast heating-up without open flame, long lifespan.
    • Inner hemispherical heater with larger heating area for uniform and efficient heat.
    • Comes with magnetic stirring function, making the liquid heat evenly under stirring, ideal heating mantle for labs and chemical institutions.


    Model ATO-HMSC
    Capacity 100mL 250mL 500mL 1000mL 2000mL 5000mL 10000mL 20000mL
    Heating Power 100W 150W 250W 350W 450W 800W 1200W 2400W
    Max Temperarure Room temp. 380℃ (Temperature control 300℃)
    Function Heating and stirring
    Temperature Control Digital temperature control
    Stirring Speed 0-1400 RPM
    Power Supply 220V AC or 110V AC
    Size 23*23*20cm 23*23*20cm 23*23*20cm 30*30*24cm 32*32*27cm 37*36.5*30cm 43*42.5*35.5cm 51*50.5*38cm
    Weight 2.4kg 2.8kg 2.9kg 4.4kg 5.3kg 8kg 12.1kg 18.6kg
    Packing List Heating mantle*1, power plug*1, stir bar*1, user manual*1, temperature probe*1 (6mm diameter, up to 200℃), bracket*1

    Note: For the capacity greater than or equal to 2000mL, the heating mantle with stirrer can ONLY be equipped with 2-pin European power plug, 3-pin Australian plug or UK plug, so the European plug is equipped for the USA by default.

    Heating Mantle w/ Stirrer Details

    Digital heating mantle with stirrer details

    Note: Glass breaker are not included in the packing list.


    Heating mantle with magnetic stirrer is a kind of instrument for liquid heating in laboratory, and it also has stirring function to achieve the purpose of rapid mixing for even heating. This instrument works reliably, operates simply, and has the heating power continuous adjustable. The digital heating mantle with magnetic stirrer can easily observe and control the heating state with digital display, and the stirring speed can be adjusted continuously to adapt to different work needs. It is an ideal equipment for laboratories of schools, factories and scientific research institutes.

    Matters needing attention when using heating mantle with magnetic stirrer:

    1. As the surface of the heating mantle is coated with oil, it is normal to emit white smoke when using it for the first time. Then the surface turns brown, and the original color can be restored after a few minutes.
    2. Heat and stir at the same time, or use alone.
    3. When heating, please do not touch the electric heating cover to avoid scalding.
    4. Stirring speed adjustment should start from low gear.
    5. Do not splash the solution on the machine during operation.
    6. After use, the power switch should be turned off and the heating mantle should be stored in a ventilated and dry place after cooling.

    Existing reviews of Digital Heating Mantle with Stirrer, 100ml/500ml/1L/2L/5L/10L/20L
    What material is the temperature probe of mantle?
    What material is the temperature probe?
    We require a metal-free probe for our reactions, is that a possibility? Or what is the connection type so we can source a PTFE/Glass probe?
    From: helga | Date: 25/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    This temperature probe can use a PTFE material, an additional cost of 30 USD.
    great for the money
    I use this with denatured alcohol for cleaning resin prints with my resin printer and it works wonderfully! I use some stainless hooks to hang the parts inside the beaker. Haven't had any problems using a 1000ml beaker filled with liquid!
    From: Willan | Date: 16/09/2021
    Was this review helpful? Yes No (0/0)
    Load more reviews...
