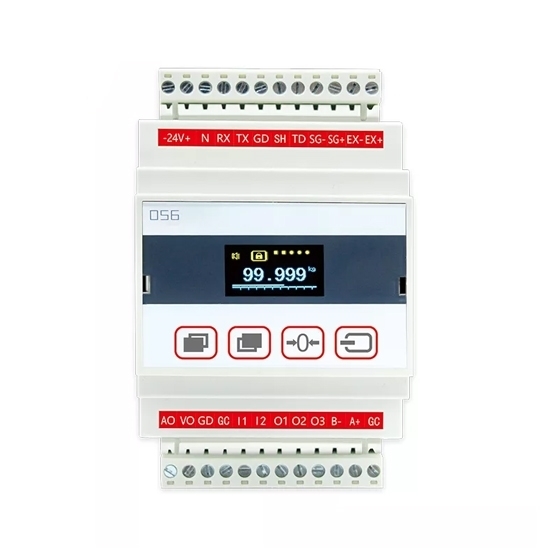

    Display Controller for Torque Sensor, RS485 Interface
    Picture of Display Controller for Torque Sensor, RS485 Interface
    Picture of Display Controller for Torque Sensor, RS485 Interface
    Picture of Display Controller for Torque Sensor, RS485 Interface
    Picture of Display Controller for Torque Sensor, RS485 Interface

    Display Controller for Torque Sensor, RS485 Interface

    4.6 out of 5 based on 3 reviews | Write a review
    $185.29
    ATO display controller with RS485 interface for sale, this transmitter is specially designed for torque sensor, optional transmit output of 4-20mA, 0-10V, -5V~+5V, and RS232 interface, analog input signal range from -15mV to 15 mV, working at 12~30V DC supply voltage.
    *
    *
    SKU: ATO-DPM-D056
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Favorable price display controller is a digital panel meter used for torque sensors. It is equipped with an RS485 interface for real-time measurement and monitoring and is available in transmit output of 4-20mA, 0-10V, -5V~+5V, and RS232 interface.

    Specification

    Model ATO-DPM-D056
    Supply Voltage 12~30V DC,<5W
    Supply Bridge Voltage 5V/100mA, Proportional Acquisition
    Default Configuration RS485 Interface (Modbus RTU Protocol)
    Additional Transmission Output (Optional) 0~10 or -5~5V, 4-20mA, RS232 Interface
    Comprehensive Accuracy 0.1%
    Non-linearity 0.02%
    Fastest Sampling Speed 3200 times/s
    Analog Input Signal Range -15~15mV
    Display Graduation 999999 or 99.999
    Temperature Drift <20ppm
    Relative Temperature -20~70℃
    Relative Humidity <90%(No condensation)

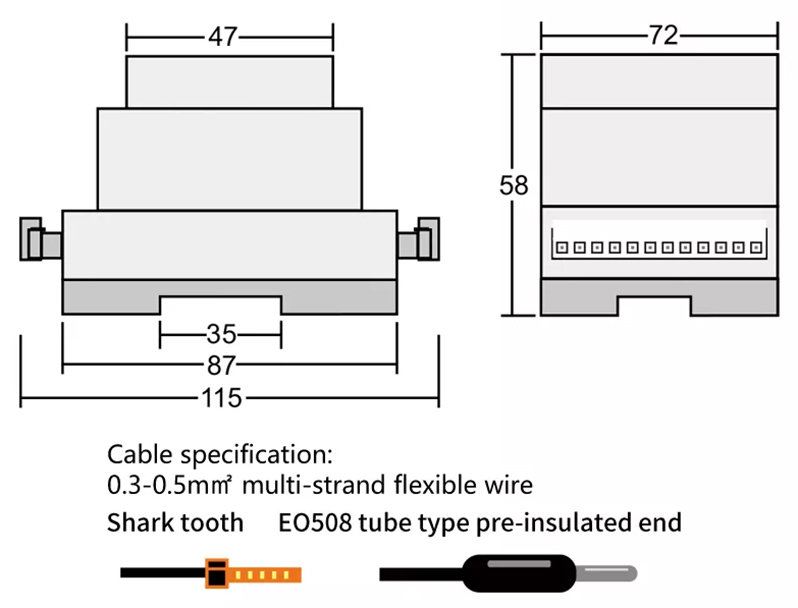

    Dimension (Unit: mm)

    display controller for torque sensor dimension

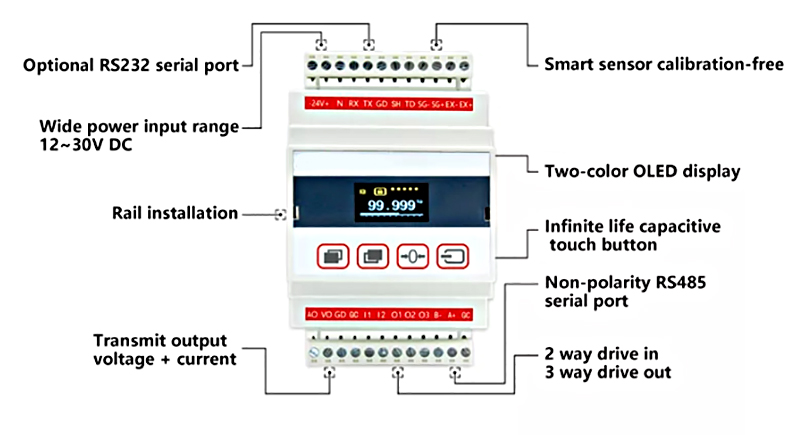

    Detail

    Display controller for torque sensor detail

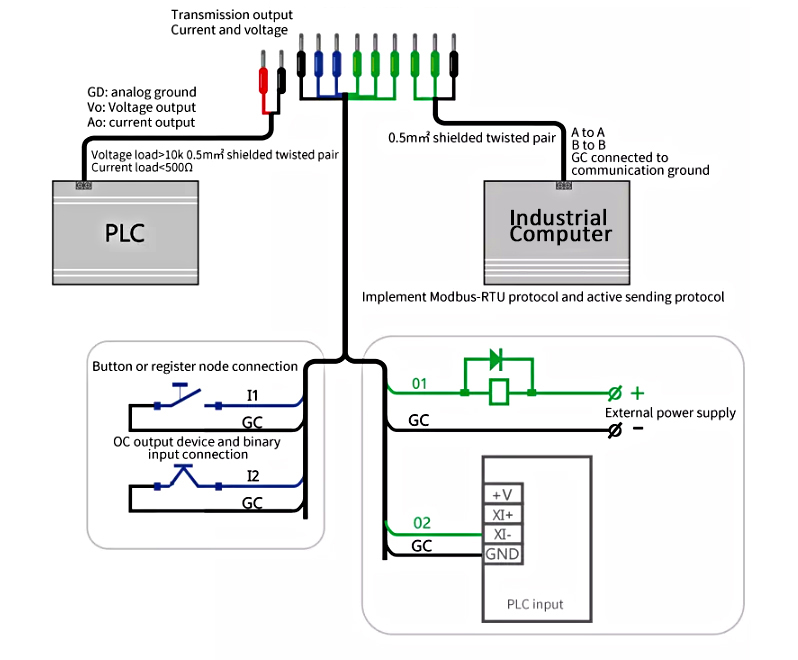

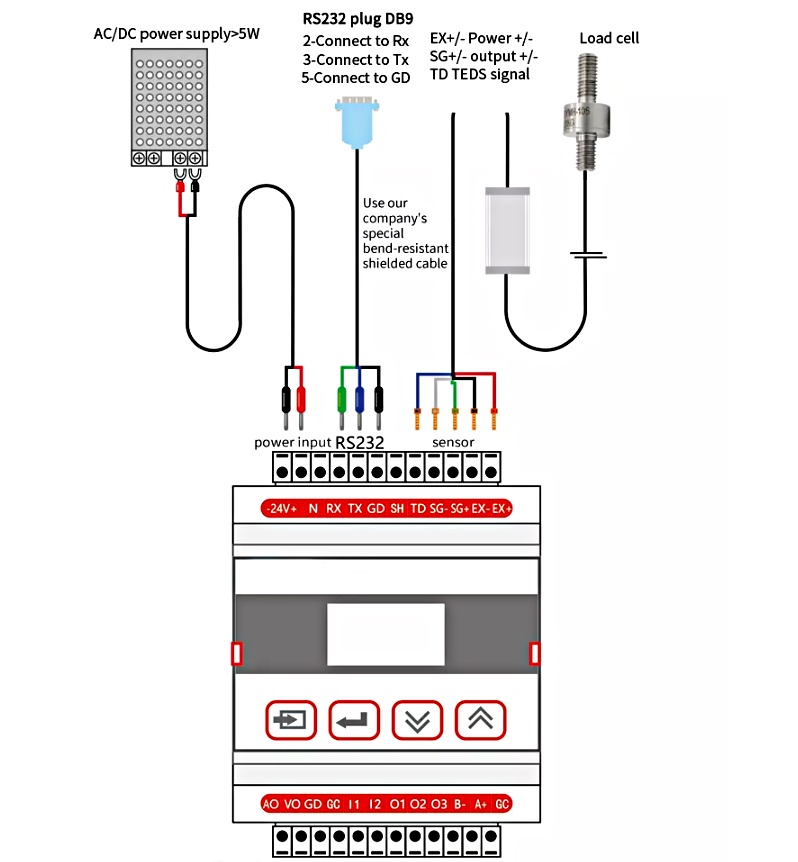

    Wiring Diagram

    Display controller for torque sensor wiring

    Display controller for torque sensor wiring

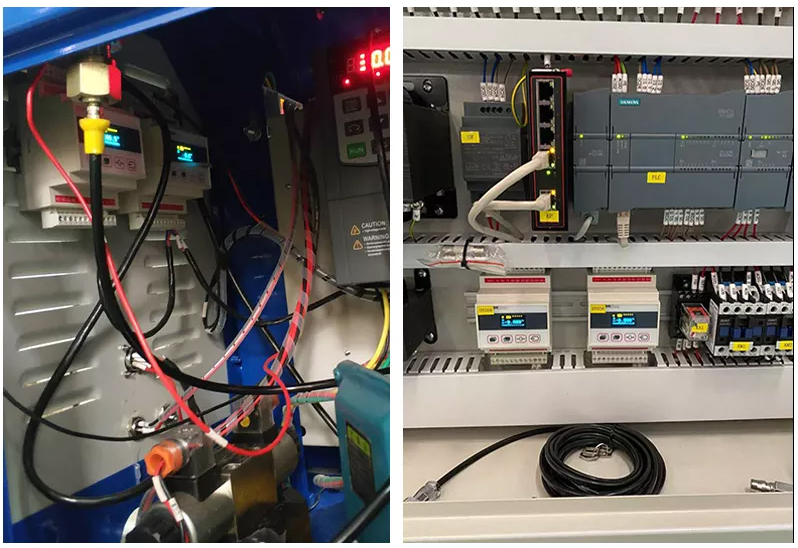

    Application

    Display controller for torque sensor application

    Tips: How to choose a display controller for torque sensor & load cell?

    Choosing the right display controller for a torque sensor or load cell is crucial for accurate measurements and efficient system integration. Here are key factors to consider:

    • Sensor Compatibility: Ensure the controller supports your sensor’s signal output type (mV/V, 4-20mA, ±10V, or digital output like RS485/Modbus).
    • Accuracy & Resolution: Choose a high-resolution controller (e.g., 24-bit ADC) for precise readings.
    • Display & Interface: Look for a clear LCD/LED display and user-friendly interface for easy setup.
    • Output & Connectivity: Ensure it supports necessary outputs like analog signals, RS485/Modbus, or relay outputs for automation.
    • Sampling Rate: A high-speed sampling rate is needed for dynamic force measurement.
    • Environmental Protection: Consider IP-rated enclosures for harsh environments.
    • Mounting & Power Supply: Ensure it fits your installation needs and power availability.
    Existing reviews of Display Controller for Torque Sensor, RS485 Interface
    Some questions
    1. Is this controller compatible with the miniature rotary torque sensor? 2. Is the software included on the USB drive? 3. Can the software connect directly to the torque sensor without using the controller?
    From: Kenya | Date: 29/01/2026
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. Yes, the ATO-DPM-D056 is compatible with this miniature rotary torque sensor.
    2. Yes, the software is included on the USB drive. You can install the software by unzipping the program on the USB drive.
    3. No. The standalone torque sensor does not have communication capabilities; it needs to be used with a controller to achieve software connectivity.
    TEDS Sensor Controller
    I saw in the description that this sensor also has a TEDS version. What controller should I use with a 10 N sensor with TEDS?
    From: Chiles | Date: 26/09/2025
    Was this review helpful? Yes No (0/0)
    ATO Responded
    If you are configuring a TEDS sensor, we recommend the torque sensor display controller with an RS485 interface, SKU: ATO-DPM-D056. This product is more suitable for sensors with TEDS functionality.
    Compatible Accessories
    Which reaction torque sensors are compatible with the ATO-DPM-D056? I only need a range of approximately 1-15 Nm.
    From: Vicona | Date: 20/08/2025
    Was this review helpful? Yes No (0/0)
    ATO Responded
    This micro rotary torque sensor, SKU: ATO-TQS-D02, has a range of 0-15 Nm and can be used with the ATO-DPM-DY056 display controller. See the spec on: https://www.ato.com/micro-rotary-torque-sensor-5-nm
