    Force Torque Sensor, Flange, 0-20/30/50/100/200 Nm

    High precision force torque sensor is a static torque transducer, comes with flange mounting, IP65 protection level, 0-20/30/50/100/200 Nm capacity, suitable for mechanical arm joint torque force measurement, force detection, force value analysis tester and other torque force testing instruments.
    SKU: ATO-TS-DYJN-105
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Flanged force torque sensor for sale online. This torque transducer is available with high accuracy, strong anti-interference ability, IP65 protection level and 0-20/30/50/100/200 Nm capacity, which can be used to measure static, non-continuous rotating torque value.


    • Model: ATO-DYJN-105
    • Capacity: 0-200 N.m
    • Rated Output: 1.5±0.5%
    • Zero Balance: ±0.5%F.S.
    • Non-Linearity: ±0.5%F.S.
    • Hysteresis: ±0.5%F.S.
    • Repeatability: ±0.5%F.S.
    • Creep(30min): 0.3%F.S.
    • Temp Effect on Output: 0.3%F.S./10℃
    • Temp Effect on Zero: 0.1%F.S./10℃
    • Response Frequency: 10kHz
    • Material: Aluminum Alloy/Alloy Steel
    • Impedance: 700±5Ω
    • Insulation: ≥5000MΩ/100V DC
    • Working Voltage: 5-15V
    • Operating Temp Range: -20-80℃
    • Safe Overload: 150%
    • Maximum Overload: 200%
    • Cable Specifications: 3x2m
    • Cable Ultimate Pull: 10kg
    • TEDS: Contact Us

    Dimension (Unit: mm)

    Static torque sensor dimension

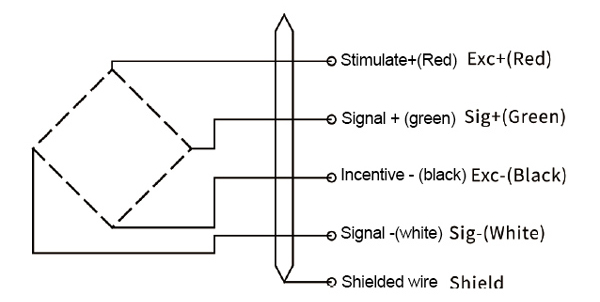

    Sensor Wiring Diagram

    Static torque sensor wiring diagram

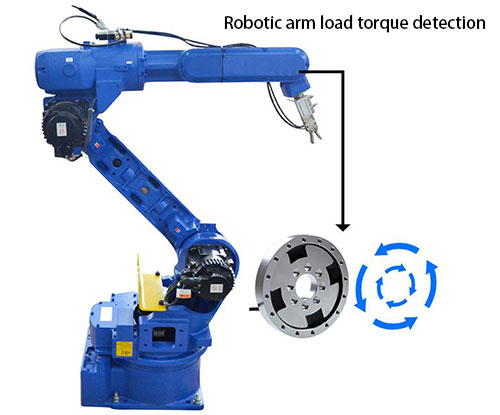

    Sensor Force Diagram

    Static torque sensor force diagram


    Static torque sensor applications

    Tips: Is a torque sensor the same as a torque transducer?

    Yes, a torque sensor and a torque transducer refer to the same type of device. Both terms are used to describe a device that measures and converts torque, which is the rotational equivalent of linear force, into an electrical signal that can be read and analyzed. The term "sensor" emphasizes the device's role in detecting or measuring torque, while "transducer" highlights its function in converting the physical quantity (torque) into an electrical signal. In practical usage, the terms are often used interchangeably.
