    Heavy Duty Connector, 16 Pin, 250VAC/500VAC, 16A

    $79.37

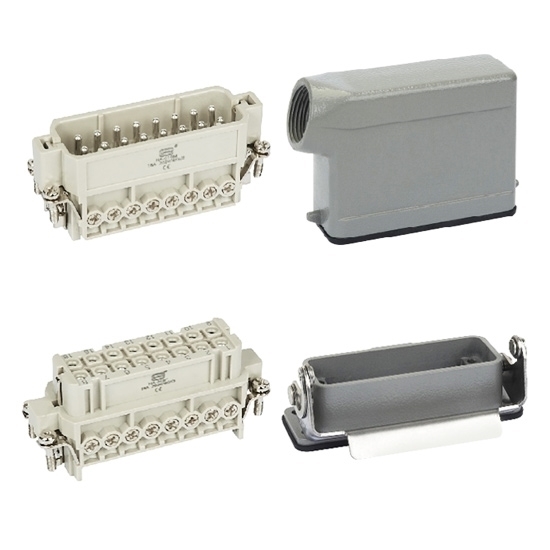

    16 pin heavy duty connectors have 16A working current and AC 250V/500V working voltage. There are 8 different shell items to select. Cheap heavy duty connector meets standard DIN EN 60 664-1, DIN EN 61 984. It also has the certificate of CCC, CE, ROHS, RU, CSA, TUV.
    SKU: ATO-HDCN-16P
    *
    Free Shipping Worldwide
    Delivery date: 6-20 days

    16 pin heavy duty connector with working voltage 250VAC / 500VAC and current 16A.

    Specification:

    Basic Model ATO-HDCN-HA-016-1 ATO-HDCN-HA-016-2 ATO-HDCN-HA-016-3 ATO-HDCN-HA-016-4 ATO-HDCN-HE-016-1 ATO-HDCN-HE-016-2 ATO-HDCN-HE-016-3 ATO-HDCN-HE-016-4
    Shipping weight 1kg
    Standard DIN EN 60 664-1, DIN EN 61 984
    Number of pins 16 pin + PE
    Certificate CCC, CE, ROHS, RU, CSA, TUV
    Inserts Item HA-016-M HA-016-M HA-016-M HA-016-M HE-016-M HE-016-M HE-016-M HE-016-M
    Working current 16A
    Working voltage 250V 250V 250V 250V 500V 500V 500V 500V
    Rated pulse voltage urms 4kV 4kV 4kV 4kV 6kV 6kV 6kV 6kV
    Pollution degree 3 (C)
    Insulation resistance ≥1010Ω
    Material Polycarbonate
    Working temperature Range -40℃~+125℃ (-40℉~+257℉)
    Flammability according to UL94 V0
    Working voltage according to UL / CSA 600V
    Insertion / withdrawal cycles ≥500
    Contacts Item HA-016-F HA-016-F HA-016-F HA-016-F HE-016-F HE-016-F HE-016-F HE-016-F
    Material Copper alloy
    Surface treatment Silver/ Gold plating
    Contact resistance ≤1mΩ
    Wiring form Screw connection
    Wire specification 0.75-2.5mm2 AWG 18-14
    Tightening torque 0.5N·m
    Shell Hood item H16A-TS-RO-M20 H16A-TG-RO-M20 H16A-TS-RO-M20 H16A-TG-RO-M20 H16B-TS-M25 H16B-TG-M25 H16B-TS-M25 H16B-TG-M25
    Hood thread M20 M20 M20 M20 M25 M25 M25 M25
    Housing item H16A-AG-LB H16A-AG-LB H16A-SGR-LB-2M20 H16A-SGR-LB-2M20 H16B-AG H16B-AG H16B-SGR-2M25 H16B-SGR-2M25
    Housing thread - - 2*M20 2*M20 - - 2*M25 2*M25
    Material Cast zinc Cast zinc Cast zinc Cast zinc Cast aluminum Cast aluminum Cast aluminum Cast aluminum
    Surface treatment Powder-coated, gray
    Interlocking element Interlocking method: metal elastic pressing, material: galvanized iron/ stainless steel Interlocking method: metal elastic pressing, material: galvanized iron
    Sealing element NBR
    Applicable temperature range -40℃~+125℃ (-40℉~+257℉)
    Flammability class V0
    Protection class IP65

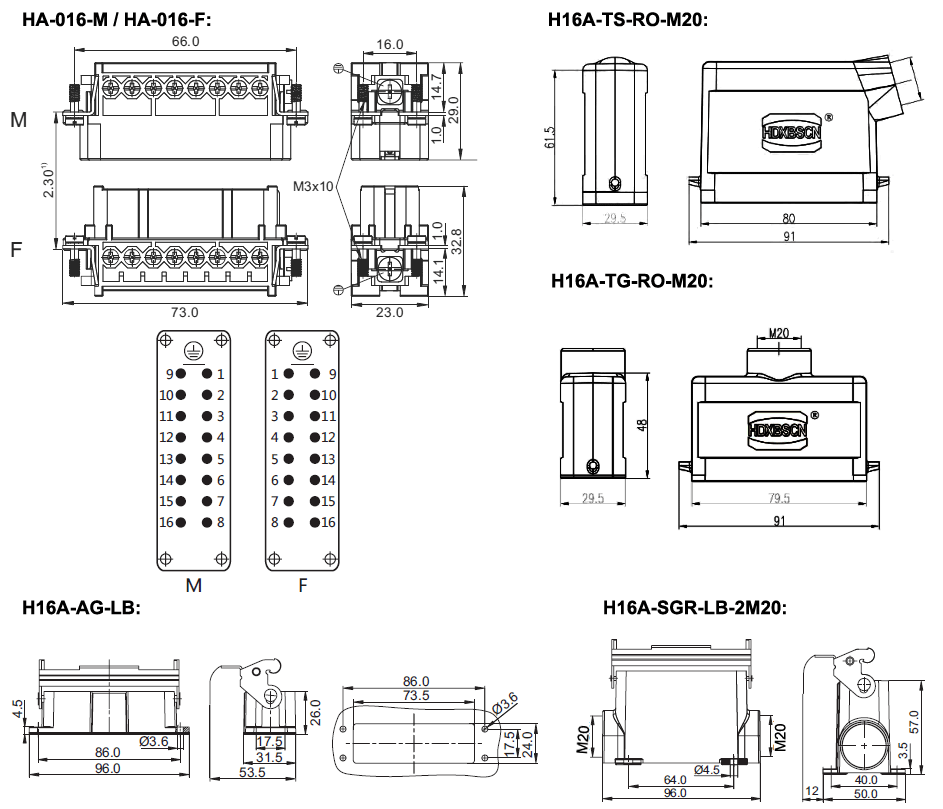

    Dimension for 16 pin 250VAC heavy duty connector (unit: mm):
    16 pin AC 250 volt heavy duty connector dimension

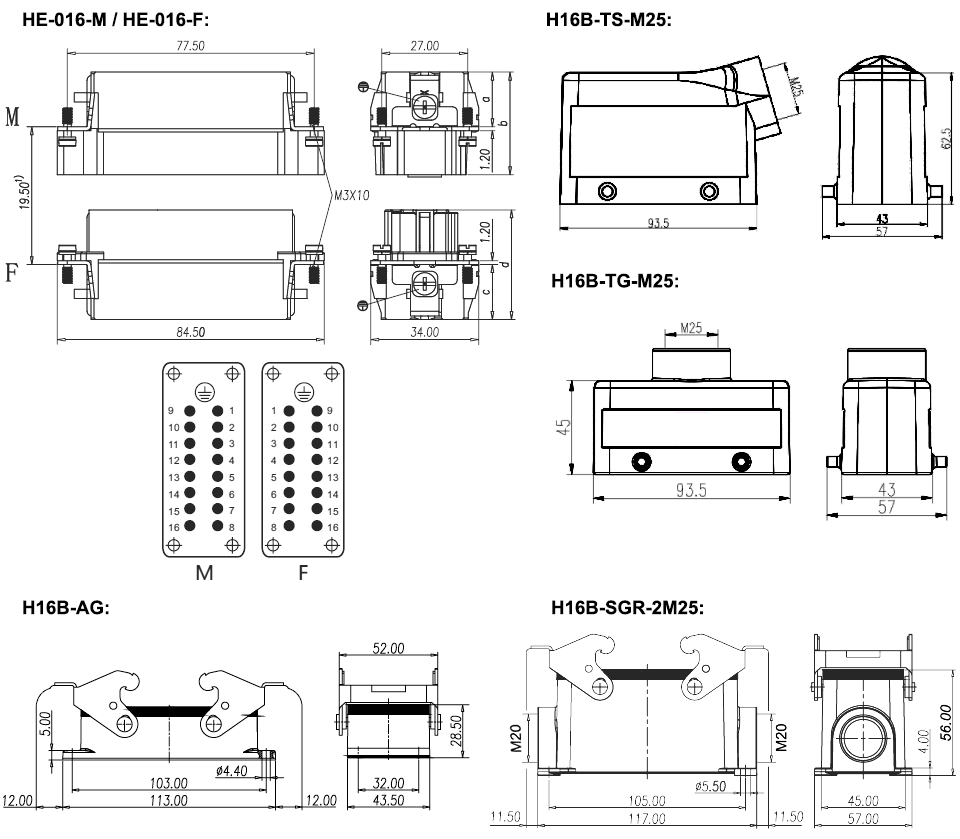

    Dimension for 16 pin 500VAC heavy duty connector (unit: mm):
    16 pin AC 500 volt heavy duty connector dimension
    Tips: 3 connection types of heavy duty connectors

    1. Screw terminal: Male and female inserts in rectangular heavy duty connectors are screw-connected and have locking devices, which are mainly used for the connection of electronic equipment and electronic control equipment. This connection form is reliable to use, but the assemble and unassemble speed is slow.
    2. Cold pressing terminal: The male and female inserts in the heavy duty connector are cold-pressed connection. When matched with tools such as cold-pressed needles and cold-pressed pliers, they can adapt to many complex scenarios and have reliable connections. But professional tools are needed.
    3. Cage clamp terminal: The male and female inserts in the heavy duty connector are connected by cage clamps. No special tools are required for connection and disassembly, and the operation is convenient.
