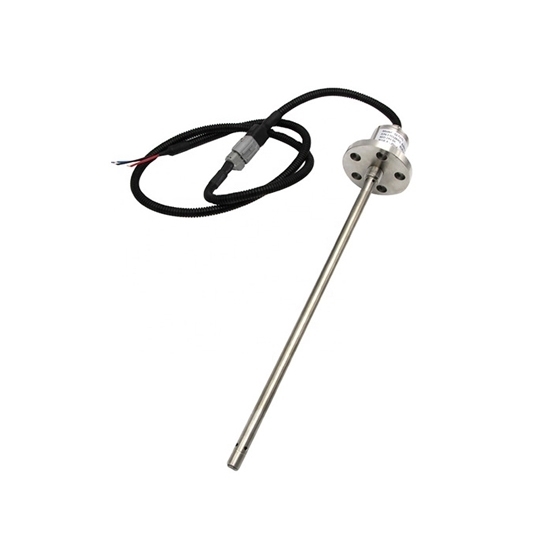

Capacitive Hydraulic Oil Level Sensor, Stainless Steel

ATO capacitive hydraulic oil level sensor is specially designed for non-conductive media such as hydraulic oil. It has a selectable measuring range of 100-1400mm, with an accuracy of ±1% and a resolution of 0.01mm, ensuring precise and stable measurement. Stainless steel level sensor has pressure resistance of -0.1~0.4MPa, and is suitable for a wide temperature environment of -35~70℃, featuring strong durability. It supports 5V/9-36VDC power supply, has a built-in self-calibration function, and can output multiple signals such as 4-20mA/RS485. Meanwhile, hydraulic level sensor is compatible with GPS to realize real-time oil level monitoring, combining practicality and intelligence.

Specification

Features

• Wide range of applicable liquid: Hydraulic level sensor can measure non-conductive liquids such as hydraulic oil, gasoline, diesel oil, kerosene, etc., and is also compatible with various media such as water, beer, chemical reagents, making it suitable for various fluid level scenarios.
• Accurate and stable measurement performance: It has a wide range coverage, with an accuracy of ±1% and a resolution of 0.01mm. Equipped with a self-calibration function, it can automatically calibrate without additional equipment, ensuring reliable measurement results.
• Durable design: Made of stainless steel, it is corrosion-resistant and has high strength. The pressure resistance range is -0.1~0.4MPa, suitable for a wide temperature environment of -35~70℃, and suitable for long-term working conditions of hydraulic systems.
• Flexible installation and signal compatibility: Capacitive oil level sensor supports customized standard 5-hole flange or M20×1.5 thread installation; it outputs multiple signals such as 4-20mA/0-5V/RS485/RS232, which is compatible with different equipment systems, and can also be connected to GPS to realize real-time monitoring of oil level.

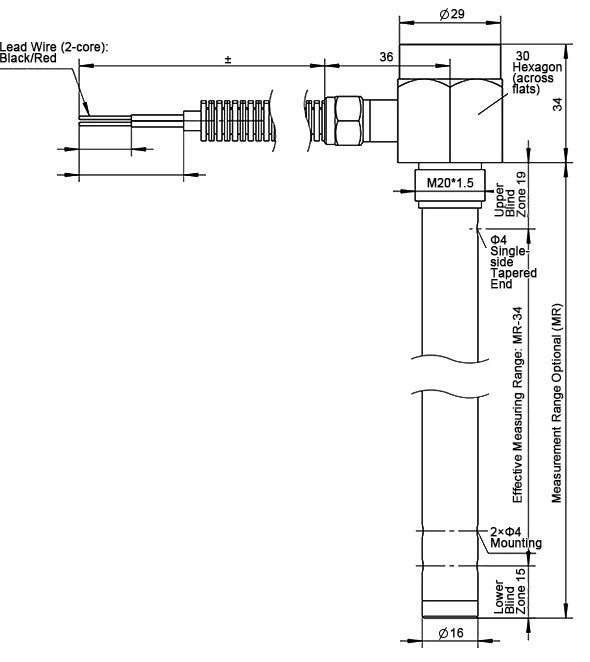

Dimension

Wiring Method

Tips: How to Install Capacitive Hydraulic Oil Level Sensor?

Capacitive Hydraulic level sensor offers exceptional installation versatility across industrial and vehicle applications: It can directly replace the factory-installed oil level sensor in commercial vehicles, construction machinery, and similar equipment, seamlessly fitting into the original tank mounting positions without additional modifications. Alternatively, it supports custom drilling installations on tank surfaces—ideal for retrofitted equipment or auxiliary tanks requiring new liquid level monitoring, and compatible with most metal or rigid plastic tank constructions.

To ensure a secure, leak-proof installation with long-term stability, follow this standardized process: First, drill a precise hole at the designated mounting area on the tank, apply a uniform layer of sealant, insert the rubber gasket, and fasten the matching flange firmly; this step is critical to prevent future fluid leakage. Next, fit the sensor with an O-ring (inspect the ring for damage before installation) and screw the sensor into the flange until the threads engage tightly. Then, connect the sensor wires according to the wiring specification to ensure correct signal transmission. Finally, attach the anti-tamper lock for enhanced security, and use cable ties to neatly secure the wires—this prevents cable abrasion from vibration, completing a reliable installation.
