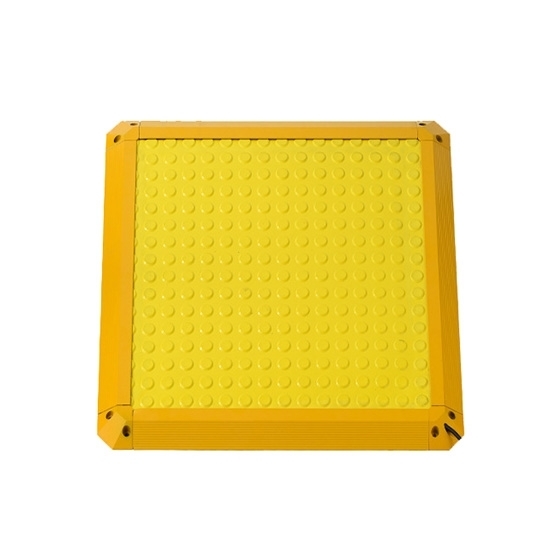

Industrial Rubber Safety Mat, 12mm, 24VDC

Typical application places of industrial rubber safety mats include: automatic induction doors, welding robots, rubber and plastic machinery, assembly machinery, material handling, packaging machinery, stamping machinery, etc.

Features

• The safety carpet has excellent corrosion resistance to various acids, alkalis, salts and other chemicals.
• Industrial safety mat is expected to work more than millions of times, ensuring long-term use.
• It uses special load-bearing rubber EPM/EPDM material with high tensile and tear properties and excellent wear resistance.
• The mat generates a switch signal after detecting sufficient pressure to achieve safe protection of the area.
• Industrial safety mat is used in conjunction with a dedicated controller to detect the working status of the safety mat, forming a safer protection system.

Specification

• Model: ATO-KCS4-L/W-P
• Size: Can be customized up to 2000*1000mm
• Pressure: Dynamic 500kg, Solid 800kg
• Surface material: Rubber (black/yellow)
• Ambient temperature: -10°C~+60°C (no ice or condensation)
• Mat thickness: 12mm
• Trigger force: Adult 30KG
• Corrosion resistance: Strong
• Weight: about 18kg (per square meter)
• Voltage: 24VDC
• Response time: ≤30ms
• Service life: More than millions of times
• Hardness Shore A: 60-70
• Certification: CE

Note: The output signal of the safety mat is NO by default. If you want to select normally closed (NC), you need to add a safety relay for safety mat to achieve it.

Dimension (mm)

Note: 1. The above dimensions are regular dimensions, other dimensions can be customized.

2. Safety mat dimensions can be customized within the range of 2000mmX1000mm.

Product composition

Installation example display

Applications

Tips: Inspection and maintenance of safety mats

Functional test

The safety function of the safety mat must be tested. The following conditions must be checked and met in advance: 1. The integrity of the safety mat with safety connection, and there are no defects in appearance. 2. The integrity of the cable, before installation, according to the electrical connection, use a multimeter to measure the continuity, and then step on it to measure the continuity.

Regular maintenance

Regularly inspect, maintain and test the appearance of the safety carpet: Check the fixation of the safety mat; check the rails and foundation; check the cable function. The carpet must be replaced in time when it is damaged or the parts are damaged.

Disassembly and disposal

The removal of the safety mat must be carried out under the condition of power off. And the disposal of the safety mat must be handled in an appropriate manner and in accordance with regulations.
