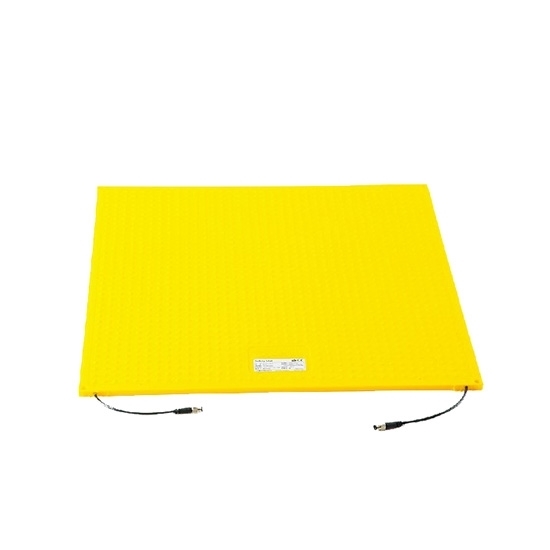

High Performance Safety Mat, 9mm, IP67

High-performance ultra-thin safety mats are suitable for use in factories, warehouses and other environments that require electrical safety, impact resistance and anti-slip.

Features

• The high-performance safety mat is made of special load-bearing PUR rubber.
• It is resistant to high temperature, wear, oil, corrosion, puncture (built-in 2mm thick high-flexibility metal plate), high tensile and tearing properties.
• The service life of the safety mat can reach more than millions of times.
• It can achieve regional safety protection by detecting sufficient pressure and generating a switch signal.
• Its typical application places include: automatic induction doors, welding robots, rubber and plastic machinery, assembly machinery, material handling, packaging machinery, stamping machinery, etc.
• High-performance safety mats are used in conjunction with dedicated controllers to detect the working status of the safety carpet, forming a safer protection system.
• Ultra-thin safety mats meet ENISO13856 requirements and have a CE mark.

Specification

• Model: ATO-KCS4-L/W-L
• Standard: EN ISO 13856
• Material: PUR (optional colors)
• Protection level: IP67
• Ambient temperature: -10℃~+55℃ (no ice or condensation)
• Mat thickness: 9mm
• Permitted weight: 2000N, 1862kpa (ground contact pressure of wheels (static load))
• Trigger force: Adult 30KG
• Corrosion protection: Strong
• Voltage: 24VDC
• Cable length: 14.5cm
• Response time: ≤30ms
• Service life: More than millions of times
• Hardness Shore A: 80
• Certification: CE

Note: The output signal of the safety mat is NO by default. If you want to select normally closed (NC), you need to add a safety relay for safety mat to achieve it.

Dimension (mm)

Note: 1. The above dimensions are regular dimensions, other dimensions can be customized.

2. Safety mat dimensions can be customized within the range of 2000mmX1000mm.

Product composition

Installation edge display

Applications

Tips: High-performance safety mat installation steps

Two ways of installation and fixing

• The four corners of the safety mat can be fixed with fixing nuts.
• You can choose to fix it with edge pressing and corner pressing according to the actual installation environment.

Installation steps

• Check whether the safety mat and accessories are complete.
• Place the aluminum alloy edge of the safety mat in the position where it needs to be installed.
• Place the corner of the floor mat in the corresponding installation position.
• Buckle the yellow edge of the safety mat in the corresponding position, fix it firmly, and the installation is completed.

Note:

When multiple safety mats are used in series, one end of each end of the safety mat needs to be extended, and the outlet wire is red and black.

The aluminum alloy edge of the spliced ​​floor mat has a notch and a hole at the wiring point. This edge is the edge on the outlet side of the floor mat.
