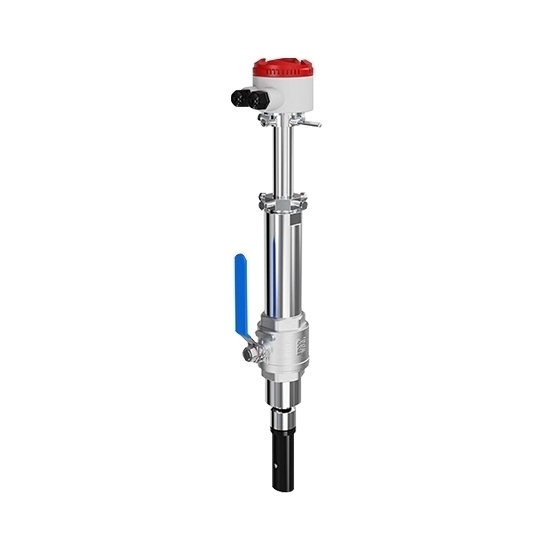

Insertion Electromagnetic Flow Meter, DN100-DN3000

$1,797.16

Reasonable price and high quality insertion type magnetic flow meter for sale online. The medium of insertion magnetic flowmeter is water. Working temperature of insertion electromagnetic flow meter between -20 ℃ and 70 ℃. It often used in petrochemical, electric power, metallurgy and textile.

SKU: ATO-FLOW-IEFM

Port Size *
Voltage *
Type *
Measured Medium and Temperature *

Qty:

Free Shipping Worldwide

Delivery date: 6-12 days

Overview

The insertion electromagnetic flow meter is a type of flowmeter divided by structure. When a conductive medium is flowing through, an induced voltage is generated.

Features:

The plug-in structure can be easily installed and disassembled without stopping water under low pressure or under pressure.
It adopts advanced low frequency square wave excitation. Zero stability, strong anti-interference ability and reliable work.
The flow measurement range is large. The full-scale flow rate in the pipeline under test can be arbitrarily set from 1 m/s to 10 m/s, and the output signal has a linear relationship with the flow rate.

Specification:

Model	ATO-LDGC-MIK
Port Size	DN100-3000 mm
Working Pressure	1.6 Mpa
Working Temperature	≤70℃
Upper Limit Range	1-10 m/s
Accuracy of Measurement	±2.5%
Conductivity	≥50%
Medium	water
Electrode Material	304, 304L, 316, 316L, Hastelloy alloy, titanium
Converter Output	4-20 mA output
Frequency Output	pluse output
Communication Output	RS485
Power Supply	24V DC, 220V AC
Maximum Distance	≤50m
Cable	RVVP double core shielded cable or STT3200 four core three shield cable
Compact Type	IP65 / IP68
Buried Depth	Not deeper than 5 meters
Repetitiveness	0.0016
Maxium Measurement Error	±0.1 ℃

Structure:

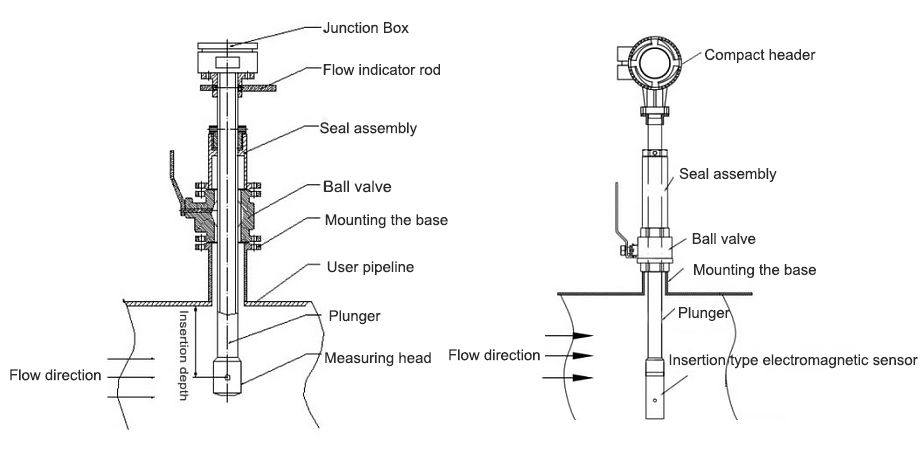

Structure insertion electromagnetic flow meter

Dimension (Unit: mm)

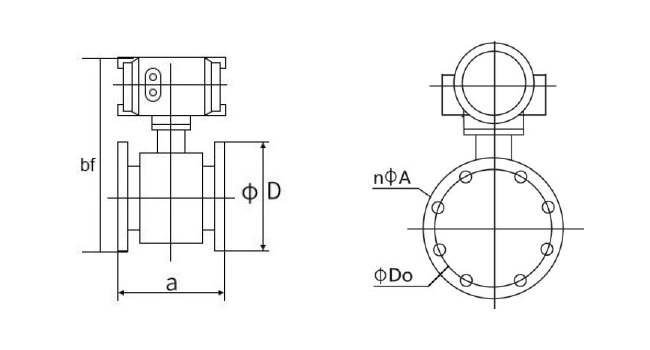

Insertion electromagnetic flow meter dimension

DN	a	bf	D	Do	n*A	Pressure Resistance
15	200	326	95	65	4*14	1.6 MPa
20	200	326	105	75	4*14
25	200	316	115	85	4*14
32	200	331	135	100	4*18
40	200	339	145	110	4*18
50	200	358	160	125	4*18
65	200	370	180	145	4*18
80	200	389	195	160	8*18
100	250	410	215	180	8*18
125	250	440	245	210	8*18
150	300	469	280	240	8*23
200	350	522	335	295	12*23
250	450	824	405	355	12*25
300	500	624	440	400	12*23	1 MPa
350	550	1029	500	460	16*23
400	600	737	565	515	16*25
450	600	786	615	565	20*25
500	600	839	670	620	20*25
600	600	944	780	725	20*30
700	700	1052	895	840	24*30
800	800	1164	1015	950	24*33
900	900	1264	1115	1050	28*33
1000	1000	1374	1230	1160	28*36
1200	1200	1589	1405	1340	32*33	0.6 MPa

Tips: Why Should Maintain Insertion Electromagnetic Flow Meter?

The insertion electromagnetic flow meter is simple to operate, but long-term use will still make the electrode stain or damage, so to ensure the accuracy of measurement, regular maintenance of the insertion electromagnetic flowmeter is very necessary. For the plug-in electromagnetic meteor meter, each maintenance must be closed system, the liquid in the pipeline is emptied, can be disassembled.
