    Float Switch Level Sensor, Stainless Steel/ Plastic

    5 out of 5 based on 1 reviews | Write a review
    $61.43
    Stainless steel and plastic float switch level sensor is composed magnetic spring switch and floating ball to detecting the position of the liquid level. Vertical mounted, contact power rating 50W.
    *
    SKU: ATO-ES12010-2A1
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Float liquid level switch is compact size and highly reliable, which is widely applied in water fountain, air condition, humidifier, bathroom equipment, sale machine, oil tank and chemical liquid level control.

    Specification

    Model ATO-ES12010-2A1
    Basics Material (Optional) Stainless Steel/ Plastic
    Float Pressure 0.7 MPa
    Applicable Temperature -40 ~ +125 ℃
    Withstand Voltage 1000V/10S
    Terminal Tensile Strength 3.6kg
    The Contact Resistance 170mΩ
    Insulation resistance 2000mΩ/ 500V
    Parts Float φ28*28mm
    Float Ball 10110
    Cap Nut M10
    O-ring φ15mm * φ10mm*2
    E-ring φ14.2mm * φ7.2mm*1.4
    Wire 300mm
    Reed Switch Technical Parameters Contact Form (Optional) SPST 1NO/ 1NC
    Contact Power Rating 50W
    Max Switching Voltage DC350V/ AC300V
    Breakdown Voltage 600VDC
    Max Switching Current DC0.7A/ AC0.5A
    Max Carry Current 2.5A
    Max Contact Resistance 100mΩ
    Min Insulation Resistance 1010Ω
    Get an electric shock life 107

    Dimension (Units: mm)

    Dimensions of Float Switch Level Sensor

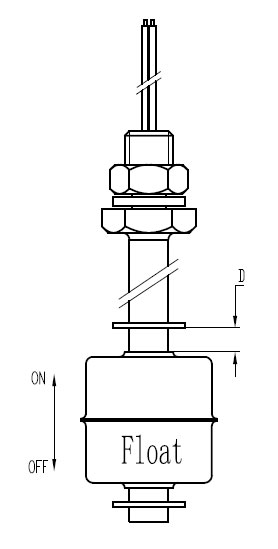

    Movement Explanation

    When the float down to the D position, in the position between D=3±1mm, the reed switches will be closed. Float ball reverses the opposite action.

    Movement Explanation of Float Switch Level Sensor

    Tips: What is plastic float level sensor?

    Plastic float level sensor is a kind of simple structure, easy to use liquid level switch, which does not need power supply and is no complex circuit. It is widely used in shipbuilding industry, generator equipment, petrochemical industry, food industry, water treatment equipment and so on.

    Plastic float level switch is mainly composed of magnetic reed switch and floating ball, and there are magnetic materials in the floating ball. Set one or more of the magnetic reed switch in the airtight nonmagnetic metal or plastic tube, and then put the conduit through one or more of the floating balls. The floating ball will be up or down as liquid. In short, the float level switch produces open and close action through the ball closing to the beginning of the magnetic spring contact for liquid level control or indication.

    Existing reviews of Float Switch Level Sensor, Stainless Steel/ Plastic
    Works very well.
    I used this stainless steel float switch with a small 4 watt submersible water pump. Good construction. Simple and well-built for the price. Easy to set up. Installed about 1 month ago and I have no problems as of now. So far so good. Works very well.
    From: Carla | Date: 13/04/2022
    Was this review helpful? Yes No (0/0)
    Load more reviews...
    Write your review for Float Switch Level Sensor, Stainless Steel/ Plastic
    • Only registered users can write reviews
    • Bad
    • Excellent
    Customers who bought this item also bought

    Custom Order

    Pay for custom orders, or extra amount of existing orders.
    Indicate the item specification you pay for, and specify PI / PO number if you have.

    Ultrasonic Level Sensor, Output 4-20mA/1-5V/RS485, 0-40M

    $475.98
    SKU: ATO-LEVS-U40M
    Ultrasonic level sensor has high accuracy 0.3%FS and measuring range 0-5m, 0-10m, 0-15m to 0-40m. It also adopts integrated structure and mainly consists of OLED display, waterproof connectors and ultrasonic probe. Ultrasonic level sensor using advanced non-contact ultrasonic measurement technology can be used for liquid/solid/powder level of tapered/spherical tank, tapered feed outlet tank, sewage tank, river, lake, etc. It has optional output signal 4-20mA, RS485, HART, 2 relays or 3 NPN, optional power supply DC 12-16V, DC 24-28V, AC 220V or built-in battery.

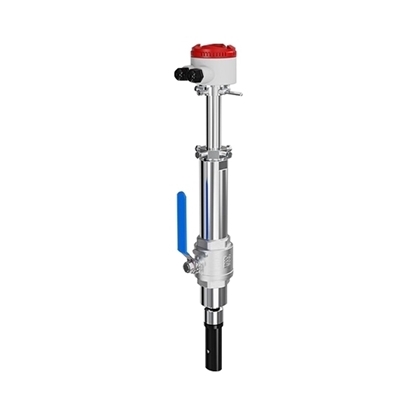

    Insertion Electromagnetic Flow Meter, DN100-DN3000

    $1,797.16
    SKU: ATO-FLOW-IEFM
    Reasonable price and high quality insertion type magnetic flow meter for sale online. The medium of insertion magnetic flowmeter is water. Working temperature of insertion electromagnetic flow meter between -20 ℃ and 70 ℃. It often used in petrochemical, electric power, metallurgy and textile.

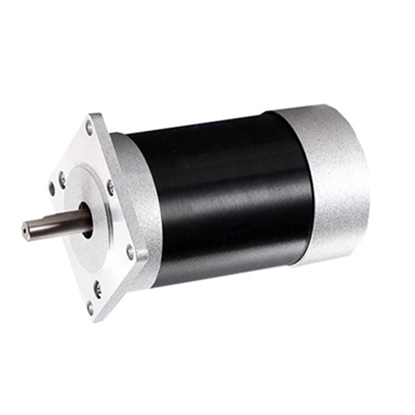

    100W Brushless DC Motor, 12V/24V, 0.32 Nm

    $178.58
    SKU: ATO-BLDC-100R3
    100W BLDC motor for sales at affordable price. 3 phase electric brushless motor with 3000 rpm rated speed, 0.32 Nm holding torque and peak torque up to 0.96 Nm. Combines with BLDC controller/ gearbox providing higher torque at 12V or 24V DC.

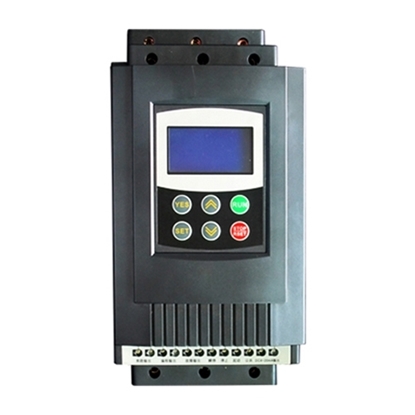

    10 hp (7.5 kW) Soft starter, 15 A, 3ph 220v/400v/480v
