    Laser Diameter Gauge, Single Axis, 1-100mm

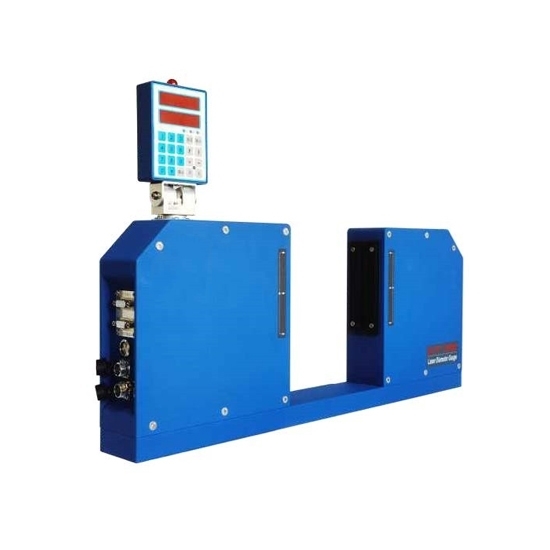

    Cost-effective laser diameter gauge with a measurement range of 1mm to 100mm is a single-axis device designed for determining the diameter of cylindrical objects such as wires, cables, tubes, and rods. Utilizing laser technology, it precisely measures the diameter by assessing the shadow cast by the object as it passes through the laser beam.
    SKU: ATO-LDG-100A
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Single axis laser diameter gauges are highly accurate and precise, often capable of measuring diameter sizes with micrometer-level tolerances. These laser measuring devices are widely utilized in various industries, including wire and cable manufacturing, metalworking, plastics extrusion, and textile production.


    • Laser diameter gauge is a measurement of diameter value, with a multi-angle display of the operation panel.
    • This laser diameter measuring equipment adopts fully automatic closed-loop control technology and advanced DSP processing technology.
    • The measurement process is not affected by speed and vibration.
    • It comes with an over-tolerance alarm function.
    • It adopts high-quality stainless steel fasteners, an aluminum die-casting shell, a plastic spraying surface, and good corrosion resistance.
    • RS232/485/MODBUS protocol communication interface.


    Model ATO-CJY-100A
    Measuring Range 1-100mm
    Measuring Accuracy ±10μm±0.008%Dz mm (Dz is the actual diameter of the measured object)
    Resolution Ratio 0.001mm
    Scanning Speed 1400 Times Scanning Cycle/Second
    Power Supply 100~240V AC, 1A
    Working Frequency 50/60Hz
    Display Method Two-Row 5-Digit Pipe Display
    Light Source Second Generation Visible Laser, Wavelength 650nm
    Working Principle Non-Contact Laser Scanning
    Data Collection and Analysis Support (Need to connect to an external computer and install related software)
    Out-of-Tolerance Alarm Function Dual relay contact output, upper and lower deviation signals are output separately (External sound and light alarm 24V DC and below)
    Working Temperature 0~45℃
    Relative Humidity ≤85%RH (No Condensation Water)
    Other Environmental Requirements The air does not contain corrosive gases, serious volatile oils, water vapor and dust.
    Power Consumption ≤15W (with Adapter + 40W)
    Communication Mode Communication Method: Use RS485 interface, MODBUS RTU protocol/TCP protocol (Ethernet) to communicate with other devices
    Protection Grade IP65
    Dimension 575*64*378mm (L*W*H)
    Weight 7.5kg

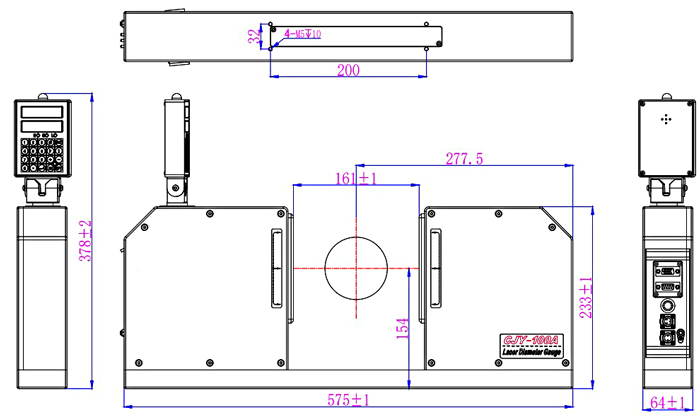

    Dimension (Unit: mm)

    Laser diameter gauge 100mm dimension

    Tips: How to choose a suitable laser diameter gauge?

    There are several key factors to consider when choosing a suitable laser diameter gauge:

    1. Measuring range: Make sure the measuring range of the instrument covers your actual needs, including both the minimum and maximum diameters.
    2. Measuring accuracy: Choose a laser diameter measuring instrument with suitable measuring accuracy based on the specific requirements of the application. High-precision measuring instruments are usually more expensive, but they are necessary in demanding applications.
    3. Response speed: In dynamic measurements, the response speed is an important factor to ensure that the instrument can capture rapidly changing diameters in real time.
    4. Environmental adaptability: Consider the adaptability of the instrument in different working environments, such as temperature, humidity, vibration, etc.
    5. Data output and processing: Check the data output options and interfaces of the instrument to ensure that it is compatible with your data acquisition and processing system.
