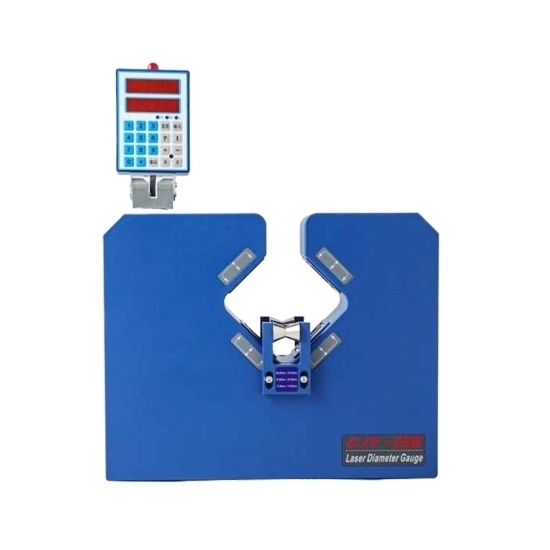

    Laser Diameter Gauge, Dual Axis, 0.1-25mm

    Laser diameter gauge is a non-contact measurement device, with a measuring range from 0.1mm to 25mm, used to precisely determine the diameter of cylindrical objects such as wires, cables, tubes, and rods. Dual axis laser diameter gauge is non-destructive and non-contact, which can measure delicate or sensitive materials without causing damage.
    SKU: ATO-LDG-25B
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Dual axis laser diameter gauges have high accuracy and precision, often capable of measuring diameters down to micrometer-level tolerances. Laser diameter measuring devices are widely used in various industries such as wire and cable manufacturing, metalworking, plastics extrusion, and textile production.


    • Laser diameter gauge is a measurement of diameter value, with a multi-angle display of the operation panel.
    • This laser diameter measuring equipment adopts fully automatic closed-loop control technology and advanced DSP processing technology.
    • The measurement process is not affected by speed and vibration.
    • It comes with an over-tolerance alarm function.
    • It adopts high-quality stainless steel fasteners, an aluminum die-casting shell, a plastic spraying surface, and good corrosion resistance.
    • RS232/485/MODBUS protocol communication interface.


    Model ATO-CJY-25B
    Measuring Range 0.1-25mm
    Measuring Accuracy ±2μm±0.008%Dz mm (Dz is the actual diameter of the measured object)
    Resolution Ratio 0.001mm
    Scanning Speed 1400 Times Scanning Cycle/Second
    Power Supply 100~240V AC, 1A
    Working Frequency 50/60Hz
    Display Method Two-Row 5-Digit Pipe Display
    Light Source Second Generation Visible Laser, Wavelength 650nm
    Working Principle Non-Contact Laser Scanning
    Data Collection and Analysis Support (Need to connect to an external computer and install related software)
    Out-of-Tolerance Alarm Function Dual relay contact output, upper and lower deviation signals are output separately (External sound and light alarm 24V DC and below)
    Working Temperature 0~45℃
    Relative Humidity ≤85%RH (No Condensation Water)
    Other Environmental Requirements The air does not contain corrosive gases, serious volatile oils, water vapor and dust.
    Power Consumption ≤15W (with Adapter + 40W)
    Communication Mode Communication Method: Use RS485 interface, MODBUS RTU protocol/TCP protocol (Ethernet) to communicate with other devices
    Protection Grade IP65
    Dimension 320*92*402mm (L*W*H)
    Weight 5.2kg

    Dimension (Unit: mm)

    Laser diameter gauge 25mm dimension

    Tips: How does a laser diameter gauge work?

    A laser diameter gauge is a measuring instrument used to accurately measure the diameter of an object. Its working principle is based on a laser beam and photoelectric detection technology. The following are its main working steps:

    1. Laser emission: The laser in the laser diameter gauge emits a parallel laser beam. This beam is usually red or green, with high linearity and low divergence, ensuring the accuracy of the measurement.
    2. Object occlusion: The object to be measured is placed in the path of the laser beam, causing part of the laser beam to be blocked by the object. At this time, a shadow area of ​​the beam will be formed on both sides of the object.
    3. Photoelectric detection: After the laser beam passes through the object to be measured, it reaches the photoelectric detector. The photoelectric detector converts the received light signal into an electrical signal. Due to the occlusion of the object, the light signal received by the photoelectric detector will change, forming two obvious edge signals.
    4. Signal processing: The signal processing unit in the instrument processes the electrical signal output by the photoelectric detector and determines the part of the object blocked by the object by identifying the edge position of the light signal. By measuring the distance between the two edges, the diameter of the object can be calculated.
    5. Data output: The calculated diameter value is output through the display screen or data interface for the user to read or further process.

    Laser diameter gauges have the advantages of non-contact, high precision and fast response, and are widely used in industrial production, quality control and scientific research. For example, in the manufacturing industry, it can be used to detect whether the diameter of wires, cables, pipes, etc. meets the specifications. This measurement method avoids the errors and wear problems that may be caused by traditional contact measurement, and improves the accuracy and efficiency of measurement.
