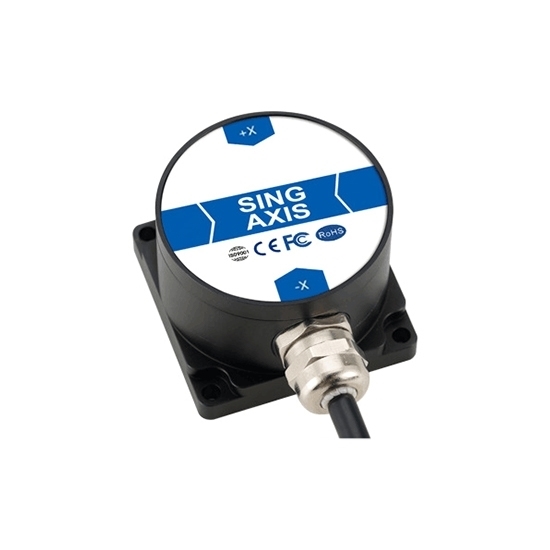

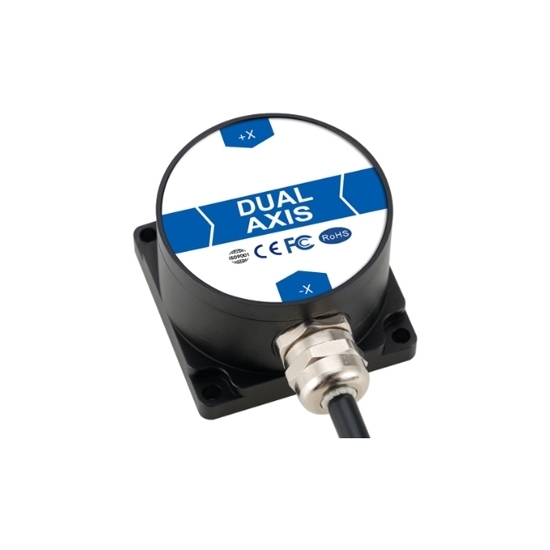

MEMS Inclinometer Sensor, Analog Output, 4-20mA/ 0-10V

Write a review

$196.76

Buy MEMS inclinometer sensor, analog output can be selected from 0~5V, 0~10V and 4-20mA, etc. to adapt to the needs of different systems, and the measuring range can be optional ±10°, ±30°, ±60° and ±90°. Its accuracy is as high as 0.25°, with long time stability and low temperature drift, 0.2 seconds start-up time to achieve fast response, suitable for dynamic environment.

Measuring Range *
Output Signal *

SKU: ATO-IMS-LVT

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Document

Analog output MEMS inclinometer sensor for sale, high-precision solutions (0~5V/ 0~4.5V/ 0~10V/ 0~20mA/ 0~24mA/ 4-20mA output signals can be selected), with excellent long-term stability (≤ 0.3 °). The tilt sensor has excellent impact resistance (2600g), IP67 waterproof rating, wide temperature operating range (-40℃ to +85℃) and rugged aluminum alloy housing, equipped with standard 1.5m abrasion-resistant cable for easy installation.

Specifications

Model	ATO-LVT410T	ATO-LVT418T
Measuring Range	±10°/±30°/±60°/±90° (optional)
Output Signal	0~5V/0~4.5V/0~10V (optional)	0~20mA/0~24mA/4-20mA (optional)
Measuring Axis	X axis
Zero Temperature Drift	±0.05°/°C
Sensitivity Temperature Coefficient	≤200ppm/°C
Zero Offset	0~5V output -2.5V	0~20mA output 10mA
	0~10V output -5V	0~24mA output 12mA
	/	4-20mA output 12mA
Frequency Response	DC response 100Hz
Resolution	Normal width 5Hz, 0.05°
Accuracy	0.25°
Long Term Stability	≤0.3°
Power-up Time	0.2s
Response Time	0.01s
Average Operating Time	≥55000 hours/trip
Shock Resistance	2600g, 0.5ms,3 times/axis
Vibration Resistance	10grms, 10~1000Hz
Insulation Resistance	≥100MΩ
Supply Voltage	9~36V
Working Current	40mA
Output Load	Resistivity: 10kΩ	0~500kΩ
	Capacitance: 20nF	/
Operating Temperature	-40℃~+85℃
Storage Temperature	-55℃~+100℃
Housing Material	Aluminum alloy with matte oxidation
Mounting	Three M4 screws
Waterproof Rating	IP67
Cable	Standard 1.5 meter length, abrasion resistant, oil resistant, wide temperature range, shielded cable 6*0.3mm2
Weight	55g (without box)

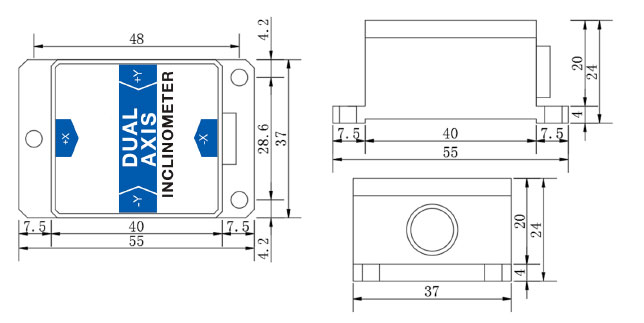

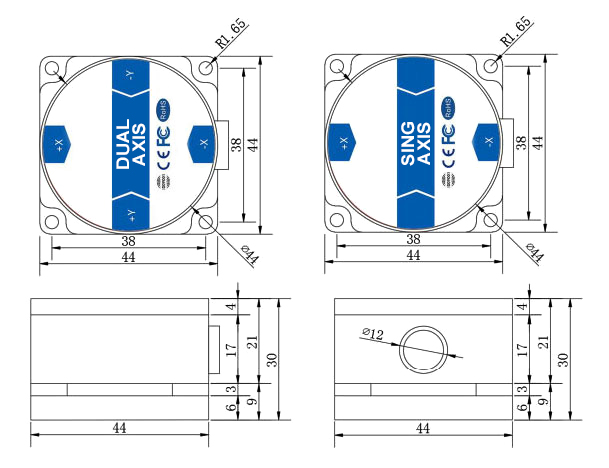

Dimension (unit: mm)

MEMS inclinometer sensor size

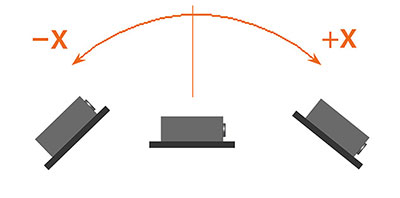

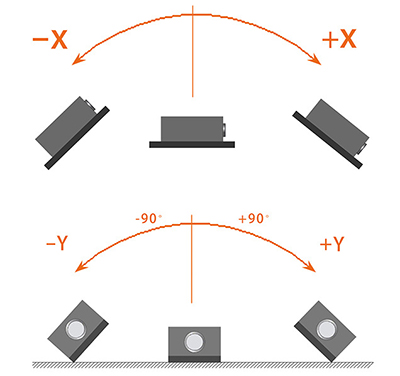

Measuring of Axial Direction

MEMS inclinometer sensor measuring axial directions

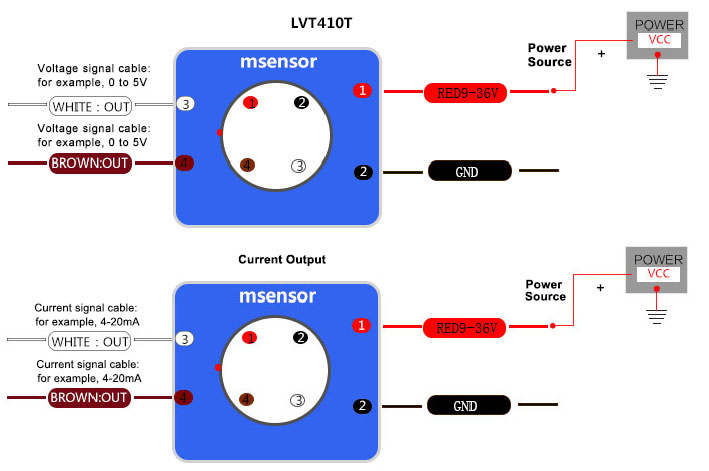

Wiring Diagram

MEMS inclinometer sensor wiring diagram

1	2	3
Red	Black	White
VCC (power positive)	GND (power negative)	Out X

Application

MEMS inclinometer sensor application

Tips: MEMS inclinometer sensor voltage output and angle calculation formula

Inclination angle= Sensitivity *(Vout - Voffset)

The current inclination angle

Vout: Sensor output voltage value, unit V

Voffset: Voltage output from the sensor at zero position (usually 2.5V).

Sensitivity: Sensor sensitivity: Inclinometer sensor sensitivity is the ratio of the corresponding voltage change when the sensor tilt angle changes, e.g. if the sensor range is ±90° and the corresponding voltage change is 0-5V, then the sensor sensitivity is 36.
