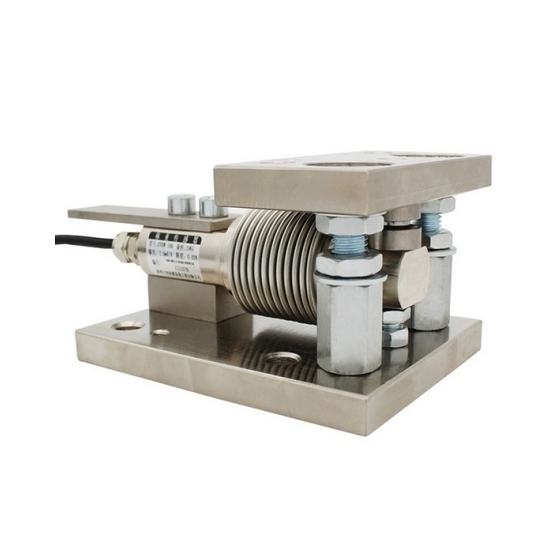

Mini Load Cell Weigh Module, Stainless Steel, 10kg/50kg to 500kg

This compact load cell weighing module is built for long-term industrial performance with stainless steel, 1kHz response frequency, 350Ω bridge resistance, and 5–15V excitation. Suitable for material batching, storage tanks, and container monitoring, it delivers reliable operation with easy installation and minimal maintenance.Buy this load cell module now high-precision weighing.

Specification

Featuers

1. High-Strength Stainless Steel Construction: Built with premium stainless steel / 42CrMoA alloy steel, this load cell module provides outstanding corrosion resistance, high mechanical strength, and excellent fatigue resistance. The rugged construction ensures long-term reliability and stable weighing performance in demanding industrial environments.
2. Compact Anti-Tip Weigh Module Design: The compact weigh module features a robust anti-tip structure that enhances equipment stability while simplifying installation and maintenance. It can be easily integrated into tanks, hoppers, silos, and other industrial weighing systems with minimal installation space.
3. High-Precision Load Measurement: This load cell delivers 2.0±0.002mV/V rated output with 0.3% F.S. non-linearity, hysteresis, and repeatability. The high-precision weighing module ensures reliable load measurement for batching, process control, and inventory monitoring.
4. 150% Safe Overload Protection: The load cell module is engineered with 150% safe overload and 200% ultimate overload capacity to withstand unexpected overload conditions. This protective design helps prevent sensor damage, improves operational safety, and extends the service life of the weighing system.
5. Fast 1kHz Response & Stable Output: With a 1kHz response frequency, this weighing module captures load changes quickly while maintaining stable signal output. Combined with low temperature drift and a 350Ω bridge resistance, it provides consistent performance for both static and dynamic weighing applications.
6. Ideal for Various Applications: Designed for tank weighing, hopper weighing, silo weighing, container weight monitoring, material batching, inventory management, and process control, the load cell module provides accurate and dependable load measurement across a wide range of industrial applications.

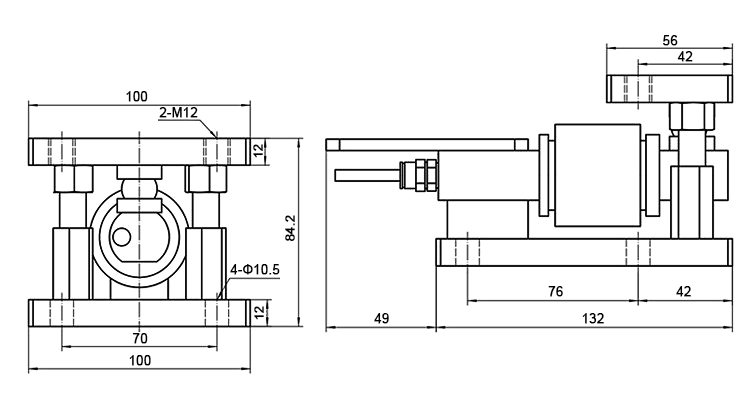

Dimension (unit: mm)

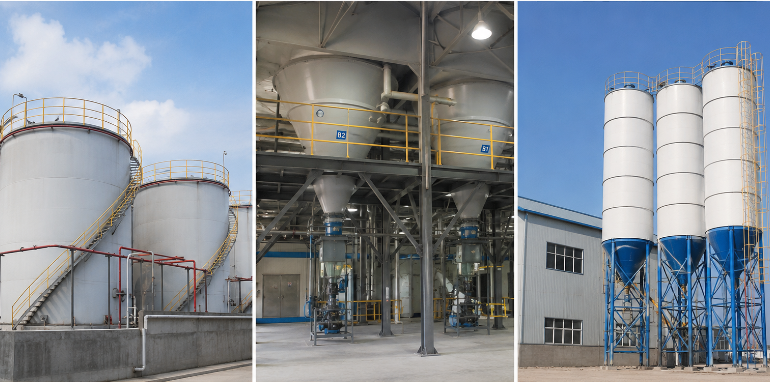

Application

The mini load cell module is widely used in tank weighing systems, hopper weighing systems, silo weighing systems, and container weighing applications. With stable load measurement and durable construction, the weigh module is ideal for material batching, storage management, and industrial process control, ensuring reliable performance in demanding operating conditions.

Tips: Why are stainless steel load cell modules recommended?

Stainless steel load cell modules are recommended because they provide excellent strength, corrosion resistance, and long-term stability in demanding industrial environments. Compared with carbon steel, stainless steel better withstands moisture, chemicals, washdown procedures, and outdoor exposure, making it ideal for food processing, pharmaceuticals, chemical plants, and other harsh applications. Its high mechanical strength also helps the load cell module maintain measurement accuracy under continuous loading and vibration. In addition, stainless steel resists rust and surface degradation, reducing maintenance requirements and extending the service life of the load cell system, resulting in lower lifetime operating costs and more reliable weighing performance.
