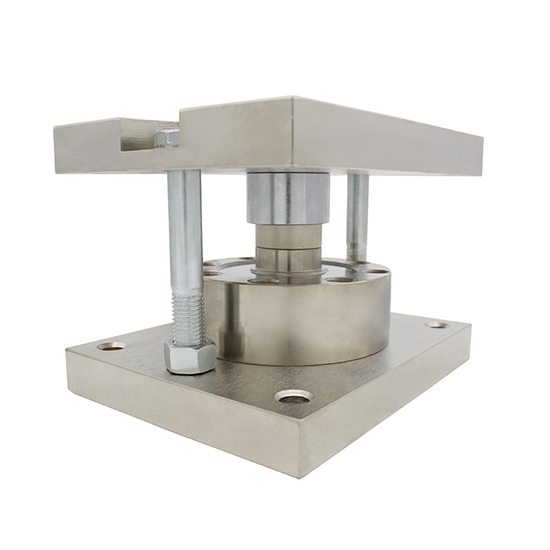

Pancake Load Cell Weighing Module, 500kg/1 ton/10 ton to 100 ton

Designed for industrial weighing, this load cell module adopts alloy steel/stainless steel with IP67 waterproof sealing and 150% safe overload for great durability. Easy to install and stable to run, it fits silos, tanks, reactors and weighing systems. Upgrade your process weighing system with this high-quality load cell module.

Specification

Features

1. High-Accuracy: This pancake load cell module delivers precise and repeatable measurement with 2.0±0.002mV/V output sensitivity, 0.05% F.S. non-linearity, and 0.03% F.S. repeatability, ensuring reliable performance in industrial weighing and force measurement applications.
2. Heavy-Duty Construction: Manufactured from high-strength alloy steel/stainless steel, the skope type load cell module offers excellent mechanical strength, wear resistance, and corrosion resistance for long-term operation in harsh industrial environments.
3. Reliable Overload Protection: This industrial load cell module provides 150% safe overload and 200% ultimate overload capacity, helping protect the load cell sensor from accidental shock loads and extending service life.
4. Easy Installation and Stable Operation: Featuring a robust support structure, the load cell weighing module is easy to install, resistant to tipping, and simple to maintain, making it ideal for integration into tanks, silos, and automated weighing equipment.
5. Versatile Applications: This pancake load cell weighing module is widely used in silo weighing systems, reactor weighing, tank weighing, packaging scales, container weighing, and other industrial process weighing and control systems, delivering dependable measurement accuracy across diverse applications.

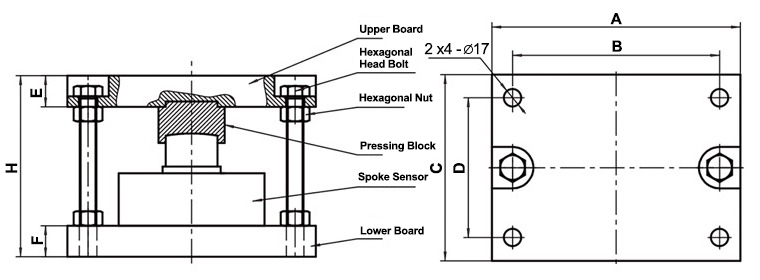

Dimension (unit: mm)

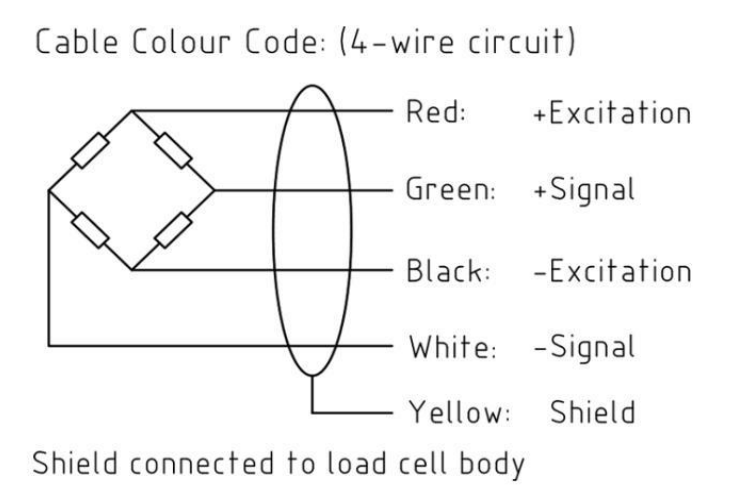

Wiring

Tips: How do I choose the right pancake load cell capacity?

To select the right pancake load cell capacity, first determine the maximum load the system will measure, including the weight of the vessel, platform, or fixture and any additional dynamic or impact loads. It is generally recommended to choose a load cell module with a rated capacity 20%–30% higher than the normal operating load to maintain measurement accuracy and provide an adequate safety margin. With capacities ranging from 500kg to 100 ton, ATO pancake load cell modules can be matched to applications such as tank weighing, silo weighing, industrial scales, and process control systems while ensuring reliable long-term performance.
