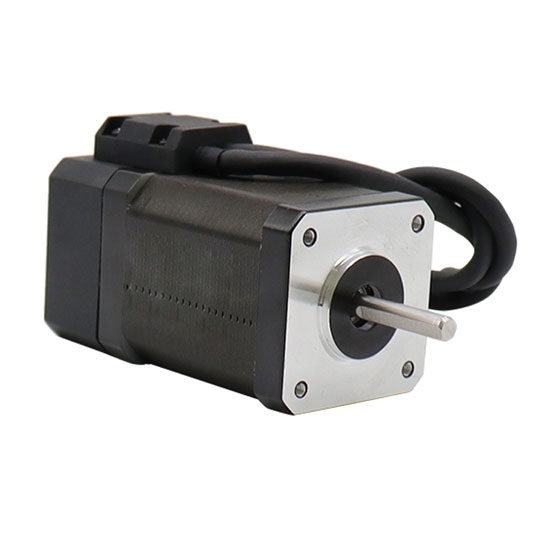

    Nema 17 Closed Loop Stepper Motor, 2 Phase, 2A, 0.5N·m

    5 out of 5 based on 3 reviews | Write a review
    $85.99
    Factory price Nema 17 closed loop hybrid stepper motor with encoder for CNC machine, 3D printer and robot arm. 2 phase 4 wire, rated current 2A, step angle 1.8°, full step and no load, motor length 68mm, 5mm shaft size, holding torque at 0.5N·m.
    SKU: ATO-STEP-17CL200
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Closed loop bipolar stepper motor is a permanent magnet electric motor that converts electrical pulse signal into corresponding angular displacement or linear displacement. It is widely used in electronics manufacturing, sewing machine, semiconductor equipment, laser cutting, textile machinery and so on.

    Physical Specification

    • Model Number: ATO-FY42EL200BC1
    • Matched the Driver Model: ATO-FYDB504T
    • Flanged Size: 42 x 42mm (Nema 17)
    • Motor Length: 68mm
    • Shaft Diameter: 5mm
    • Number of Leads: 4 wire
    • Weight: 0.36kg

    Electrical Specification

    • Motor Type: Bipolar Closed Loop Stepper
    • Step Angle: 1.8°
    • Rated Current: 2A
    • Holding Torque: 0.5N·m (50 N·cm, 72 Oz.in)
    • Phase Resistance: 1.35Ω
    • Phase Inductance: 2.8mH
    • Rotor Inertia: 77g·cm2

    Dimensions (Unit: mm)

    L=68mm

    Dimensions of Nema 17 2 Phase Closed Loop Stepper Motor

    Wiring Diagram

    Wiring Diagram of Nema 17 2 Phase Closed Loop Stepper Motor

    Speed-Torque Curve Diagram

    Speed Torque Curve Diagram of Nema 17 2 Phase Closed Loop Stepper Motor

    Tips: Reasons for stepper motor out of step

    • The speed is set too high and the torque is not enough.
    • The voltage is unstable during high-speed operation, so that the input current sometimes does not reach the rated current. It causes the output torque to drop, and finally leads to out of step.
    • The speed rises or falls too fast, causing the loss of step.
    • Excessive external resistance.
