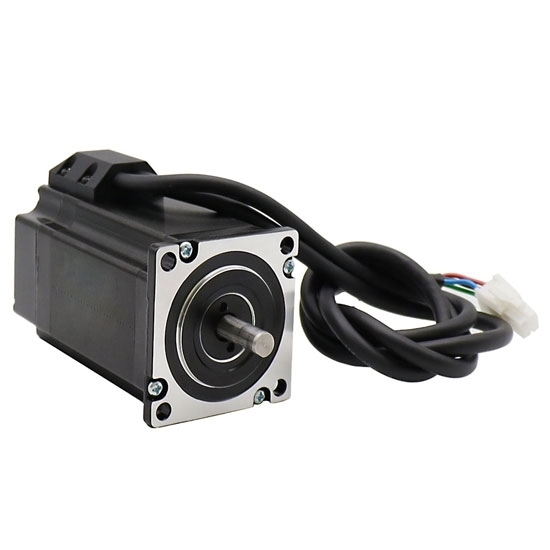

    Nema 23 Closed Loop Stepper Motor, 2 Phase, 5.2A, 2.2N·m

    5 out of 5 based on 5 reviews | Write a review
    Nema 23 57 x 57 closed loop stepper motor with encoder at affordable price, 5.2 amp, 2 phase 4 wire for 3D printer, robot arm, CNC machine, sewing machine and other electrical equipment. Hybrid stepper motor with 1.8 degree step angle, 102mm motor length, 8mm shaft, holding torque at 2.2N·m, lightweight and high torque.
    SKU: ATO-STEP-23C520
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Nema 23 closed loop stepper motor is a bipolar stepper motor used in CNC machine, drawing equipment and sewing machine, robot arm, etc. It is a four-wire connection motor with encoder, holding torque at 2.2N·m, step angle accuracy ±5%, no lost step and high precision.

    Physical Specification

    • Model Number: ATO-FY56EC520BC1
    • Matched the Driver Model: ATO-FYDB506T
    • Flanged Size: 57 x 57mm (Nema 23)
    • Motor Length: 102mm
    • Shaft Diameter: 8mm
    • Number of Leads: 4 wire
    • Weight: 1.1kg

    Electrical Specification

    • Motor Type: Bipolar Closed Loop Stepper
    • Step Angle: 1.8°
    • Rated Current: 5.2A
    • Holding Torque: 2.2 N·m (220N·cm, 311.5
    • Phase Resistance: 0.42Ω
    • Phase Inductance: 1.9mH
    • Rotor Inertia: 520g·cm2

    Dimensions (Unit: mm)


    Dimensions of Nema 23 2 Phase Closed Loop Stepper Motor

    Motor & Encoder Wiring Diagram

    Wiring Diagram of Nema 23 2 Phase Closed Loop Stepper Motor

    Speed-Torque Curve Diagram

    Speed Torque Curve Diagram of Nema 23 2 Phase Closed Loop Stepper Motor


    Details of Nema 23 closed loop stepper motor

    Tips: Stepper motors must be equipped with motor drivers to work

    The permanent magnet stepper motor cannot be directly connected to the frequency AC or DC power supply like DC motor and AC motor. It must be equipped with a dedicated stepper motor driver to work. Because the stepper motor is composed of pulse generation control unit, power drive unit, protection unit and so on, the conventional application cannot be realized in terms of structure and principle.
    The drive unit of the stepper motor must be directly coupled with the stepper motor driver to ensure electromagnetic interference, so that the electronic circuit can be used to change the direct current into time-sharing supply, and the multiphase timing control current. That is, the stepper motor must have a driver to supply power.
