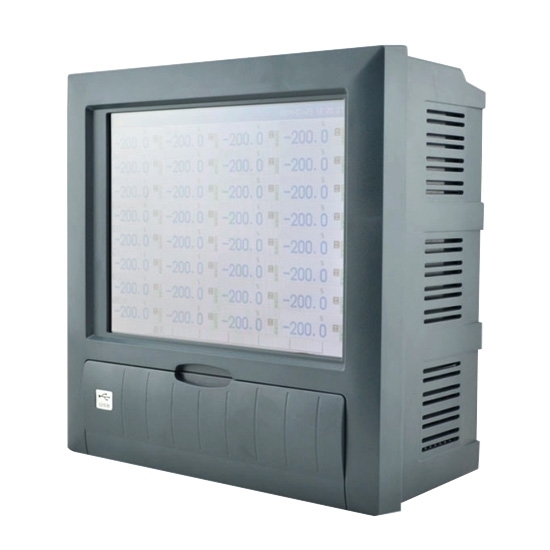

Paperless Recorder 8-40 Channel for Temperature/Pressure

5 out of 5 based on 1 reviews | Write a review

$2,717.94

10.4 inches paperless recorder has special function of square root computation and small-signal cutting in the flow measurement. It has optional 8-40 input channels, 8 analog outputs, 24 alarm outputs, 8 internal power suppliers and RS485/RS232/EtherNet communication output. Paperless recorder with 256M flash memory can be used for temperature, pressure, flow, level, voltage, current and frequency recording and monitoring.

Number of Channels *
Input Signal *
Analog Output *
Relay Alarm Output *
Communication Output *
External Power Supply *

SKU: ATO-PLR-CH40

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
PDF Catalog/User Manual

10.4 inches paperless recorder with optional 8-40 channels, 8 analog outputs, 24 alarm outputs, 18 alarm outputs and RS485/RS232/EtherNet communication output, can achieve temperature/ pressure/ current/ voltage/ linear resistance/ frequency online recording and computation.

Specification:

Model	ATO-PLR-R8000D
Shipping weight	7kg
Dimension (WHL)	288288168mm with hole size 282*282mm
Packaging included	1 * Paperless recorder 4 * Mounting bracket 1 * Optical disk (software) 1 * USB flash disk 1 * User manual
Display	10.4 inches TFT color LCD display, 640*480 points, 0~100% adjustment brightness
Accuracy	0.2%FS±1d
Power supply	AC 85~265V, 50Hz
Power dissipation	≤20W
Internal storage	256M bytes flash Note: All the data is stored in flash memory to make sure that all historical data and configuration parameters are not lost due to power failure. The real-time clock powered by a lithium battery after power failure. The life of the clock battery is 10 years.
External storage	USB flash disk (standard USB2.0 communication interface)
Number of Channel *	8, 12, 16, 24, 32, 40
Input signal *	1. Current signal: 4-20mA, 0-10mA 2. Voltage signal: 0-5V, 0-10V, 1-5V, 0-20mV, 0-100mV 3. Thermocouple signal: S, B, K, T, E, J, R, N, F1, F2, WRE3-25, WRE5-26 4. RTD signal: Pt100, Cu50, BA1, BA2 5. Linear resistance: 0-350Ω 6. Frequency signal: 0-10000Hz (customizable)
Analog output *	Up to 8 analog outputs: 4-20mA (load resistance≤750Ω) Note: When 24<number of channel<32, analog output≤4. When number of channel>32, analog output=0.
Alarm output *	Up to 24 alarm outputs, relay parameter: NO, 3A / 250VAC
Communication output *	1. RS485: 1200-57600BPS baud rate, Modbus communication protocol, 1km communication distance. 2. RS232: 1200-57600BPS baud rate, Modbus communication protocol, 15m communication distance. 3. EtherNet: 10M communication rate, only used for LAN
External power supply *	Up to 8 power supplies: 24VDC, 65mA (for external device)
Interface	EtherNet interface, USB interface, RS232 interface
Sampling period	1s
Recording interval	1s, 2s, 5s, 10s, 15s, 30s, 60s, 120s, 240s
Storage length	72 hours/channel (1s interval) ~ 720 days/channel (240s interval)
Functions	Different data display forms: Overview Digital Display, Bar Graph, Real-time Curve, Alarm List, History Curve, Report, Print, Backup, Configuration, Computation (flow measurement)
Operating temperature	0~50℃ (32~122℉)
Relative humidity	10~85%RH (No condensation)
Warranty	3 years

Tips: Application of paperless recorder in the pharmaceutical industry
Sterilization is extremely important in the production of pharmaceuticals, and its purpose is to strive to eliminate microbial contamination and kill microorganisms in pharmaceuticals. Sterilization is an important operation in the production process of drugs, and it is also one of the important measures to ensure the quality of drugs. Sterile medicines, especially sterile preparations such as injections, are drugs that directly enter the blood circulation system of the human body to produce a curative effect, so there are special requirements for its quality, and it must meet the requirements of pharmacopoeia sterility inspection. Therefore, it is extremely important to record parameters such as sterilization time and temperature during the sterilization process. According to the requirements of GMP, the sterilization cabinet for the production of sterile drugs should have automatic monitoring and recording devices, and its capacity should be compatible with the production batch. Each sterilization cycle must be on a sufficiently wide range of time/temperature meters or recording on other equipment with appropriate accuracy. The control instruments, monitoring instruments and record instruments are independent of each other.
To meet the above requirements, the paperless recorder is the best choice. According to install a paperless recorder and designing a new record monitoring network, the following problems in old recording methods can be solved:

The data retention time is too short.
Thermal paper is not suitable for long-term storage.
The operator needs to arrive at the scene to print the recorded data.
High temperature and humidity environment have a bad effect on the life of instruments on site.

Download ATO paperless recorder catalog (pdf).

Download ATO-PLR-CH18 paperless recorder user manual (pdf).

Download ATO-PLR-CH48 paperless recorder user manual (pdf).

Download ATO-PLR-CH40 paperless recorder user manual (pdf).

Existing reviews of Paperless Recorder 8-40 Channel for Temperature/Pressure

Hello, I would like to know more about the paperless recorder.

Good day. May I know if you have a multi parameter paperless recorder?
That can display pressure, temperature, electrical and mass measurement?
May I also know if the display can change into a graphical trend display.

From: Arabinda | Date: 13/09/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Yes, we have a multi-parameter paperless recorder that can display pressure, temperature, electrical and mass measurements simultaneously (electrical and mass should be in analog signal input form, such as 4-20mA.). Also, the display can be changed to graph trend for graph and histogram display.
