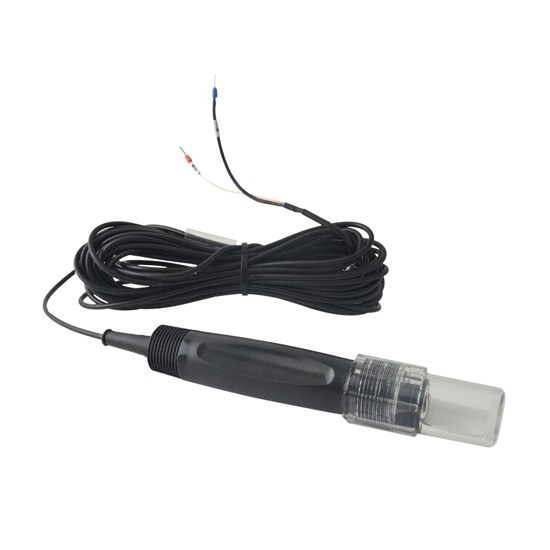

pH Electrode for Flue Gas Desulfurization

PH electrode can be used for pH measurement of flue gas desulfurization (FGD), or other harsh environment, such as whitewash, seriflux, etc.

Function:

• Adopt aerogel electrode, easy to maintain.
• Adopt flat glass bulb, good resistance to contamination and impact.
• High accuracy in high temperature or high pH value.
• High-quality low-noise cable, can achieve 60m long distance signal transmission.

Specification:

PH electrod installation methods:

1. Side wall installation (*The pH electrode must be at an angle of 15 degrees to the liquid surface. Otherwise, it will affect the normal use of the pH electrode.)
2. Flange mounted at the top
3. Pipe installation
4. Top installation
5. Submersible installation
6. Flow-through installation

Tips: Categories of pH electrode
Currently, there are three kinds of pH electrode: liquid electrode, gel electrode and solid electrode.

1. Liquid pH electrode
   Liquid electrode is a filling-type liquid electrode, it’s the most typical, the most outstanding quality and the most widely applied electrode in the history of pH electrodes. It’s suitable for measurement of various industrial processes.
2. Gel pH electrode
   Gel electrode is an improved liquid electrode. Such an electrode requires few maintenance and is suitable for on-line measurement with serious requirements. It can still work for a long time after many times of CIP (Cleaning In Place) and SIP (steam sterilization).
3. Solid pH electrode
   Solid electrodes are widely used in chemical industry. Applying new solid polymer reference electrolyte, its service life prolongs while maintaining accurate pH measurement, moreover, it can maintain good performance even in the worst industrial environment.
