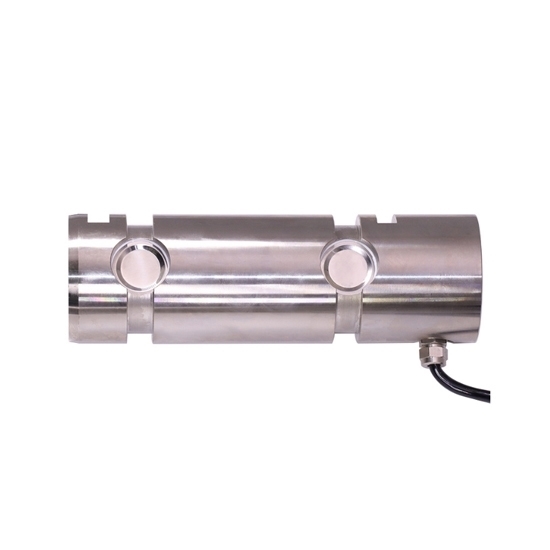

Pin Load Cell for Crane, 2 ton/5 ton/10 ton to 100 ton

5 out of 5 based on 1 reviews | Write a review

$326.52

Low price pin load cell has a measuring range of 0-2 ton, 0-5 ton, 0-10 ton, 0-100 ton etc. and a sensitivity of 2.0 ± 0.01 mV/V. With an input impedance of 350 ± 20Ω and output impedance of 350 ± 5Ω. Load cell supports safe overloads up to 150% F.S. and ultimate overloads up to 300% F.S. The recommended excitation voltage is 5-15V, and the pin type load cell comes with a φ5×3m cable and a cable tension strength of 98N. It's hollow shaft structure is compact and robust.

Range *
With Transmitter *
With Display Controller *

SKU: ATO-LC-ZX001

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

The pin load cell has a 0-100 ton range, 2.0 ± 0.01 mV/V sensitivity, 350Ω impedance, and supports up to 300% overload. With a durable hollow shaft design and 5-15V excitation, it’s ideal for cranes, hoists, and industrial lifting systems.

Specification

Model	ATO-DYZX-001
Measuring Range	0-100 ton
Matched Transmitter	ATO-LCTR-OA (Click it to the transmitter page)
Matched Display Controller	ATO-DPM-DY800 (Click it to the controller page)
Sensitivity	2.0±0.01mV/V
Non-Linearity	±0.1%F.S.
Hysteresis	±0.1%F.S.
Repeatability	±0.05%F.S.
Creep (30 minutes)	±0.05%F.S.
Zero Output	±2%F.S.
Zero Temp Coefficient	0.05%F.S./10°C
Sensitivity Temp Coeff.	0.05%F.S./10°C
Input Impedance	350±20Ω
Output Impedance	350±5Ω
Safe Overload	150%F.S.
Ultimate Overload	300%F.S.
Insulation Resistance	≥5000MΩ/100VDC
Material	Alloy Steel
Recommended Excitation Voltage	5-15V
Cable Specification	φ5×3m
Cable Tension Strength	98N

Feature

High Accuracy: The load pin load cell offers ±0.1% F.S. accuracy with excellent long-term stability.
Durable Design: Made of 42CrMo alloy steel, resistant to corrosion, high temperatures, and repeated impacts.
Compact and Reliable: Hollow shaft structure ensures strong resistance to torsion and bending, ideal for harsh environments.
Customizable and Versatile: Pin type load cell supports loads from 0 to 100 tons, widely used in cranes, hoists, and industrial lifting systems.
Easy to Install: Simple installation with low maintenance requirements.

Dimension (unit: mm)

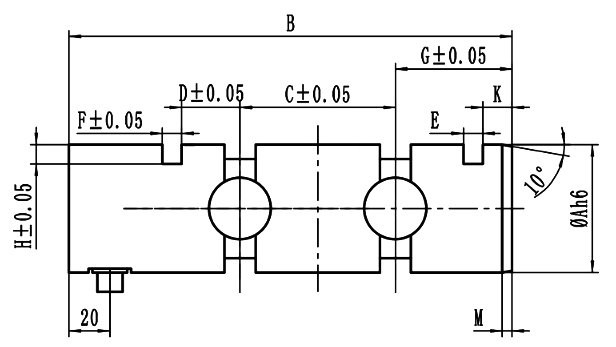

Pin load cell size

Range (t)	A	B	C	D	E	F	G	H	K	M
2/3/5 ton	50	180	66	27	4.5	6.5	32	7	9	3
7/10 ton	60	190	96	14	10	9	33	9	9	5
10/15 ton	65	210	116	14	10	9	32	9	8	5
20/30 ton	80	225	109	20	12	11	40	10	8	6
40/50/100 ton	120	275	153	25	14	13	51	15	12	6

Wiring Method

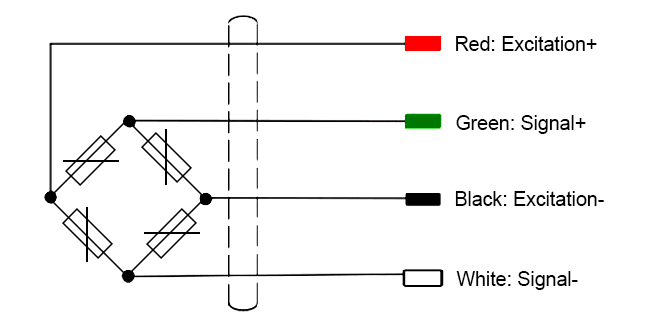

Pin load cell wiring method 1

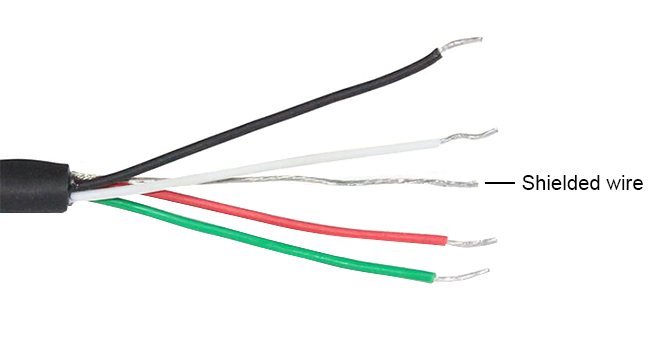

Pin load cell wiring method 2

Tips: What is a Pin Load Cell, and how is it used in cranes?

A pin load cell is a highly specialized device used to measure the load or force applied in lifting systems. It replaces the standard load-bearing pin in cranes and other hoisting equipment. By integrating strain gauges into its structure, the pin load cell detects deformations caused by the applied load and converts these into electrical signals. This real-time load data is then displayed or recorded, ensuring that crane operators have accurate and instant information about the weight being lifted. Pin load cells are widely used in overhead cranes, mobile cranes, tower cranes, and winching systems, where precise load monitoring is critical for safety and efficiency.

How to Make Your Load Cell Transmitter Work More Accurately

In this video, we've shown you how to calibrate the weight transmitter Model 610 by ATO using a compression load cell so that you can make sure you get the most accurate readings possible in your measurement.

CHB Load Cell Controller Calibration | Compensation Factor Calculation

In this video, we will walk you through the calibration procedure of ATO's CHB series load cell controller and how to calculate the compensation factor for your specific load cell so as to improve measurement accuracy. Hope you'll find it helpful.

How to Test for Faults in Load Cells?

As the most essential as well as vulnerable part of an electronic weighing system, load cells might get damaged for many different reasons. How can you determine whether a load cell is at fault? This video is gonna smooth out this problem by showing you several basic field tests that can be performed on site and provides the information necessary to interpret the results.

How to Choose the Right Load Cell

This video explains the six main considerations as to the selection of load cells for different jobs. These factors are application, operating environment, types of material and sealing techniques, capacity/resolution requirements and output signal types. Hope this video will be helpful and get you prepared for the initial discussion with technical personnel during the selecting process.
