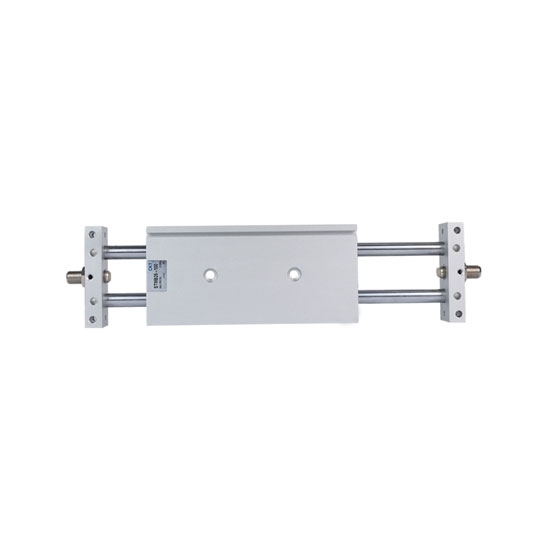

Pneumatic Slide Cylinder, 16mm Bore, 25mm Stroke

Pneumatic slide cylinder adopts cross ball guide rail, which has low friction force and can achieve smooth movement without loosening. Double-cylinder structure can obtain twice the output force.

Specification

• Model: ATO-PC-STMB
• Bore Size: 20mm
• Stroke: 100mm
• Use Fluid: Air
• Action Mode: Compound action
• Working Pressure Range: 0.71 MPa ~ 1.0 MPa (14 ~ 145 psi)
• Guaranteed Pressure Resistance: 1.5 MPa (215 psi)
• Ambient & Fluid Temperature: -10~+60°C
• Stroke Length Tolerance: ₀^+1.0
• Pipe Diameter: M5 x 0.8
• Buffer: Cushioning on both sides
• Certificate: CE

Features

• Pneumatic cylinders are optional with adjustable stroke device (0-5mm).
• Double cylinder design, twice the output force, thin volume.
• The combination of the cylinder and the table reduces the overall size.
• Adopt cross roller guide design, low friction, cylinder
• There is no gap between it and the workbench, which is suitable for precision assembly.
• Double acting slide cylinder can be installed from three sides.
• The pneumatic slide cylinder has a built-in magnetic ring type, which can be installed with basic switches.

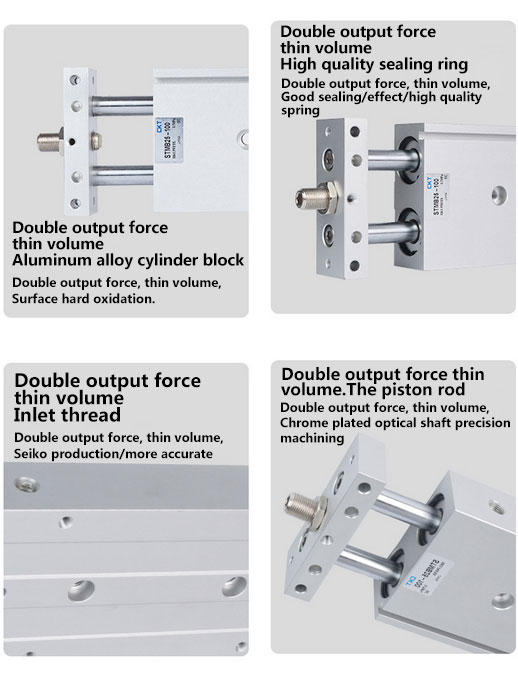

Pneumatic Slide Cylinder Detail

Tips: Why choose ATO pneumatic slide cylinder?

• Compact integration of slide cylinder table and cylinder.
• The precision cylinder is suitable for the pneumatic slide for precision assembly.
• High rigidity/high precision, optional with adjustable stroke device (0-5mm).
• Pneumatic slide cylinder adopts cross ball guide rail, which has low friction and can achieve smooth movement without loosening.
• The combination of cylinder and worktable reduces the overall size.
• Double-cylinder structure is adopted to obtain twice the output force.
• Built-in magnetic ring type, can install magnetic switch.
• The pneumatic slide cylinder is generally used as the transportation and transportation of precision instruments, and the precision is relatively high.
