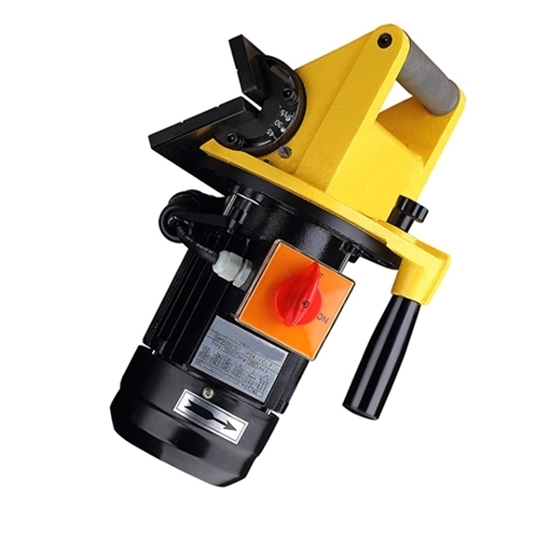

Portable Chamfering Machine, 45 Degree

5 out of 5 based on 1 reviews | Write a review
$654.15
Good price portable deburring and chamfering machine for sale online. Chamfering machine with chamfering angle 15°~45°, chamfering range 0~3 (6) mm or 0~9mm, motor power 250W/750W can be chosen, rotating speed 2800rpm or 3000~6000rpm for selection. The deburring machine is convenient and easy to operate.
*
SKU: ATO-CFM-R2
30-day Returns
Free Shipping
Delivery date: 6-12 days

The portable machine with chamfering range is 15°~45°, optional motor power 250W/750W, rotating speed 2800rpm or 3000~6000rpm are available. The hand chamfering machine is an electric chamfering tool that combines chamfering and deburring functions in one,  small in size and long service life.

Specification

Model ATO-CFM-R200 ATO-CFM-R200A
Motor Power 250W 750W
Chamfering Range 0~3 (6) mm 0~9mm
Speed 2800rpm 3000~6000rpm
Chamfering Angle 15°~45°
Rated Voltage 380V
Dimension 38*24*24.5cm
Accessories Blade*9
Cutting Head*1
Allen Wrench*3
Warranty 1 year
Weight 13 kg


Structure Diagram

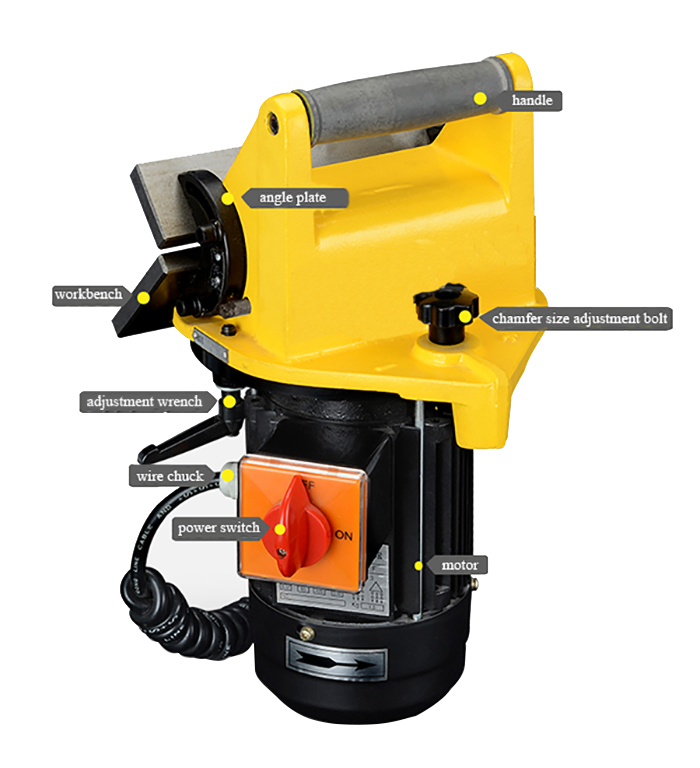

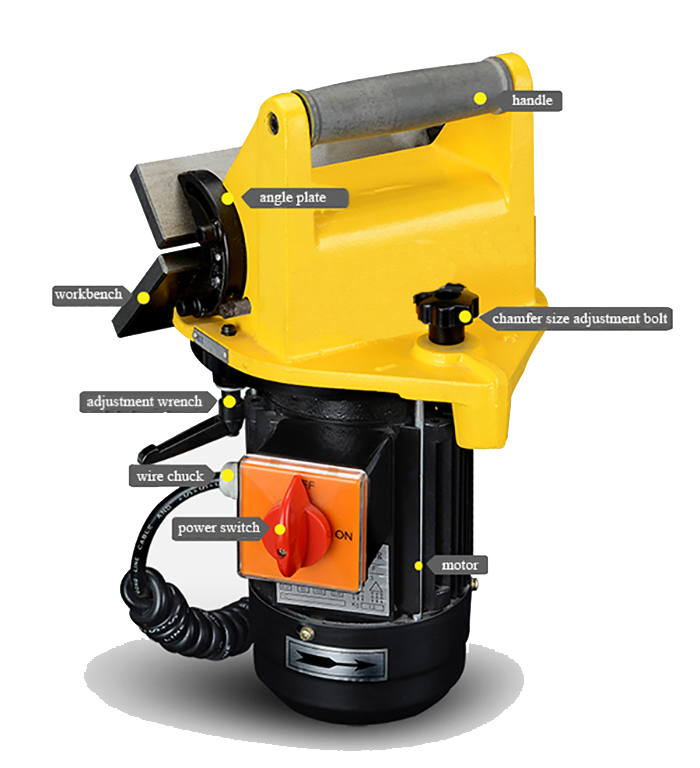

Portable chamfering machine structure diagram

Applications

The portable deburring/chamfering machine is suitable for large workpieces of any length, unheated and not easily moved, such as chamfering in the manufacturing process of various molds and mechanical parts. In addition, it is also suitable for batch processing of small workpieces, deburring for metal pipes, metal plates, molds, and mold frames, and manufacturing of mechanical equipment and hardware parts, etc.

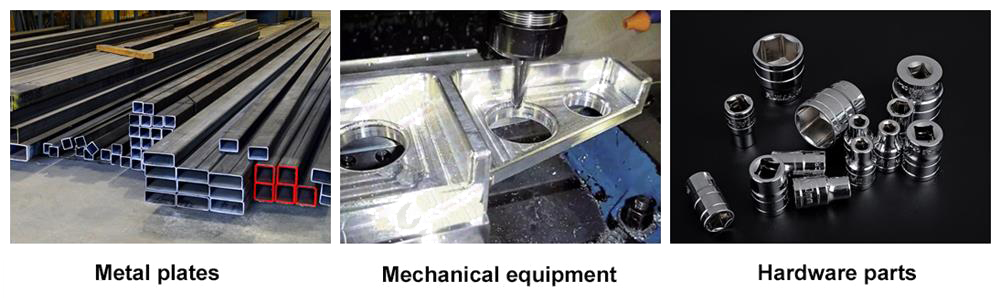

Portable chamfering machine application

Tips: What is a chamfering machine used for?

Chamfer machine is used by many furniture manufacturers. In many furniture designs, chamfer machines are used to ease or smoothen the edges of tables, and corners of counter tables. To round those sharp edges of furniture, chamfer machines are used.

Existing reviews of Portable Chamfering Machine, 45 Degree
Inquire about the portable chamfering machine
Hello. I wanted to inquire about the portable chamfering machine on your website and its typical applications.
Looking at an idea to use this on aluminum (particularly 6061 and 2024), but I am unsure if the machine can handle this, and if the router bit is replaceable with off-the-shelf bits that could accommodate aluminum.
From: cece | Date: 26/07/2023
Was this review helpful? Yes No (0/0)
ATO Responded
Could you describe in detail the aluminum item you mentioned?
What is the size? Is there a physical picture?
Our chamfering machine can handle aluminum objects.
