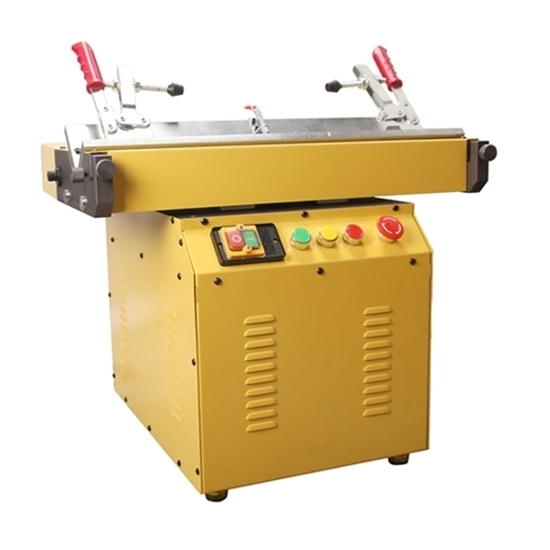

45 Degree Chamfering Machine, Semi-Automatic

$2,885.69
ATO 45 degree deburring and chamfering machine with chamfering angle 45°, the chamfering size can be adjusted in the range of 0-3mm, rated voltage 380V/50Hz, straight chamfer type, rotating speed 8000rpm, with simple and convenient operation.
SKU: ATO-CFM-R8H
30-day Returns
Free Shipping
Delivery date: 6-12 days

The deburring/chamfering machine is a semi-automatic electric tool, which is a new and efficient special equipment for table chamfering, can chamfer the straight edge of metal parts at high speed without damaging the surface of the parts.

Features

  • The work skateboard of the deburring/chamfering machine is made of high-quality die steel, which has hard chrome plating on the surface, low friction and durable.
  • If the length of the adjustment workpiece is large, quick fixture can be adjusted according to demand.
  • Leakage protection switch, overload leakage protection, protect safety for deburring/chamfering machine and personnel.

Specification

Model ATO-CFM-R800H
Chamfering Range 0~3mm
Chamfering Angle 45°
Rated Voltage 380V 50Hz
Motor Power 550W
Speed 8000rpm
Dimension 74*49*66cm
Warranty 1 Year
Weight 71 kg

Note: The chamfering machine is better to keep the grinding amount at 2mm each time.

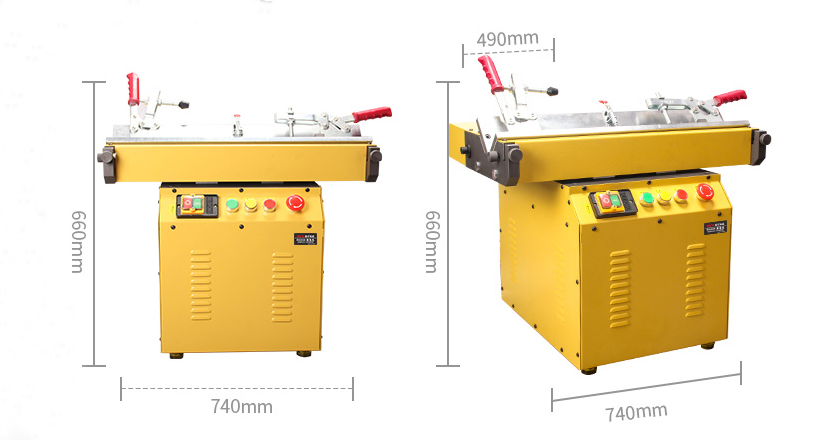

Dimension (mm)

45 degree chamfering machine dimension

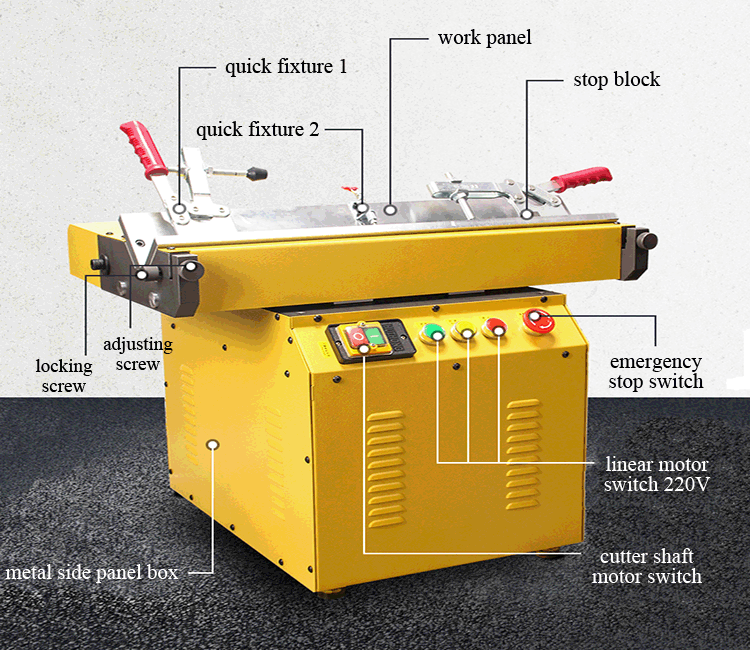

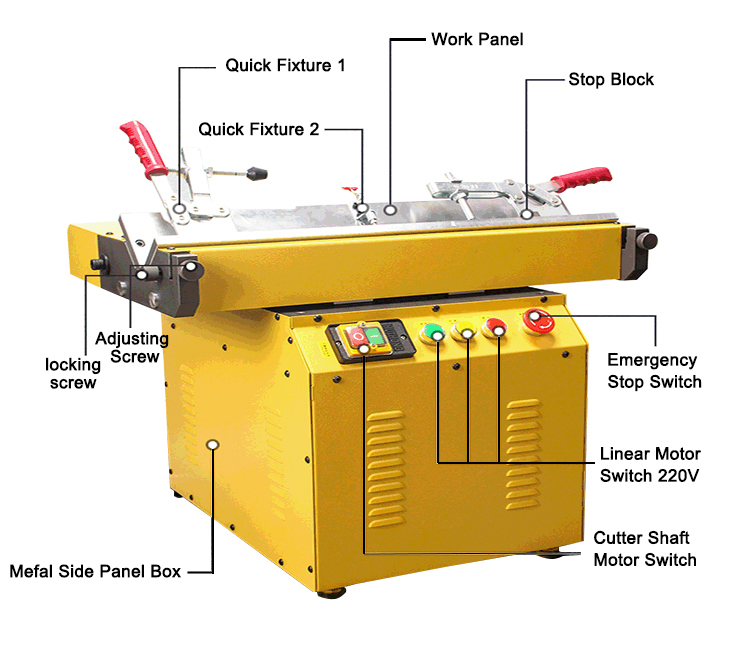

Structure Diagram

45 degree chamfering machine structure diagram

Applications

The deburring/chamfering machine is suitable for large workpieces of any length, unheated and not easily moved, such as chamfering in the manufacturing process of various molds and mechanical parts. In addition, it is also suitable for batch processing of small workpieces, deburring for metal pipes, metal plates, molds, and mold frames, and manufacturing of mechanical equipment and hardware parts, etc.

Portable chamfering machine application

Tips: Is a chamfer always 45 degrees?

Unlike the hypotenuse that connects one part to another, the chamfer transitions between two right-angled surfaces of the same part. Unlike a bevel, the chamfer is always at a 45-degree angle. Chamfering can remove the sharp edges of the 90-degree angle of the part to prevent injuries during handling.
