    80 GHz Non-contact Radar Level Transmitter, 4-20mA/RS485

    $1,555.86
    High frequency 80 GHz radar level sensor is a non-contact radar type level transmitter that can detect solid powder and liquid materials, available with optional 10m to 60m wide range, 24V DC or 220V AC power supply, 4-20mA/RS485/HART output, 3°/8°/20° beam angle and threaded or stainless steel flanged connection. It has an IP67 protection rating and is dust and water resistant.
    *
    *
    *
    *
    *
    *
    *
    *
    *
    *
    SKU: ATO-LEVS-WSR550
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    80 GHz non-contact radar level transmitter for sale online. High frequency radar level sensor with optional 10m-60m wide range, 24V DC or 220V AC power supply, 4~20mA/RS485/HART output, 3°/8°/20° beam angle and threaded or stainless steel flanged connection, suitable for stirring/steam/dust/crystallization and other occasions.

    Specifications

    Model ATO-LEVS-WSR550
    Measurement Medium Solid Powder or Liquid
    Measurement Range 0.08~10m, 0.08~20m, 0.08~30m, 0.3~60m
    Beam Angle 3° / 8° / 20°
    Transmitting Frequency 76GHz~81GHz
    Transmitter Output 4~20mA
    Communication Output RS485, HART
    Fault Output 3.8mA, 4mA, 20mA, 21mA, Hold
    Power Supply 24V DC or 220V AC
    Cable Inlet M20*1.5
    Cable Specification AWG or 0.75mm²
    Accuracy ±1mm
    Resolution 3cm
    Measurement Interval 1s
    Dielectric Constant ≥2
    Connection Thread, Flange, or Universal flange
    Flange Material 304 Stainless Steel, Contact us for 316L Stainless Steel or PTFE.
    Flange Standard HG/T20592
    Process Pressure -0.1~2MPa
    Process Temperature -40~80℃ or -40~150℃
    Storage Temperature -40~80℃
    Protection Level IP67
    Casing Material Aluminum Alloy

    Note: Please contact us for the structure and dimension drawings of the level transmitter.

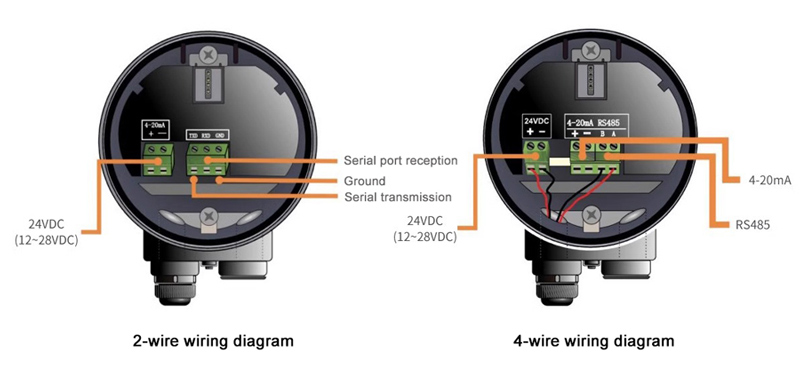

    24V DC Wiring Diagram

    Radar level transmitter wiring diagram

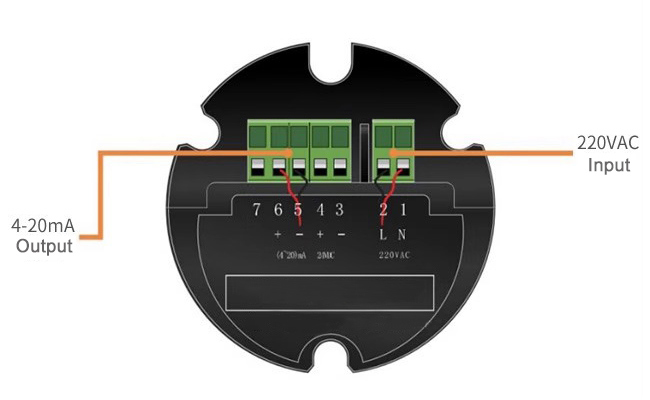

    220V AC Wiring Diagram

    220V AC radar level transmitter wiring diagram

    Installation

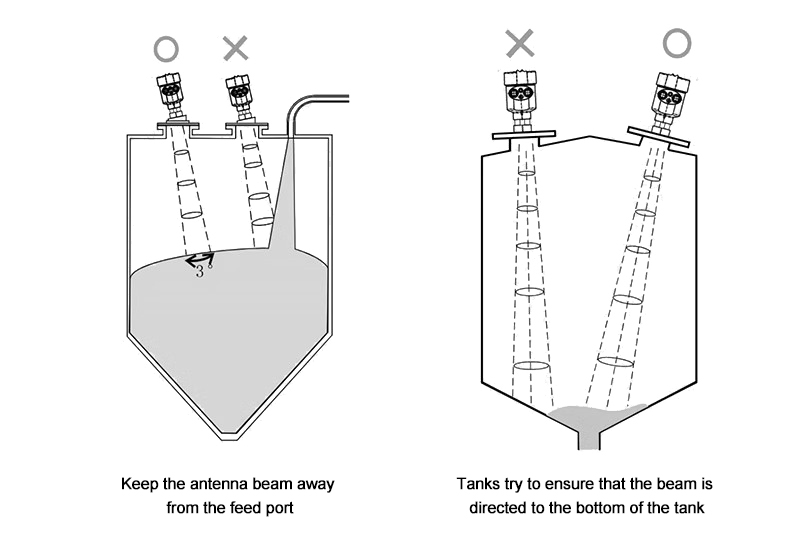

    Radar level transmitter installation

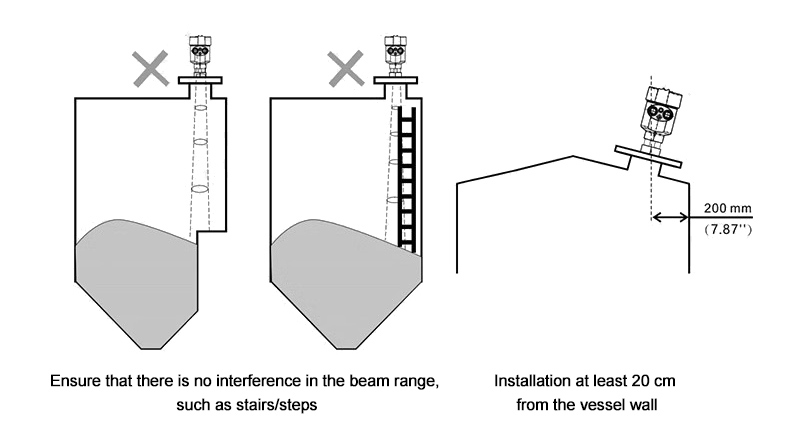

    Radar level transmitter installation

    Tips: What is 80 GHz radar level transmitter?

    An 80 GHz radar level transmitter is a type of non-contact measurement device used to determine the level of liquids, solids, or slurries in tanks, vessels, or silos. It operates by emitting high-frequency electromagnetic waves (at 80 GHz) toward the material surface and then measuring the time it takes for the reflected signal to return to the transmitter.

    The radar liquid level sensor can achieve high-precision level measurement of liquids, slurries and bulk solids, and is widely used in chemical, water treatment, food, pharmaceutical and other industries. In automation systems, 80 GHz radar level transmitters are often used in conjunction with field actuators such as motors and pumps to achieve functions such as level control and fluid management.
