    SDM16GA 16mm Linear Ball Bushing

    5 out of 5 based on 1 reviews | Write a review

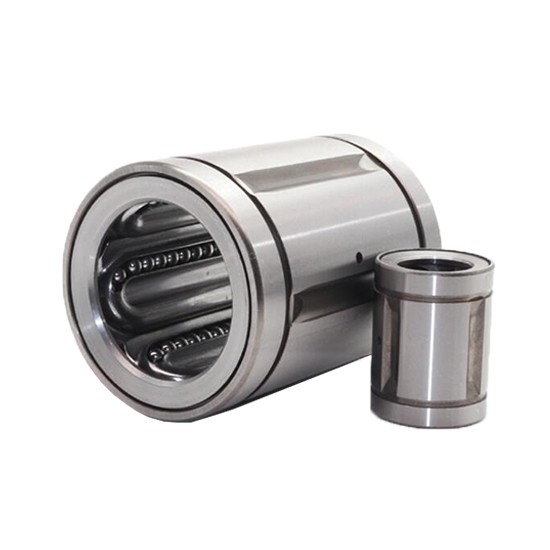

    16x28x37 linear ball bushing works with 16mm shaft with 28mm outer diameter and 37mm length. Fabricated with a chrome steel outer cylinder, steel ball retainer and chrome steel balls. Featuring low coefficient of friction, high precision and rigidity, able to provide smooth and persistent linear motion.
    This product has a minimum quantity of 5
    30-day Returns
    Delivery date: 6-12 days

    Metric size linear ball bushings are in stock for you to place an order. The size is 16x28x37mm with 4 ball circuits. It has linear bearing ball cage made of resin. Featuring compactness, minimal friction resistance, low load capacity, high precision and rigidity.


    SDM type dimension

    Nominal shaft diameter Resin retainer Major dimensions and tolerance
    SDM Ball circuit Weight SDM...AJ Ball circuit Weight SDM...OP Ball circuit Weight dr Tolerance
    Precision High
    16mm SDM16GM 4 76g LM16UU-AJ 4 75g SDM16OP 3 58g 16mm 0
    20mm SDM20GM 5 100g LM20UU-AJ 5 98g SDM20OP 4 79g 20mm 0
    25mm SDM25GM 6 240g LM25UU-AJ 6 237g SDM25OP 5 203g 25mm
    30mm SDM30GM 6 270g LM30UU-AJ 6 262g SDM30OP 5 228g 30mm
    35mm SDM35GM 6 425g LM35UU-AJ 6 420g SDM35OP 5 355g 35mm 0
    40mm SDM40GM 6 654g LM40UU-AJ 6 640g SDM40OP 5 546g 40mm
    50mm SDM50GM 6 1700g LM50UU-AJ 6 1680g SDM50OP 5 1420g 50mm
    60mm SDM60GM 6 2000g LM60UU-AJ 6 1980g SDM60OP 5 1650g 60mm 0
    80mm SDM80GM 6 4520g LM80UU-AJ 6 4400g SDM80OP 5 3750g 80mm
    100mm SDM100GM 6 8600g LM100UU-AJ 6 8540g SDM100OP 5 7200g 100mm 0


    Major dimensions and tolerance Eccentricity Radial clearance (Max) Basic load rating
    D L B W D1 h h1 θ
    mm Tolerance mm Tolerance mm Tolerance Precision High Dynamic  Static
    28 0
    37 0
    26.5 0
    1.6mm 27mm 1.5mm 11mm 80° 8μm 12μm -6μm 774c N 1180co N
    32 0
    42 30.5 1.6mm 30.5mm 1.5mm 11mm 60° 10μm 15μm 882cN 1370co N
    40 59 0
    41 0
    1.85mm 38mm 2mm 12mm 50° 980c N 1570co N
    45 64 44.5 1.85mm 43mm 2.5mm 15mm 50° -8μm 1570c N 2740co N
    52 0
    70 49.5 2.1mm 49mm 2.5mm 17mm 50° 12μm 20μm 1670c N 3140co N
    60 80 60.5 2.1mm 57mm 3mm 20mm 50° -10μm 2160c N 4020co N
    80 100 74 2.6mm 76.5mm 3mm 25mm 50° -13μm 3820c N 7940co N
    90 0
    110 85 3.15mm 86.5mm 3mm 30mm 50° 17μm 25μm 4700c N 10000co N
    120 140 0
    105.5 0
    4.15mm 116mm 3mm 40mm 50° -20μm 7350c N 16000co N
    150 0
    175 125.5 4.15mm 145mm 3mm 50mm 50° 20μm 30μm 14100c N 34800co N

    Tips: Working Principles of Self-aligning linear bushings

    Linear bushings are linear bearings that use a round shaft for the guiding axis. They are engineered with load-bearing plate, a ball retainer, steel balls and caps or rings, and seals. Traditional linear bushings feature point contact between the balls and load plates, thus minimizing the friction while limiting the load capacity. However, most current designs have changed from point contact to conformity by incorporating a groove in the load plate for better conformity with the load-carrying balls. This change in design increases the load capacity by three times that of a traditional design.

    Self-aligning linear bushings can rotate in the pitch and yaw directions, which equips them with the capability to compensate for flatness or alighment errors or deflection in the shaft. This self-alighment capability is attributed to the design of the load bearing plates, including sharply crowned designs, gradually crowned designs or radiused designs.

    Sharply crowned designs boast bearing plates that are thinner on the ends than in the middle, enabling the plate to rock around a central point. This equips the bushing with a misalignment tolerance of ±0.5 degree.

    Gradually crowned load plates work in the same manner as sharply crowned designs, but have more contact area between the load plate and the bore, which reduces contact stress and also the likelihood of the bearing plates becoming embedded in the bore, thus maintaining the proper clearance between the shaft and the bushing.

    Radiused designs include an outer ring along the center of the bushing housing. With this ring, the bearing plates are given a hardened surface to contact. Such a design allows the load plates to self-align in all three directions: roll, pitch and raw.
