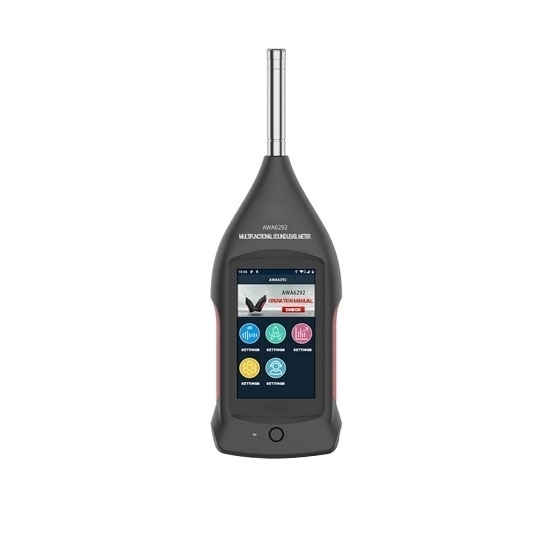

    Sound Level Meter, 20 to 143 dB

    5 out of 5 based on 1 reviews | Write a review
    The sound level meter can read readings between 20 dB-143 dB, 4.3-inch large touch screen, rich and clear interface, IP65, waterproof and dustproof design. The digital sound level meter has its own map positioning function and adopts the latest data encryption technology to ensure data safety and effectiveness.
    SKU: ATO-SLM-6292
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Smart digital sound level meter has a variety of data transmission methods, integrated 4G, WiFi, Bluetooth, serial port, USB, large-capacity storage, 16G internal storage and expandable 64 GB TF card.

    Sound Level Meter Features

    • Class 1 sound measuring instrument uses a 4.3-inch large color touch screen display, with a simple and clear interface and easy operation
    • Data security is strong, storage data adopts encryption method to ensure data safety and effectiveness
    • 20W fast charging, 2 hours of charging can meet 1 24-hour measurement
    • Strong integration scalability, a new generation of Internet instruments, integrated 4G, WIFI, Bluetooth, GPS, serial port, USB, the network port can be expanded through the expansion adapter, and it can be easily integrated and connected to the cloud platform


    Model ATO-SLM-AWA-6292
    Microphone Model Pre-polarization test condenser microphone
    Measuring Range 20 dB(A)~143 dB(A)
    Frequency Range 10 Hz~20 kHz
    Frequency Weighting Parallel (simultaneous) A, C, Z for each channel
    Time Weighting Parallel (simultaneous) F, S, I, Peak for each channel
    Monitor Touch screen
    Main Measurement Functions Total value integration, statistical integration, 24-hour automatic monitoring, 1/1 OCT, 1/3 OCT, FFT analysis, indoor measurement, reverberation time, STI, etc.
    Main Measurement Index Lxyp, Lxeq, T, Lxeq, t, Lxmax, Lxmin, LxN, SD, SEL, Lxpeak, etc. (Note: x is A, C, Z; y is F, S, I; N is 5, 10, 50, 90 , 95)
    Main Display Content Real-time measurement and display of more than 9 measurement indicators, statistical distribution graph, cumulative distribution graph, and 24-hour distribution graph
    Data Storage Function 16G internal storage, maximum support 64G TF card
    Communication Interface 4G, WIFI, Bluetooth, serial port, USB
    Protection Level IP65 (without microphone)
    Battery Capacity 10000mAh Lithium battery
    Power Supply  9V DC power supply (20W fast charge)
    Weight 910g
    Operating Temperature -40 ℃~40 ℃
    Warranty 12 Months
    Dimension 28mm x 95mm x 40mm

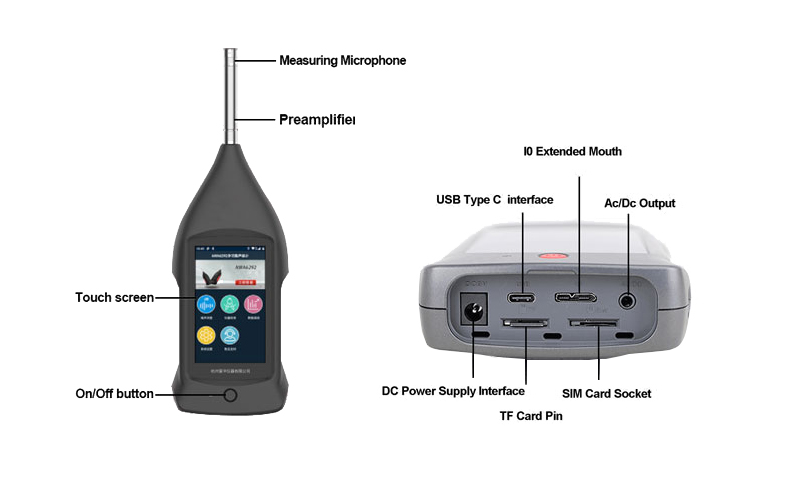

    20 to 143 dB Sound Level Meter Details

    Sound Level Meter Applications
    Sound level meter applications

    Tips: Sound level meter working principle

    The sound level meter uses a microphone to convert the sound into an electrical signal, and then a preamplifier converts the impedance to match the microphone with the attenuator. The amplifier adds the output signal to the weighting network, performs frequency weighting on the signal (or an external filter), and then amplifies the signal to a certain amplitude through the attenuator and amplifier, and sends it to the effective value detector (or external press Level recorder), give the value of the noise level on the indicator head.

    Existing reviews of Sound Level Meter, 20 to 143 dB
    Sound level meter for accurate measurement
    The 50-meter construction site next door is being renovated. The noise level measured by this sound level meter during the day has reached more than 100. After closing the curtains at home, the test is about 50 or 60, and the measurement results are very accurate.
    From: Wolffe | Date: 12/12/2021
    Was this review helpful? Yes No (0/0)
    Load more reviews...
