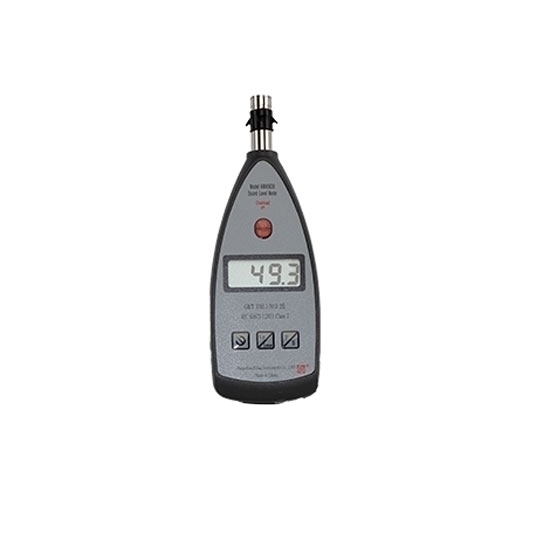

    Sound Level Meter, 30 to 130 dB

    5 out of 5 based on 1 reviews | Write a review
    $2,689.59
    Class 2 sound level meter with data logging, measuring range 30 to 130 dB, digital sound noise level meter has the advantages of high reliability, good stability, wide dynamic range, and no range conversion.
    SKU: ATO-SLM-5636-4
    *

    Buy best decibel meter for measuring loudness of sound, 30 to 130 dB, sound decibel meter can be widely used in industrial noise measurement of various machines, vehicles, ships, electrical appliances, etc., and can also be used in measurement of environmental noise, labor protection, and industrial hygiene.

    Digital Sound Level Meter Features

    • Professional decibel meter meets the class 2 sound level meter standard
    • Handheld noise meter modular design, select on demand, high cost performance
    • Good decibel meter uses digital signal processing technology with good stability
    • Sound level meter single range, large measuring range, no need to switch, simple and convenient operation

    Specification

    Model ATO-SLM-AWA-5636-4
    Microphone Model AWA14421B
    Measuring Range 40 dB(A)~130 dB(A)
    Frequency Range 20 Hz~12.5 kHz
    Frequency Weighting Parallel (simultaneous) A, C, Z for each channel
    Time Weighting Parallel (simultaneous) F, S, Peak for each channel
    Monitor Three and a half LCD
    Output Interface AC, DC, PWM, RS232, Bluetooth (Optional)
    Main Measurement Index Lp, Leqt, Lpeak, Leq, T, Lmax, Lmin, SEL, Lex8h, LAVG, TWA, DOSE, Ln (n=5, 10, 50, 90, 95), SD, E
    Power Supply 4 (7#) alkaline batteries, can work continuously for more than 10 hours, optional lithium battery: after fully charged, can work continuously for more than 24 hours, can be connected to an external 5 V power supply, working current <90 mA
    Filter Selection 1/1 OCT
    Data Storage Function 8000 Groups
    Recording Function Optional
    Overrun Indication Limit can be set
    Dimension 190mm x 68mm x 27mm
    Weight 1.5 kg
    Operating Temperature -10 ℃~50 ℃
    Warranty 12 Months

    Compact Sound Level Meter Panel Display

    Sound level meter panel display Sound level meter details

    Handheld Sound Level Meter Applications
    Sound level meter applications
    Tips: Types of sound level meters

    According to the sensitivity of the whole sound level meter, there are two types of sound level meter classification: one is the ordinary sound level meter, which does not require much microphone. The dynamic range and frequency response flat range are relatively narrow, and bandpass filters are generally not used in combination; the other type is precision sound level meters, whose microphones require wide frequency response, high sensitivity, and good long-term stability. This kind of band-pass filter is used together, the output of the amplifier can be directly connected with the level recorder and tape recorder, and the noise signal can be displayed or stored. If the microphone of the precision sound level meter is removed, replaced with an input converter and connected to an accelerometer, it becomes a vibrometer that can be used for vibration measurement.

    Existing reviews of Sound Level Meter, 30 to 130 dB
    How accurate is it? Can one rely on the readings?
    How accurate is it? Can one rely on the readings? Could I set this outside and have it record sound levels overnight 6-8 hours and it would capture sound readings over that time?
    From: Michel | Date: 10/04/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    We promise it is accurate enough. The item could be capture the MAX or MIN sound level overnight 6-8 hours,but can't record all dynamic data.
