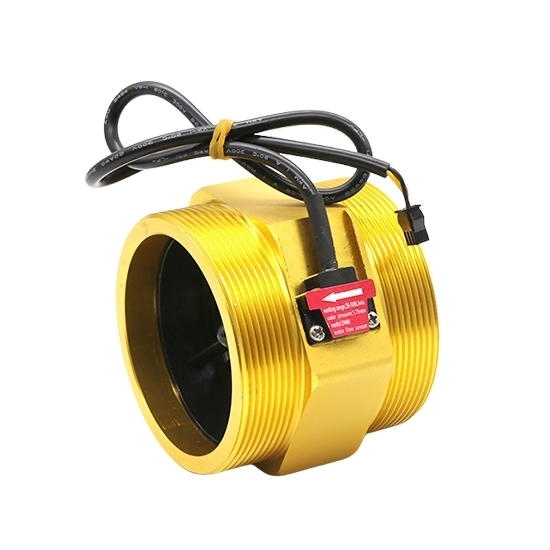

Turbine Water Flow Sensor, 3 Inch (DN80), 20-500L/min

Write a review

$116.32

Home or industrial turbine water flow sensor features a large DN80 interface and a wide 20-500L/min flow range. Turbine-type operation ensures consistent performance with a clear pulse output for easy integration and accurate data. Constructed from electroplated aluminum, this liquid flow sensor offers durability for demanding applications. Excellent value and dependable service are guaranteed for both domestic and commercial settings, providing reliable flow measurement with a simple pulse signal output.

SKU: ATO-FS-DN80

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Operating on a wide 3.5-24 VDC voltage, 3 inch turbine type water flow sensor features a 20-500L/min flow range, high insulation resistance (>100 MΩ), and rigorous pressure testing. Small liquid flow sensor performs reliably across a broad medium temperature range. Robust construction ensures the flow sensor meets the demands of challenging applications, providing a stable pulse signal output for consistent monitoring.

Specification

Model	ATO-YF-DN80
Interface Size	3 inches (DN80)
Accuracy	5%
Voltage Range	3.5 - 24 VDC
Output Pulse High Level	> DC 4.7 V (at DC 5V input)
Output Pulse Low Level	< DC 0.5 V (at DC 5V input)
Output Pulse Duty Cycle	50% ±10%
Load Capacity	≤ 10 mA (at DC 5V)
Flow Range	20 - 500 L/min ±3%
Water Pressure Resistance	≤ 1.75 MPa
Inner Diameter	77 mm
Outer Diameter	87 mm
Thread Length	21 mm
Suitable Medium	Water (free of impurities)
Valve Body Material	Electroplated Aluminum
Medium Temperature	-20 to 100 °C
Insulation Resistance	> 100 MΩ
Installation Method	Horizontal Installation
Sealing Performance	All ports sealed, tested under 1.7 MPa water pressure for 1 minute with no leakage or deformation.
Flow-to-Pulse Relationship	F (Hz) = 0.5 * Q (L/min) ± 3% Example: 30 pulses per liter Pulse Range: ~10 to 250 Hz (over 20-500 L/min flow range)
Precautions	1. Avoid severe impact and exposure to corrosive chemicals. 2. Do not throw or subject the unit to physical collision. 3. The unit can be installed either horizontally or vertically. 4. The medium temperature should not exceed 80°C.

Features

Precision sensing: Utilizing Hall components, home turbine water flow sensor delivers a highly accurate pulse signal for consistent flow measurement.
Excellent sealing: Undergoing rigorous pressure testing, the sensor guarantees a completely watertight seal with no leakage under high-pressure conditions.
Durable construction: 3 inch water flow sensor with superior materials features a wear-resistant, electroplated aluminum body for long-term service.
Rapid response: Engineered for high sensitivity, it provides quick response to flow rate changes, enabling precise real-time monitoring.
Versatile compatibility: Designed for broad application, liquid turbine flow sensor operates on a wide 3.5-24 VDC range, suitable for diverse systems.
Certified safety: Conforming to RoHS standards, the construction ensures environmental safety for use with potable water applications.

Dimension (Unit: mm)

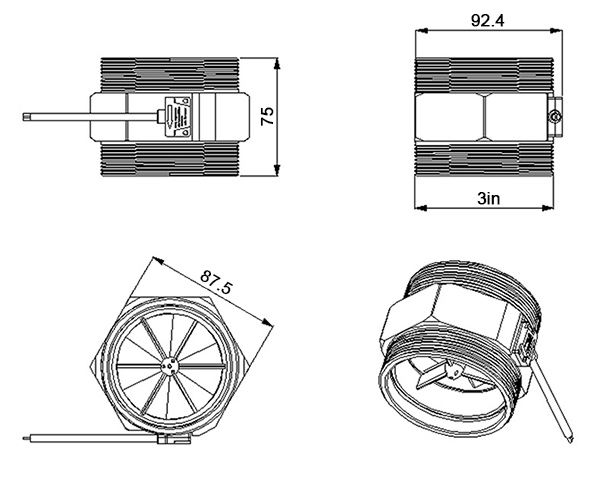

Turbine water flow sensor size

Wiring

Turbine water flow sensor wiring

Output Waveform

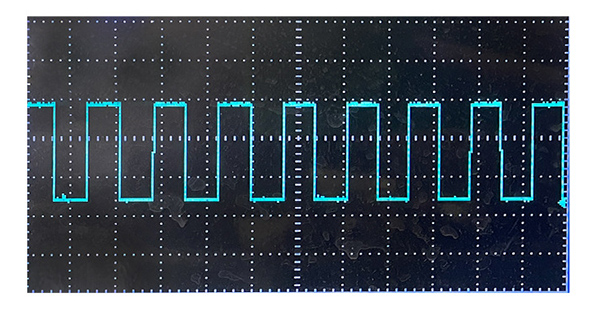

Turbine water flow sensor output waveform

Application

Turbine water flow sensor application

Tips: What materials are used in the turbine water flow sensor, and how does it work?

The domestic turbine water flow sensor is manufactured using high-quality ROHS-compliant materials, primarily featuring a durable aluminum valve body that ensures environmental safety and corrosion resistance. The working principle involves a precision magnetic rotor that spins proportionally to water flow velocity. This rotation is accurately detected by an imported Hall effect sensor, which generates a corresponding digital pulse signal. This signal is transmitted to a controller for real-time flow calculation, enabling precise flow measurement, regulation, and control in applications such as water heaters, industrial equipment, and irrigation systems. The robust construction and reliable pulse output make mini water flow sensor suitable for long-term use in diverse environments.
