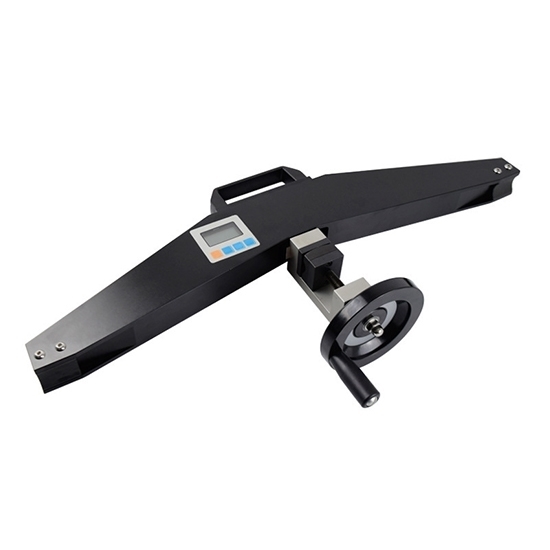

Wire Rope Tension Force Meter, 20kN–200kN

Write a review

$4,758.38

Wire rope tension force meter with 20–200kN max load and 2–6% accuracy. Suitable for flexible wire ropes and cables (Φ6–40mm). Direct measurement without disassembly. Supports 15 rope diameter settings for a wider measuring range. Easy to operate and widely used in power, telecom, construction, transportation, cableway, and industrial tension testing.

Max Load Value *

SKU: ATO-FG-SEH

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Note: Do not use volatile chemicals (such as solvents, thinners, or alcohol) for cleaning this wire rope tension force meter.

Portable wire rope tension force gauge is a device for fast on-site measurement of installed steel ropes. It supports different rope diameters and provides stable readings, widely used by engineers and maintenance teams in power, telecom, construction, elevators, and cableway applications.

Specification

Model	ATO-SEH-20	ATO-SEH-50	ATO-SEH-100	ATO-SEH-200
Maximum Load Value (kN)	20	50	100	200
Graduation Value (kN)	0.01	0.01	0.01	0.01
Measuring Range	Φ6–Φ20 (mm)	Φ12~Φ30(mm)	Φ16~Φ36(mm)	Φ20~Φ40(mm)
Output Interface	RS232 9-pin socket
Charging Time	7.2V 1.2V × 6 Ni-MH battery pack
Battery Continuous Working Time	4–6 hours
Battery Life	Approx. 10 hours
Charger	≥300 cycles
Power Supply	Input: AC 220V 50Hz Output: DC 10V 300mA
Operating Temperature	5°C – 35°C
Storage/Transportation Temperature	-10°C – 60°C
Relative Humidity	15% – 80% RH
Working Environment	No vibration sources or corrosive media in the surrounding environment
Certification	CE
Net Weight	Approx. 5.5 kg
Dimensions	650 × 375 × 100 mm

Feature

Wire rope tension force meter supports multiple max load options (20kN / 50kN / 100kN / 200kN), suitable for different tension testing requirements.
Built-in 15 selectable rope diameter settings for extended measuring flexibility.
Wire rope tension force gauge enables direct on-site measurement of flexible and tensioned wire ropes without disassembly.
Direct measurement without disassembly, improving efficiency for field operation.
Wire rope tension force tester delivers 2–6% measurement accuracy, ensuring reliable tension readings in practical applications.
Lightweight and compact structure, easy to carry and operate in various environments.
High stability with automatic system compensation, improving measurement accuracy up to 2% when matched correctly.
Industrial wire rope tension meter is compatible with Φ6–40mm rope diameters and provides 15 selectable diameter settings for a wider measuring range.
Suitable for steel wire ropes, high-strength cables, and tensioned rope structures.
Wire rope tension force gauge is widely used in power, telecom, construction, transportation, cableway, marine fishing, and inspection industries.

Detail

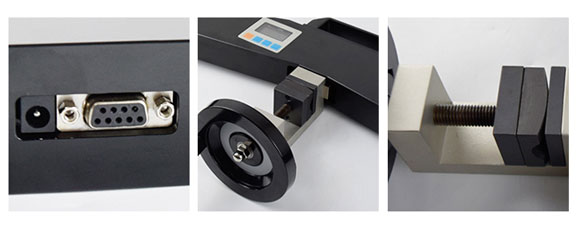

Wire rope tension force meter detail

9-pin Serial Port Output: Designed with a 9-pin serial interface, enabling more convenient and faster data transmission.
Adjustment Handle: Allows height adjustment during testing for improved measurement accuracy and ease of operation.
Fixed Test Point: Adjustable tightening mechanism for the fixture head ensures more stable positioning and more reliable measurement results.

Structure

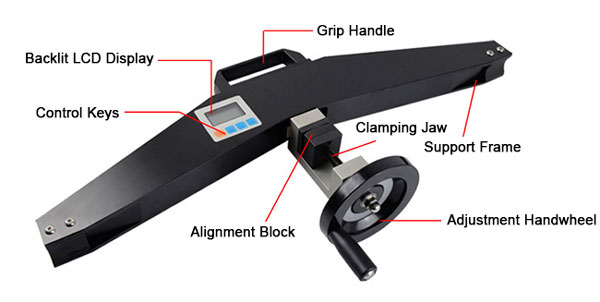

Wire rope tension force meter structure

Packaging

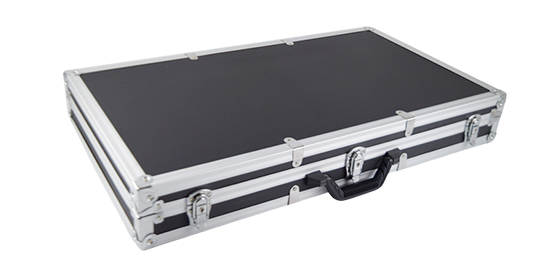

Wire rope tension force meter packaging

Tips: In what environments can the wire rope tension force meter be used?

The rope tension gauge is designed for use in clean, dry, and stable working environments. It should not be operated in humid, dusty, oil-contaminated, chemical-exposed, or high-vibration areas, as these conditions may interfere with measurement accuracy and reduce the service life of the instrument. For best performance and reliable readings, ensure the working site is free from moisture, corrosive substances, and mechanical disturbances.
