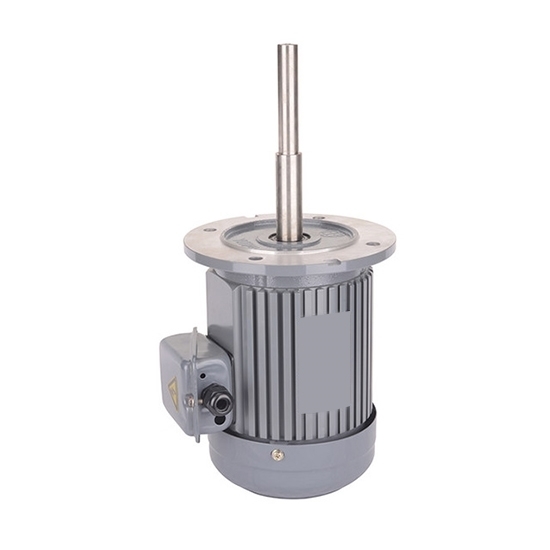

1/3 hp 160mm Long Shaft Induction Motor, 2700 rpm

5 out of 5 based on 1 reviews | Write a review

$468.47

Low price AC induction motor for sale, 160mm long shaft. Output power 1/3 hp (250W) or 1/2 hp (370W) for selection, 2/4/6 poles, speed 2700 rpm, minimum speed 860 rpm, max torque 2.2 N.m, single phase/3-phase power supply 100-380V. Long shaft induction electric motor for high temperature (≤ 200℃), matching 71 flange.

Rated Power *
Motor Poles *
Rated Voltage *

SKU: ATO-LSIM-13160

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

160mm long shaft induction motor works at single phase or 3-phase power supply, voltage 100~380V, optional output power 1/3 hp (250W) or 1/2 hp (370W), 2/4/6 poles， speed 860~2700 rpm. The AC induction electric motor is special for high temperature use, small size, high speed and low price.

Note: Please contact our sales to inquire about drawings before placing an order.

Specification

Model	ATO-YTG-B5
Rated Voltage	Single Phase 100-120V, 50/60Hz Single Phase 220-230V, 50/60Hz 3-Phase 220V, 50/60Hz 3-Phase 380V, 50/60Hz
Working Temperature	≤ 200℃
Output Power		Speed (rpm)	Current (A)	Power Factor (cos Φ)	Efficiency (%)	Rated Torque (N.m)	Start Current (A)	Locked-Rotor Torque (N.m)	Max Torque (N.m)	Base Type
2 Poles
1/3 hp (250W)		2700	0.76	0.76	66	0.88	5.5	2.2	2.2	63
1/2 hp (370W)		2760	0.99	0.81	70	1.28	6.1	2.2	2.2	71
4 Poles
1/3 hp (250W)		1345	0.79	0.74	65	1.78	5.2	2.1	2.2	71
1/2 hp (370W)		1340	1.1	0.75	67	2.64	5.2	2.1	2.2	71
6 Poles
1/3 hp (250W)		860	0.95	0.68	59	2.78	4	1.9	2	71
1/2 hp (370W)		885	1.27	0.7	62	3.99	4.7	1.9	2	80

Features

Long shaft induction motor adopts IEC international standard size, which is internationally interchangeable and universal.
The rotating part of long shaft AC induction motor has small inertia, large acceleration torque and short start-stop time. Frequent starting and stopping the machine can improve work efficiency.
Long shaft induction motor has low vibration and low noise. The mechanical structure is perfectly designed, and the processing and assembly techniques are excellent. 100% dynamic balance correction, uses high-quality bearings to reduce noise and vibration.
Long shaft induction motor is easy to maintain. High-grade oil-sealed bearings do not need to add or replace lubricating grease.
Long shaft induction motor is small in size and light in weight. The shell is made of ABB and CPG materials, and the shell is stretched, which saves space, is convenient to install, design and construction.
Long shaft AC induction motor uses class F insulation material. The stator coil and insulation materials adopt F grade which is heat-resistant, temperature-resistant and chemical-resistant. Safe and durable, long lifespan. The maximum working temperature can reach 200℃. Vacuum dipping paint treatment prevents the stator coil from regaining moisture.
Protection grade is IP55, dustproof and waterproof, in line with international standards.

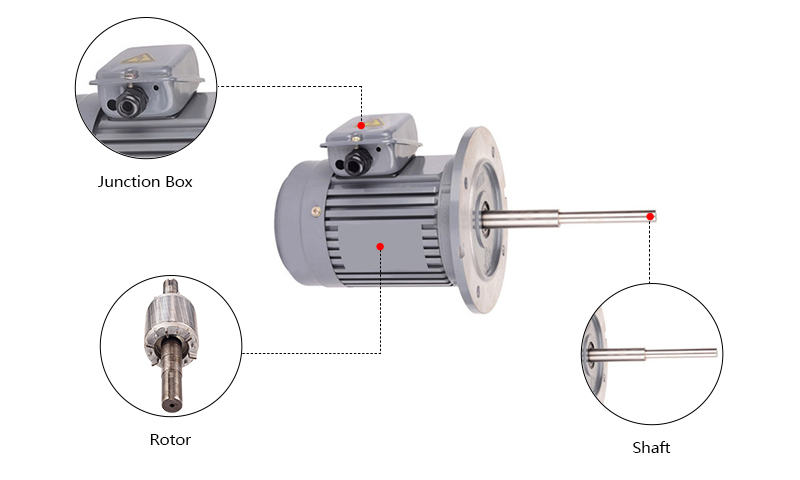

Details

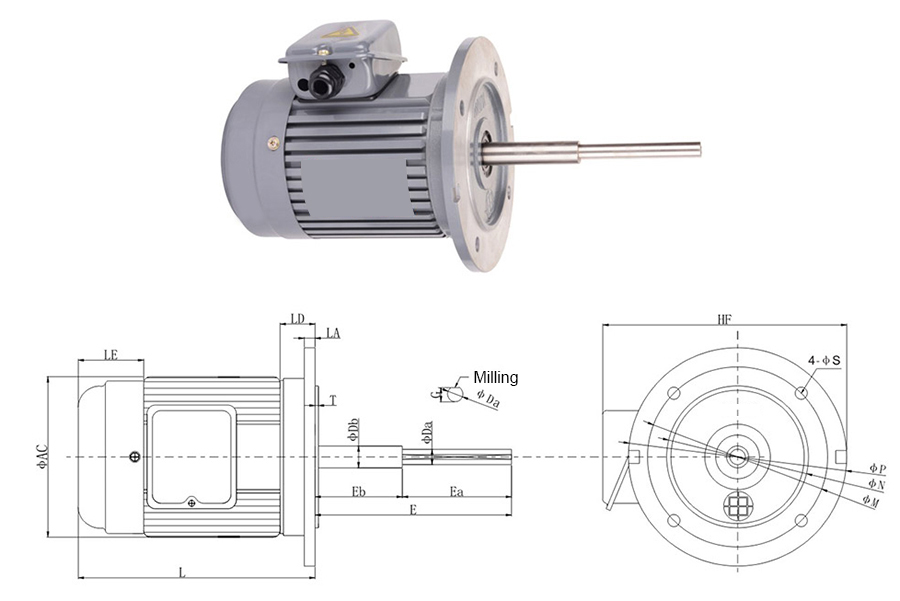

1/3 hp 160mm Long Shaft Induction Motor Dimensions (Unit: mm)

Flange	Motor Base Number	Insulation Class	Flange Mounting Dimension					L_A	L_D	L_E	L	Φ AC	HF	Shaft Dimension						Bearing
Flange	Motor Base Number	Insulation Class	Φ M	Φ N	Φ P	Φ S	T	L_A	L_D	L_E	L	Φ AC	HF	Φ Da	Φ Db	Ea	Eb	E	G	L.S.	O.S.
71	110	H	130	110	160	10	3	7	31	55	227	127	130	14	25	80	80	160	13	6202	6201
80	125	H	165	130	200	12	3	10	35	65	240	145	145	19	20	100	80	180	18	6304	6203

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

3-phase motor reverse connection

In this video, we have 120V/220V/240/380V/415V AC motors with power from 1hp~100hp, widely used to drive various industrial machines such as fans, pumps, machine tools.
