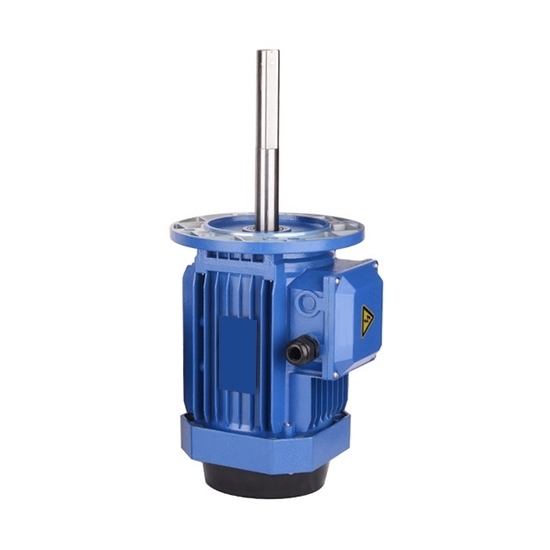

1/2 hp 160mm Long Shaft Induction Motor, 2700 rpm

5 out of 5 based on 1 reviews | Write a review

$519.72

Buy factory price long shaft induction motor online. Shaft length 160mm, working power 1/2 hp (370W), optional speed 2/4/6 poles, 885~2700 rpm, max output torque 2.2 N.m, single phase/3-phase power supply 100-380V. Long shaft AC induction electric motor with high temperature resistance (200℃), high speed, small size.

Flange *
Motor Poles *
Rated Voltage *

SKU: ATO-LSIM-12160

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

160mm long shaft induction motor for sale, works at 1/2 hp (370W) rated power, rated voltage single phase/3-phase 100~380V, speed 2/4/6 poles, maximum 2700 rpm. The AC induction electric motor has a long shaft, high temperature resistance, high efficiency, low noise, small size, high speed and ideal price.

Specification

Model	ATO-B5F-ABB
Rated Voltage	Single Phase 100-120V, 50/60Hz Single Phase 220-230V, 50/60Hz 3-Phase 220V, 50/60Hz 3-Phase 380V, 50/60Hz
Working Temperature	≤ 200℃
Output Power		Speed (rpm)	Current (A)	Power Factor (cos Φ)	Efficiency (%)	Rated Torque (N.m)	Start Current (A)	Locked-Rotor Torque (N.m)	Max Torque (N.m)	Base Type
2 Poles
1/2 hp (370W)		2700	0.99	0.81	70	1.28	6.1	2.2	2.2	71
4 Poles
1/2 hp (370W)		1340	1.1	0.75	67	2.64	5.2	2.1	2.2	71
6 Poles
1/2 hp (370W)		885	1.27	0.7	62	3.99	4.7	1.9	2	80

Features

Long shaft induction motor adopts IEC international standard size, which is internationally interchangeable and universal.
The rotating part of long shaft AC induction motor has small inertia, large acceleration torque and short start-stop time. Frequent starting and stopping the machine can improve work efficiency.
Long shaft induction motor has low vibration and low noise. The mechanical structure is perfectly designed, and the processing and assembly techniques are excellent. 100% dynamic balance correction, uses high-quality bearings to reduce noise and vibration.
Long shaft induction motor is easy to maintain. High-grade oil-sealed bearings do not need to add or replace lubricating grease.
Long shaft induction motor is small in size and light in weight. The shell is made of ABB and CPG materials, and the shell is stretched, which saves space, is convenient to install, design and construction.
Long shaft AC induction motor uses class F insulation material. The stator coil and insulation materials adopt F grade which is heat-resistant, temperature-resistant and chemical-resistant. Safe and durable, long lifespan. The maximum working temperature can reach 200℃. Vacuum dipping paint treatment prevents the stator coil from regaining moisture.
Protection grade is IP55, dustproof and waterproof, in line with international standards.

Details

1/2 hp 160mm Long Shaft Induction Motor Dimensions (Unit: mm)

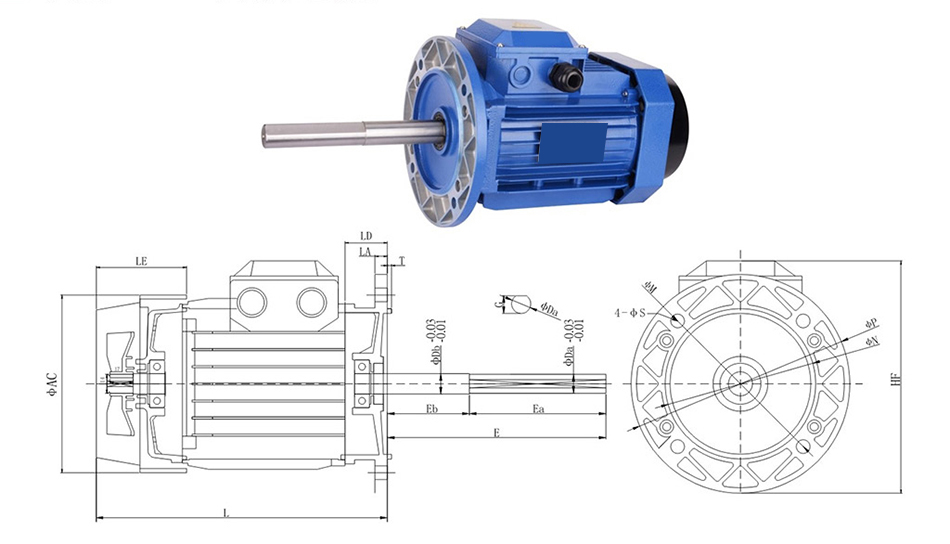

Ordinary Flange

Motor Base Center Height	Insulation Class	Flange Mounting Dimension					L_A	L_D	L_E	L	Φ AC	HF	Shaft Dimension						Bearing
Motor Base Center Height	Insulation Class	Φ M	Φ N	Φ P	Φ S	T	L_A	L_D	L_E	L	Φ AC	HF	Φ Da	Φ Db	Ea	Eb	E	G	L.S.	O.S.
71	F	130	110	160	10	3	10	31	65	213	130	176	14	15	80	80	160	13	6202	6202
80	F	165	130	200	12	3	12	31	63	225	142	205	19	20	100	80	180	18	6204	6204

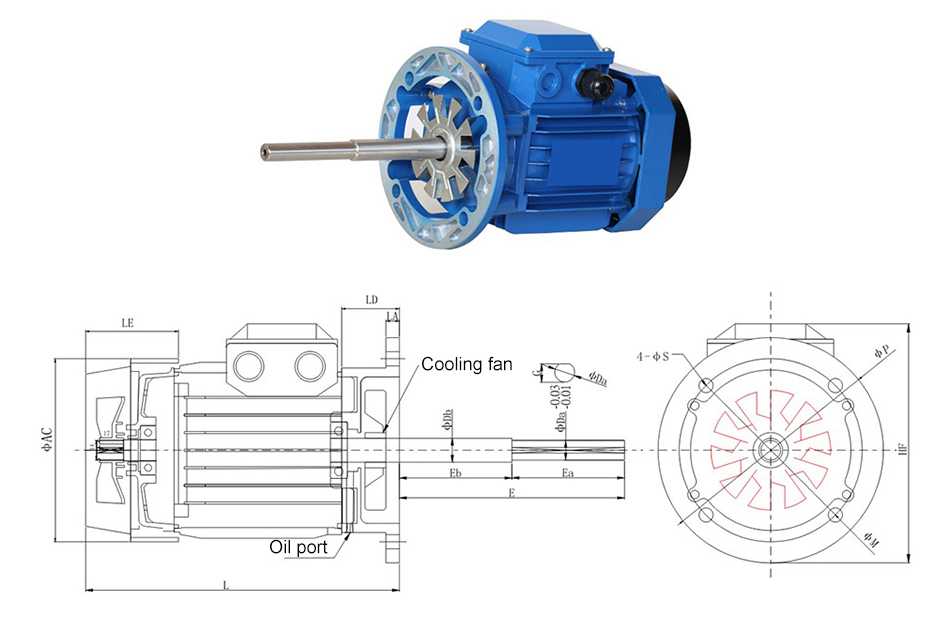

Heightening Flange

Motor Base Center Height	Insulation Class	Flange Mounting Dimension				L_A	L_D	L_E	L	Φ AC	HF	Shaft Dimension						Bearing
Motor Base Center Height	Insulation Class	Φ M	Φ P	Φ S	T	L_A	L_D	L_E	L	Φ AC	HF	Φ Da	Φ Db	Ea	Eb	E	G	L.S.	O.S.
71	F	130	160	10	-	9.5	41	65	223	130	176	14	17	80	80	160	13	6203	6202
80	F	165	200	12	-	10	44	65	240	142	205	19	20	100	80	180	18	6204	6204

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

3-phase motor reverse connection

In this video, we have 120V/220V/240/380V/415V AC motors with power from 1hp~100hp, widely used to drive various industrial machines such as fans, pumps, machine tools.
