180/250W 160mm Long Shaft Induction Motor, 2700 rpm

5 out of 5 based on 1 reviews | Write a review

$432.92

Affordable price long shaft induction motor for sale. Output power 180W/250W, shaft length 160mm, speed 2/4/6 poles, 860~2700 rpm, max torque 2.2 N.m, working voltage single phase/3-phase 100-380V. Long shaft AC induction electric motor, ideal for high temperature applications.

Flange *
Rated Power *
Motor Poles *
Rated Voltage *

SKU: ATO-LSIM-1825160

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

AC induction motor has a 160mm long shaft, operates at single phase/3-phase 100~380V power supply. Rated power 180W or 250W for selection, speed 2/4/6 poles, maximum 2700 rpm. Long shaft induction electric motor has small size, high speed and ideal price, which is suitable for various high temperature equipment, such as oven, low temperature quick freezing, constant temperature box, glass machinery, tunnel furnace, etc.

Specification

Model	ATO-B5F-ABB
Rated Voltage	Single Phase 100-120V, 50/60Hz Single Phase 220-230V, 50/60Hz 3-Phase 220V, 50/60Hz 3-Phase 380V, 50/60Hz
Working Temperature	≤ 200℃
Output Power		Speed (rpm)	Current (A)	Power Factor (cos Φ)	Efficiency (%)	Rated Torque (N.m)	Start Current (A)	Locked-Rotor Torque (N.m)	Max Torque (N.m)	Base Type
2 Poles
180W		2700	0.58	0.73	65	0.63	5.5	2.2	2.2	63
250W		2700	0.76	0.76	66	0.88	5.5	2.2	2.2	63
4 Poles
180W		1340	0.64	0.73	58	1.28	4.4	1.8	2	63
250W		1345	0.79	0.74	65	1.78	5.2	2.1	2.2	71
6 Poles
180W		860	0.74	0.66	56	2.00	4	1.9	2	71
250W		860	0.95	0.68	59	2.78	4	1.9	2	71

Features

Long shaft induction motor adopts IEC international standard size, which is internationally interchangeable and universal.
The rotating part of long shaft AC induction motor has small inertia, large acceleration torque and short start-stop time. Frequent starting and stopping the machine can improve work efficiency.
Long shaft induction motor has low vibration and low noise. The mechanical structure is perfectly designed, and the processing and assembly techniques are excellent. 100% dynamic balance correction, uses high-quality bearings to reduce noise and vibration.
Long shaft induction motor is easy to maintain. High-grade oil-sealed bearings do not need to add or replace lubricating grease.
Long shaft induction motor is small in size and light in weight. The shell is made of ABB and CPG materials, and the shell is stretched, which saves space, is convenient to install, design and construction.
Long shaft AC induction motor uses class F insulation material. The stator coil and insulation materials adopt F grade which is heat-resistant, temperature-resistant and chemical-resistant. Safe and durable, long lifespan. The maximum working temperature can reach 200℃. Vacuum dipping paint treatment prevents the stator coil from regaining moisture.
Protection grade is IP55, dustproof and waterproof, in line with international standards.

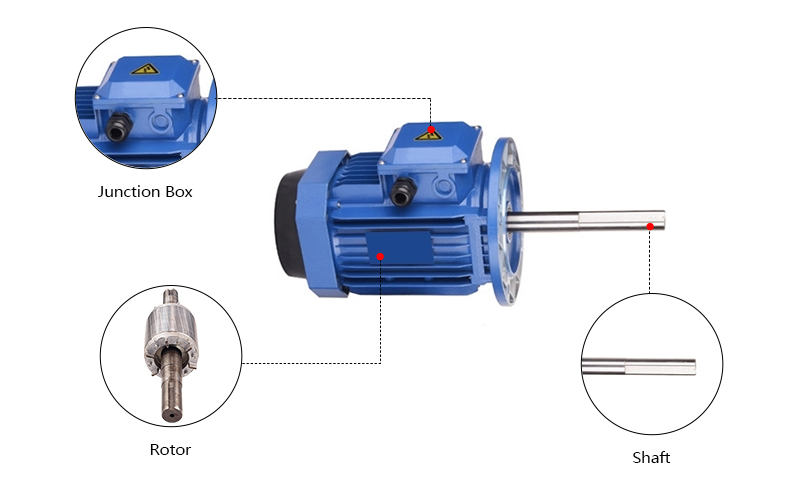

Details

180/250W 160mm Long Shaft Induction Motor Dimensions (Unit: mm)

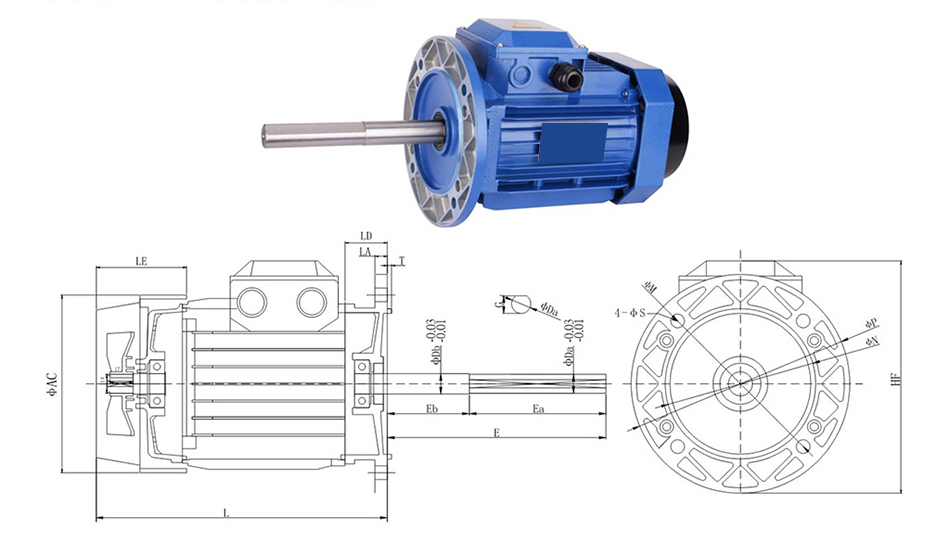

Ordinary Flange

Motor Base Center Height	Insulation Class	Flange Mounting Dimension					L_A	L_D	L_E	L	Φ AC	HF	Shaft Dimension						Bearing
Motor Base Center Height	Insulation Class	Φ M	Φ N	Φ P	Φ S	T	L_A	L_D	L_E	L	Φ AC	HF	Φ Da	Φ Db	Ea	Eb	E	G	L.S.	O.S.
63	F	115	95	140	10	3	10	27	60	200	116	175	11	12	80	80	160	10	6201	6201
71	F	130	110	160	10	3	10	31	65	213	130	176	14	15	80	80	160	13	6202	6202

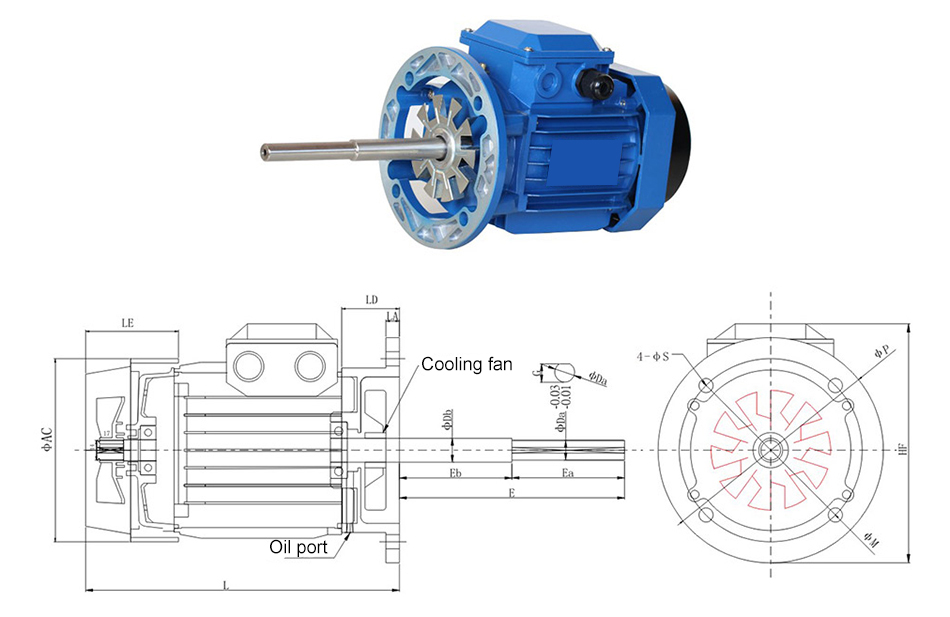

Heightening Flange

Motor Base Center Height	Insulation Class	Flange Mounting Dimension				L_A	L_D	L_E	L	Φ AC	HF	Shaft Dimension						Bearing
Motor Base Center Height	Insulation Class	Φ M	Φ P	Φ S	T	L_A	L_D	L_E	L	Φ AC	HF	Φ Da	Φ Db	Ea	Eb	E	G	L.S.	O.S.
63	F	115	140	10	-	9.5	41	60	214	116	175	11	15	80	80	160	10	6202	6201
71	F	130	160	10	-	9.5	41	65	223	130	176	14	17	80	80	160	12	6203	6202
