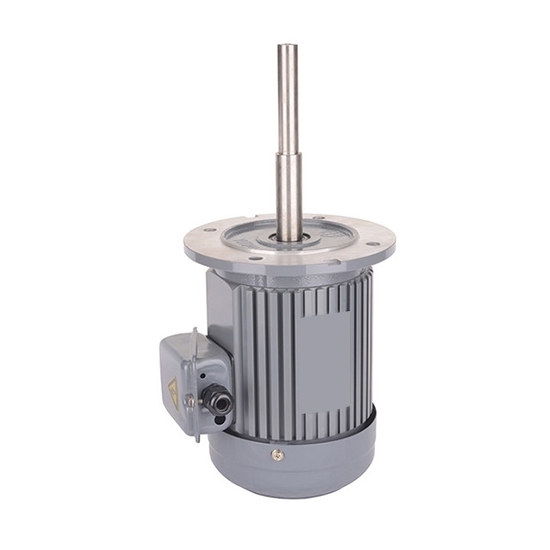

    1 hp/2 hp 180mm Long Shaft Induction Motor, 2800 rpm

    $416.46
    Buy long shaft AC induction motor at good price. Shaft length 180mm, working power 1 hp (750W) or 2 hp (1500W) for selection, speed 2/4/6 poles, 910~2800 rpm, max torque 2.3 N.m, rated voltage 100-380V, single phase/3-phase. Long shaft induction electric motor suits 90 flange, 200℃ high temperature resistance.
    SKU: ATO-LSIM-12180
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Long shaft AC induction motor for sale. Rated power 1 hp (0.75kW) or 2 hp (1.5kW), power supply single phase/3-phase 100~380V, optional speed 2/4/6 poles, maximum 2800 rpm. AC induction electric motor with 180mm long shaft, suitable for high temperature use, small size and high speed.

    Specification

    Model ATO-YTG-B5/B5F
    Rated Voltage Single Phase 100-120V, 50/60Hz
    Single Phase 220-230V, 50/60Hz
    3-Phase 220V, 50/60Hz
    3-Phase 380V, 50/60Hz
    Working Temperature ≤ 200℃
    Output Power Speed (rpm) Current (A) Power Factor (cos Φ) Efficiency (%) Rated Torque (N.m) Start Current (A) Locked-Rotor Torque (N.m) Max Torque (N.m)
    2 Poles
    1 hp (750W) 2800 1.8 0.84 75 2.53 6.5 2.2 2.3
    2 hp (1500W) 2840 3.4 0.85 78 5.04 7 2.2 2.3
    4 Poles
    1 hp (750W) 1390 2 0.76 74.5 5.15 6 2.3 2.3
    2 hp (1500W) 1400 3.7 0.79 79 10.25 6.5 2.3 2.3
    6 Poles
    1 hp (750W) 910 2.3 0.7 72.5 7.87 5.5 2 2.2
    2 hp (1500W) 940 4 0.74 77.5 15.24 6 2 2.2

    Features

    1. Long shaft induction motor adopts IEC international standard size, which is internationally interchangeable and universal.
    2. The rotating part of long shaft AC induction motor has small inertia, large acceleration torque and short start-stop time. Frequent starting and stopping the machine can improve work efficiency.
    3. Long shaft induction motor has low vibration and low noise. The mechanical structure is perfectly designed, and the processing and assembly techniques are excellent. 100% dynamic balance correction, uses high-quality bearings to reduce noise and vibration.
    4. Long shaft induction motor is easy to maintain. High-grade oil-sealed bearings do not need to add or replace lubricating grease.
    5. Long shaft induction motor is small in size and light in weight. The shell is made of ABB and CPG materials, and the shell is stretched, which saves space, is convenient to install, design and construction.
    6. Long shaft AC induction motor uses class F insulation material. The stator coil and insulation materials adopt F grade which is heat-resistant, temperature-resistant and chemical-resistant. Safe and durable, long lifespan. The maximum working temperature can reach 200℃. Vacuum dipping paint treatment prevents the stator coil from regaining moisture.
    7. Protection grade is IP55, dustproof and waterproof, in line with international standards.

    1 hp/2 hp 180mm Long Shaft Induction Motor Dimensions (Unit: mm)

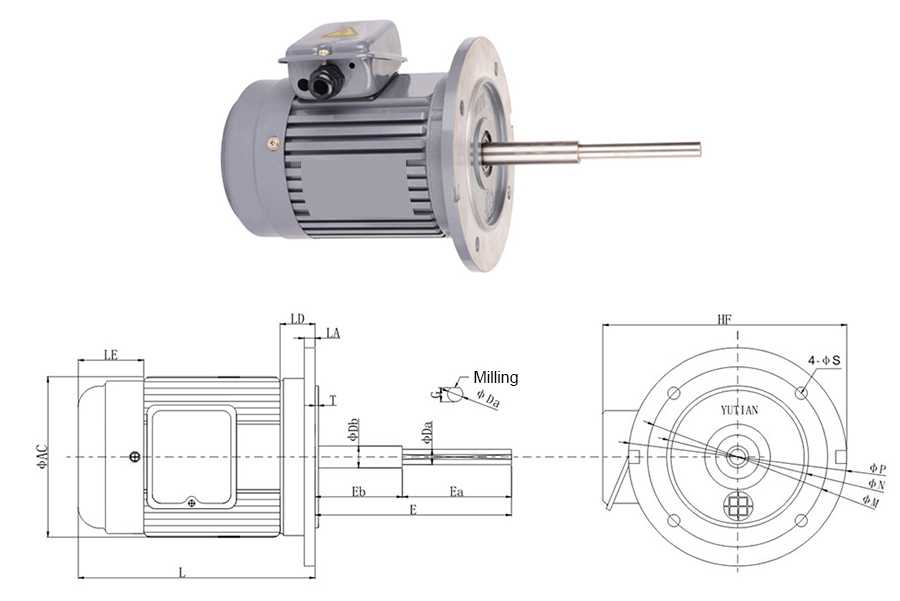

    • Ordinary Flange B5

    Dimensions of 1 hp/2 hp 180mm Long Shaft Induction Motor, 2800 rpm, Ordinary flange

    Flange Motor Base Number Insulation Class Flange Mounting Dimension LA LD LE L Φ AC HF Shaft Dimension Bearing
    Φ M Φ N Φ P Φ S T Φ Da Φ Db Ea Eb E G L.S. O.S.
    90 140 H 165 130 200 12 3 10 35 75 260 165 160 24 25 100 80 180 23 6304 6303

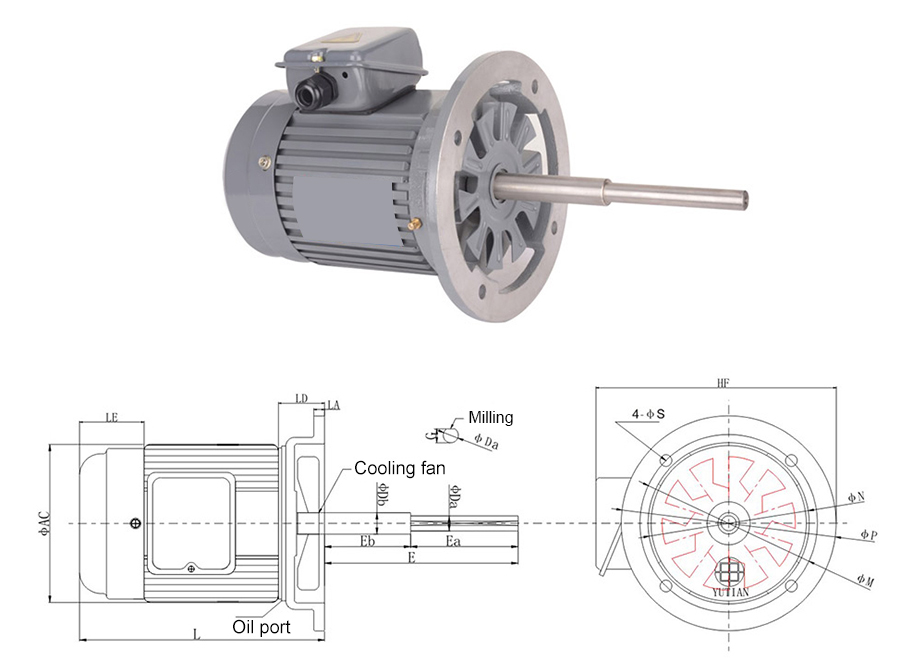

    • Heightening Flange B5F

    Dimensions of 1 hp/2 hp 180mm Long Shaft Induction Motor, 2800 rpm, heightening flange

    Flange Motor Base Number Insulation Class Flange Mounting Dimension LA LD LE L Φ AC HF Shaft Dimension Bearing
    Φ M Φ P Φ S T Φ Da Φ Db Ea Eb E G L.S. O.S.
    90 140 H 165 200 12 - 10 40 75 248 165 160 24 25 100 80 180 23 6304 6303
