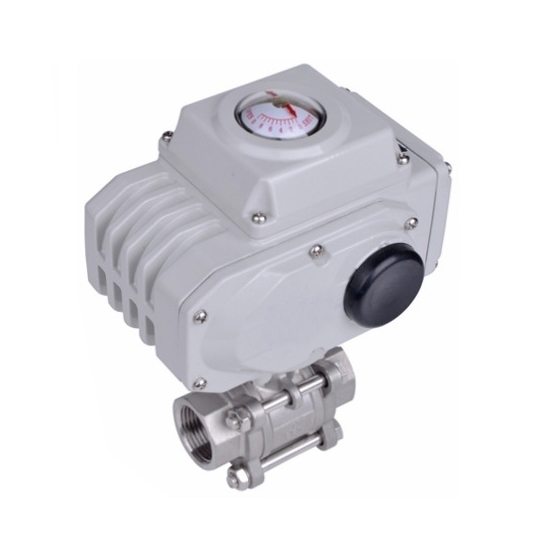

Electric actuated ball valve is composed of a stainless steel ball valve and an aluminum alloy electric actuator. It is high performance and reliable for controlling air, water, oil, gas, liquid, etc.
Specification
Ball Valve |
Model |
ATO-EBV-25B |
Port Size |
1 inch (DN25, 25mm) |
Ball Valve Type (Optional) |
2 Way Threaded Type, 2 Way Flanged Type, 2 Way PVC True Union Type, 3 Way Threaded Type, 3 Way Flanged Type |
Body Material |
Stainless Steel (SS 316/ 304), PVC |
Seat Material |
Plastic (PTFE) |
Environment Temperature |
-10°C to 60°C |
Medium Temperature |
-10°C to 180°C |
Medium Pressure |
1.6MPa |
Electric Actuator |
Model |
ATO-KLST-05 |
Frequency |
50/ 60Hz |
Power Supply (Optional) |
110V AC, 220V AC, 380V AC, 24V DC |
Actuator Input |
4-20mA DC |
Actuator Type |
Double Acting |
Output Torque & Response Time |
15N.m, 10s 30N.m, 20s 50N.m, 30s |
Actuator Material |
Aluminum Alloy |
Body Dimension (Unit: mm)
2 way/ 3 way, stainless steel, threaded type
![2 way 3 way stainless steel threaded type electric ball valve dimension](/Content/Images/uploaded/2-way-3-way-stainless-steel-thread-type-electric-ball-valve-dimension.jpg)
φd |
L1 |
A1 |
A2 |
H1 |
L2 |
H2 |
25 |
90 |
160 |
160 |
173 |
86 |
164 |
2 way/ 3 way stainless steel, flanged type
![2 way / 3 way stainless steel flanged type electric ball valve dimension](/Content/Images/uploaded/2-way-3-way-flanged-type-electric-ball-valve-dimension.jpg)
DN |
L1 |
T |
f |
D |
B |
C |
H1 |
H2 |
A1 |
A2 |
L2 |
N-M |
25 |
150 |
16 |
2 |
115 |
65 |
85 |
188 |
188 |
160 |
160 |
180 |
4-φ14 |
2 way, PVC true union type
![2 way PVC pneumatic actuated ball valve dimension](/Content/Images/uploaded/2-way-pvc-electric-actuated-ball-valve-dimension.jpg)
DN |
D |
D1 |
d |
L1 |
A |
H |
25 |
33 |
44 |
23 |
20 |
160 |
216 |
Three Way Ball Valve Flow Pattern
T Type:
![3 way pneumatic ball valve flow patterns t port](/Content/Images/uploaded/3-way-pneumatic-ball-valve-flow-patterns-t-port.jpg)
L Type:
![3 way pneumatic ball valve flow patterns l port](/Content/Images/uploaded/3-way-pneumatic-ball-valve-flow-patterns-l-port.jpg)
Tips: What is an electric actuated ball valve?
The electric actuated ball valve is composed of only a few parts, small size, light weight, easy to operate, and can be opened and closed quickly just by rotating 90°. And it also has good flow regulation and sealing characteristics. Electric actuated ball valves are not only widely used in general industries such as petroleum, gas, chemical, and water treatment, but also in the cooling water system of thermal power plants.
