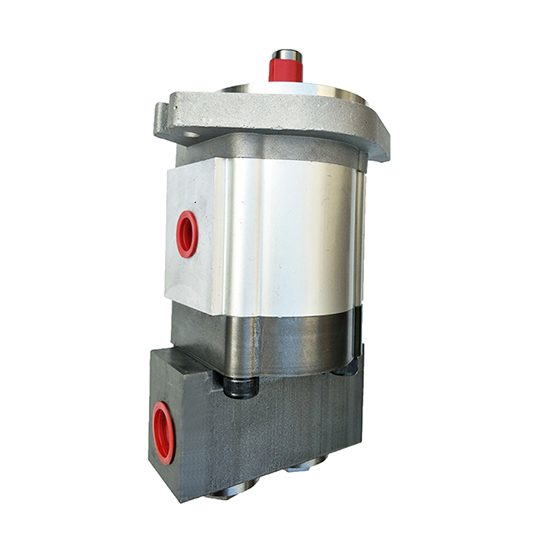

    10/12/13/15 GPM Hydraulic Gear Pump, 3300 psi

    5 out of 5 based on 1 reviews | Write a review
    $402.46
    Competitive price hydraulic gear pump for sale. Displacement 10/12/13/15 GPM optional, working pressure 2600 psi, max 3300 psi, rated speed 1500 rpm, max 2000 rpm, volumetric efficiency 90~93%, mechanical efficiency 85%. 2-way transmission, 1 inlet and double outlet, high-pressure oil outlet direction can be changed according to different rotation directions.
    SKU: ATO-HGPP-0235
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Professional supplier hydraulic gear pump for sale. Displacement 10/12/13/15 GPM for selection, working pressure 2600~3300 psi, speed 1500~2000 rpm, oil inlet/outlet ports thread 3/4 inch, small size, lightweight, high pressure, low price.

    Specification

    Model ATO-KC-3A-ALR1
    Displacement GPM (Gallon/min)
    7.5 8.7 10 12 13 15 16
    mL/ rev
    14.3 16.5 19 23 25 28 30
    Rated Speed 1500 rpm 1500 rpm 1500 rpm 1500 rpm 1500 rpm 1500 rpm 1500 rpm
    Max. Speed 2000 rpm 2000 rpm 2000 rpm 2000 rpm 2000 rpm 2000 rpm 2000 rpm
    Min. Speed 600 rpm 500 rpm 500 rpm 500 rpm 500 rpm 500 rpm 500 rpm
    Rated Pressure 2600 psi (18 MPa) 2600 psi (18 MPa) 2600 psi (18 MPa) 2600 psi (18 MPa) 2600 psi (18 MPa) 2600 psi (18 MPa) 2300 psi (16 MPa)
    Max. Pressure 3300 psi (23 MPa) 3190 psi (22 MPa) 3190 psi (22 MPa) 3190 psi (22 MPa) 3190 psi (22 MPa) 3190 psi (22 MPa) 2900 psi (20 MPa)
    Volumetric Efficiency 90% 92% 93% 93% 93% 93% 93%
    Mechanical Efficiency 85% 85% 85% 85% 85% 85% 85%
    Oil Ports 1 inlet, 2 outlet
    Way of oil in and out Rear in, side out

    Features

    • The hydraulic gear pump has 1 inlet and double outlet ports, which can change the direction of high-pressure oil output according to different rotation directions. It is equivalent to saving a reversing valve.
    • Housing of the hydraulic gear pump is made of high-strength aluminum alloy, and the back cover is made of high-strength cast iron, which has high strength and good pressure resistance.
    • Input shaft connection of the hydraulic gear pump is flat key. Connection of the inlet and outlet ports is 3/4” thread.
    • The automatic compensation mechanism for axial and radial clearance enables the hydraulic gear pump to maintain high volumetric efficiency and mechanical efficiency for a long time.
    • The hydraulic gear pump uses alloy steel gears, with small fluctuations, high pressure, low noise and stable performance.
    • Hydraulic gear pump uses composite material bearings and high-performance sealing elements, has a small starting torque and good tightness, and can work efficiently under harsh working conditions.
    • Oil inlet and outlet pipe joints of the hydraulic gear pump can realize multi-directional inlet and outlet, and support bidirectional rotation. Replace back cover, the hydraulic gear pump can be converted into a hydraulic motor, which meets the needs of different working conditions and save costs.

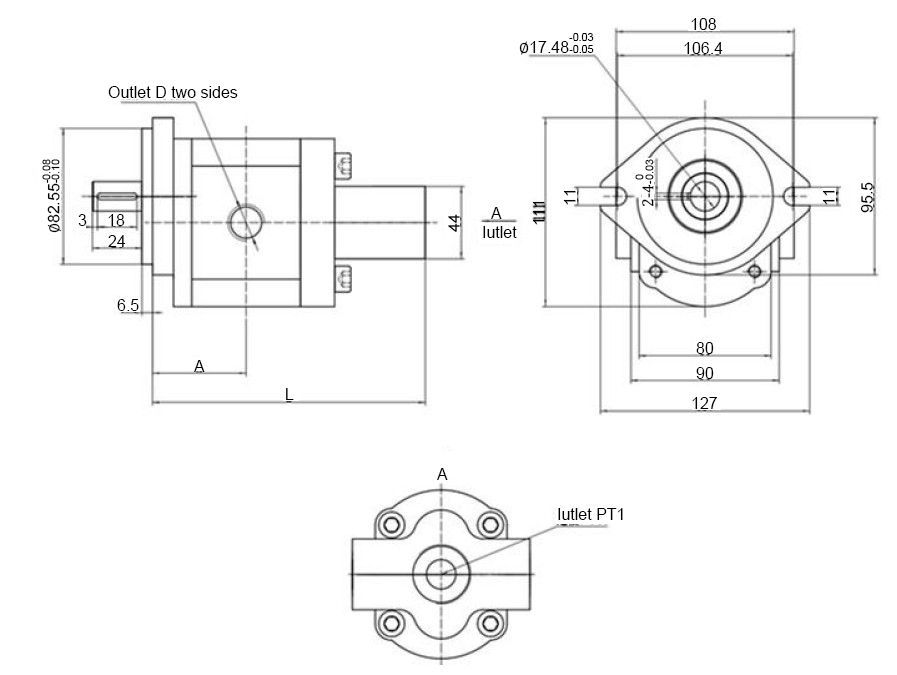

    10/12/13/15 GPM Hydraulic Gear Pump Dimensions Diagram (Unit: mm)

    Dimensions of 10/12/13/15 GPM Hydraulic Gear Pump, 3300 psi

    Displacement A L Outlet D
    7.5 GPM 57 179 PT 3/4 inch
    8.7 GPM 59 183
    10 GPM 61 187
    12 GPM 65 194
    13 GPM 66 197 PT 1 inch
    15 GPM 68 201
    16 GPM 70 205

    Tips: Precautions for using 15 GPM hydraulic gear pump.

    1. The working oil temperature is -20℃ to 80℃.
    2. When using 15 GPM hydraulic gear pump in winter, use 32# anti-wear hydraulic oil. When using 15 GPM hydraulic gear pump in summer, use 46# or 68# anti-wear hydraulic oil.
    3. The working oil filtration accuracy of 15 GPM hydraulic gear pump is ≤25μm.
    4. When using 15 GPM hydraulic gear pump for the first time, pay attention to tighten the pipe joints and to remove the air from pipe and system, to avoid the 2-way gear pump from not working properly.
    5. The front end of 2-way gear pump has no bearing and cannot bear radial force. If you need a radial bearing structure, you can contact us for customization.
    6. 15 GPM hydraulic gear pump can not be used for overspeed or overload, so as not to reduce the service life.
    7. The external drain port of 2-way gear pump must be connected to the oil tank separately, and cannot be mixed with other oil return lines to avoid affecting normal operation.
