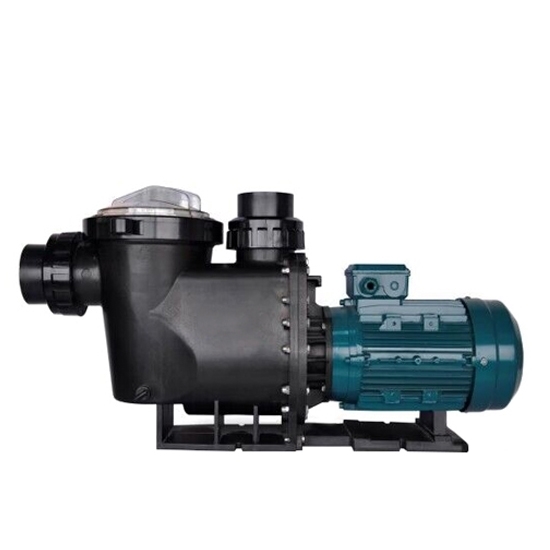

10 HP Pool Pump, 220V / 380V

10 hp swimming pool pump adopts 100% copper motor. The medium temperature of variable speed pool pump between 5 ℃ and 50 ℃. This type of pool pump is relatively powerful and is typically used for larger swimming pools or commercial applications where there is a need for significant water circulation and filtration capacity.

Feature:

• Magnificent flow rate and lift, the core energy of water circulating, 2-3m suction lift.
• Free-tool filter cover design, easy to maintenance.
• IP55 protection level, with none-leaky design.
• 100% copper wire motor, 24 hours running.
• Silicone sealing ring, cover all watering section,enhance pump sealing system.
• Engineering plastic body, pump can be effectively protected under bad weather, long service life.
• Anti rust cast-aluminum motor cover,fast heat dissipation; PPO plastic steel material impeller, resist high temperature and corrosion.

Specification:

• Model: ATO-FLB-100
• Voltage: 220V / 380V (3 phase)
• Frequency: 50 Hz / 60 Hz
• Power: 10 HP (7.5 kW)
• Hmax: 21m
• Qmax: 80 m³/h
• Port Size: 95 mm
• Threaded Connection: G 1-1/2"
• Motor: copper motor
• Medium Temperature: 5 ℃ - 50 ℃
• Protection Level: IP55
• Weight: 66 kg

Dimension (Unit: mm)

Flow Diagram:

Details

Application:

Tips: How Does Pool Pump Work?

Pool pumps use a permanent magnet motor (PMM) to operate. A permanent magnet motor is a kind of motor that uses permanent magnets in addition to windings on its field, as opposed to windings alone. Because of PMM, the pump uses less energy than a single-speed pump to operate. In short, a variable speed pump is able to circulate a swimming pool's water at lower flow rates for a longer period of time without added energy consumption.
