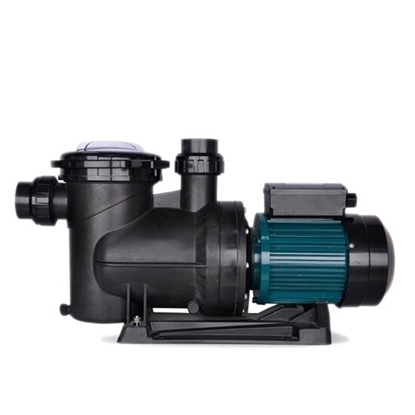

15 HP Pool Pump, 380V

Free tool filter cover design of pool pump motor, easy to maintenance. Medium temperature of 15 hp (11 kW) pool pump between 5 ℃ and 50 ℃.

Feature:

• Magnificent flow rate and lift, the core energy of water circulating, 2-3m suction lift.
• Free-tool filter cover design, easy to maintenance.
• IP55 protection level, with none-leaky design.
• 100% copper wire motor, 24 hours running.
• Silicone sealing ring, cover all watering section,enhance pump sealing system.
• Engineering plastic body, pump can be effectively protected under bad weather, long service life.
• Anti rust cast-aluminum motor cover,fast heat dissipation; PPO plastic steel material impeller, resist high temperature and corrosion.

Specification:

• Model: ATO-FLB-150
• Voltage: 380V (3 phase)
• Frequency: 50 Hz / 60 Hz
• Power: 15 HP (11 kW)
• Hmax: 22m
• Qmax: 110 m³/h
• Port Size: 90 mm
• Motor: copper motor
• Medium Temperature: 5 ℃ - 50 ℃
• Protection Level: IP55
• Weight: 75 kg

Dimension (Unit: mm)

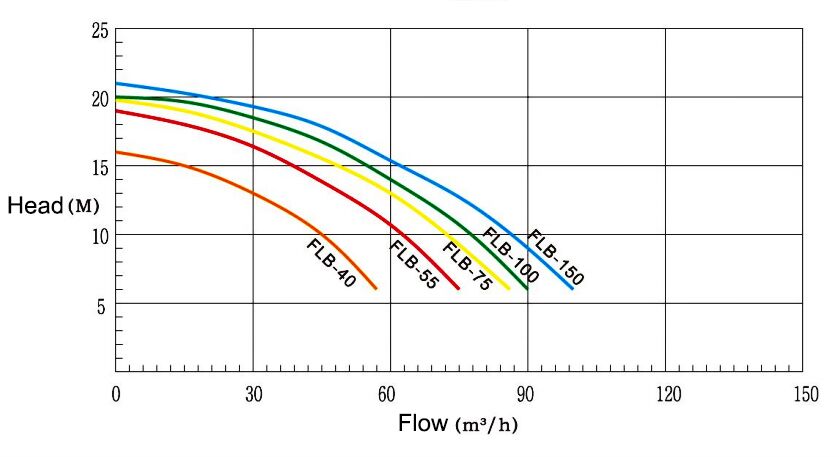

Flow Diagram:

Details

Application:

Tips: Does Pool Pump Really Save Money?

A pool pump could save you up to 90% on your energy costs compared to a conventional single- or two-speed pool pump. They are often quiet when running and many offer built-in programming features and better filtering capabilities.
