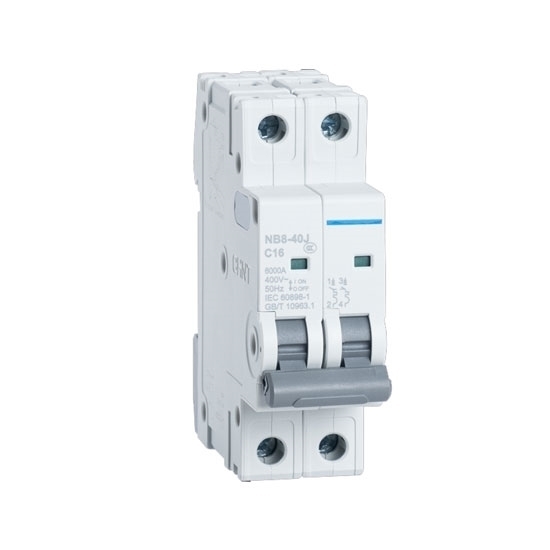

    16 amp 2 pole Miniature Circuit Breaker

    5 out of 5 based on 1 reviews | Write a review
    $62.99
    2 pole 16 amp MCB miniature circuit breaker complies with IEC standards to turn off the electrical circuit during a faulty condition to protect conductors. This C16 mini circuit breaker with c curve trip characteristic, is used in AC 50Hz, 230/400V with a 6 kA short circuit breaking capacity.
    SKU: ATO-MCB-2P16
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Double pole 16 amp miniature circuit breaker (MCB) is designed to provide reliable overload and short-circuit protection in electrical circuits. This micro circuit breaker is commonly used for branch circuit protection in residential settings, ensuring the safety of wiring and connected devices.

    Double Pole MCB Breaker Information

    • Rated Current: 16 amp
    • Rated Voltage: 230/400V AC, 50Hz
    • Number of poles: 2 poles
    • 6 kA rated short-circuit breaking capacity
    • Compliant with IEC standard
    • C curve trip characteristic
    • With overload protection and short circuit protection function

    Technical Data

    Model ATO-NB8-632PC16
    Rated Current 16A
    Rated Voltage 230/400V
    Frequency 50Hz
    Number of Poles 2P
    Mechanical Life 20000 Times
    Electrical Life 10000 Times
    Rated Short-Circuit Breaking Capacity 6000A
    Operating Short-Circuit Breaking Capacity 6000A
    Rated Impulse Withstand Voltage (1.2/50) 6kV
    Dielectric Test Voltage 2000V (50Hz, 1 min)
    Heat & Humidity Resistance 28 Cycles
    Vibration Resistance No Obvious Vibration and Impact
    Terminal Block Terminal Block Type Pillar Terminal Block
    Min. Terminal Size Acceptability 1mm2
    Max. Terminal Size Acceptability 25mm2
    Standard Connection Torque 2 N.m
    Max. Tolerable Torque 2.5 N.m
    Wire Insertion Depth 13mm
    Reference Temperature 30℃
    Operating Temperature -35℃~+70℃
    Storage Temperature 35℃~+85℃
    Applicable Altitude 2000m
    Tripping Mode Thermal Magnetic Trip
    Electromagnetic Tripping Type Type C (5In-10In)
    Shell Flame Retardant Grade V0
    Wire Entry Method Both Upper and Lower
    Installation Method TH35-7.5 Standard Rail
    Protection Level Direct Installation IP20B
    Installed in the Distribution Box IP40B


    Double Pole MCB Breaker Dimensions (Unit: mm)

    16 amp 2 pole Miniature Circuit Breaker Dimensions

    Details

    2 pole Miniature Circuit Breaker Details

    Tips: Different types of break curves of miniature circuit breaker

    • A trip curve: The magnetic tripping current is (2-3) In, which is suitable for protecting semiconductor electronic circuits, measuring circuits with low-power transformers, or systems with long circuits and low currents.
    • B trip curve: The magnetic tripping current is (3-5) In, which is suitable for pure resistive loads and low-voltage lighting circuits. It is often used to protect household power distribution systems, household appliances, and personal safety.
    • C trip curve: The magnetic tripping current is (5-10) In, which is suitable for inductive loads and high-inductance lighting circuits, and is often used to protect power distribution lines and lighting lines with higher on-current.
    • D trip curve: The magnetic tripping current is (10-20) In, which is suitable for systems with high inductive loads and large inrush currents, and is often used to protect equipment with high inrush currents, such as transformers, solenoid valves, etc.

    Types of Circuit Breakers

    In this video, we'll take a closer look at the meaning behind these abbreviations and explain the types of circuit breakers they represent. By understanding the different types of circuit breakers on the market, you can make an informed decision and choose the right type for your specific requirements, thereby enhancing the protection of your electrical infrastructure.

    Isolator vs Circuit Breaker

    Although isolators and circuit breakers have similar functions in a circuit, they are two separate entities. This video explains you the difference between the two devices in terms of working, features, operation, affordability, etc. You can choose between them based on your specific requirements.

    Existing reviews of 16 amp 2 pole Miniature Circuit Breaker
    High quality MCB
    I use this 16A 2 pole miniature circuit breaker as a switch on the DC input side of the PV charge controller. The DIN rules are wide enough and its functions are perfectly, with a nice positive feel at startup. It is a very good and high quality MCB that deserve 5 stars.
    From: Ted | Date: 24/01/2022
    Was this review helpful? Yes No (0/0)
    Load more reviews...
    Write your review for 16 amp 2 pole Miniature Circuit Breaker
    • Only registered users can write reviews
    • Bad
    • Excellent
