    200W Wind Turbine, 12V/24V

    5 out of 5 based on 5 reviews | Write a review
    $326.45
    Low cost 200 watt wind turbine generator for home use/boat, with wind turbine blades, 12/24 volt portable wind turbine can automatically adjust the wind direction, easy to use, no noise, manufacturer direct sales.
    SKU: ATO-WT-S200
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Small wind turbine power 200W, rated voltage can choose 12V or 24V, it can be used in wind solar hybrid streetlight, boat and your home.

    Specification:

    Model ATO-WT-NE-200S5
    Matched Controller Model ATO-WTC-400
    Rated Power 200W
    Maximum Power 220W
    Rated Voltage 12V/24V
    Start Up Wind Speed 2.0 m/s
    Starting Torque < 0.1Nm
    Rated Torque 2.55 Nm
    Rated Wind Speed 10 m/s
    Survival Wind Speed 55 m/s
    Wheel Diameter 1.3m
    Blase Number Nylon Fiber
    Generator Three Phase Permanent Magnet AC Generator
    Magnetic Steel NdFeB
    Generator Case Die-Casting Aluminum
    Controller System Electromahnet
    Speed Regulation Automatically Adjust Windard
    Installation Flange DN20
    Working Temperature -40°C~80°C
    Gross Weight 11kg
    Top Net Weight 6.2kg
    Service Life 15 years
    Warranty 18 months
    Package Dimensions 670*280*210mm

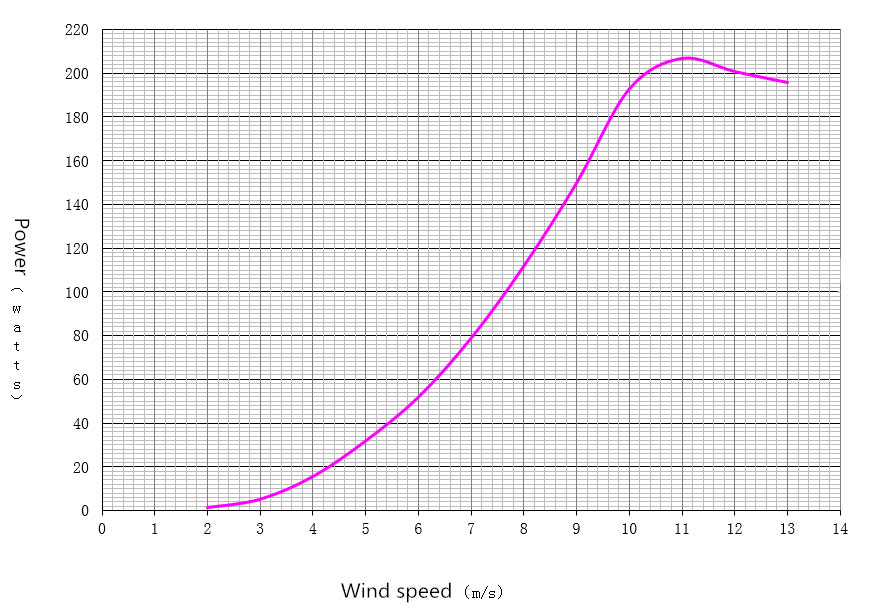

    200W Wind Turbine Power Curve
    200W wind turbine power curve
    Dimensions
    Wind generator dimensionsFeatures
    1. The starting speed is slow, and 3 or 5 blades can be selected in different wind speed regions, and the wind energy utilization rate is high.
    2. Easy to install, tube or flange connection is optional.
    3. The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
    4. Cast aluminum alloy body, can rotate 2 bearings, can resist strong wind, safer operation.
    5. Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.

    200W Wind Turbine (Flange Seat) Exploded View
    100W wind turbine exploded view

    1. Wind turbine body, 2. Wind turbine flange seat, 3. Tower, 4. Wind turbine shaft, 5. Wind hub, 6. Wind wheel, 7. Lock nut, 8. Fairing, 9. Bolt, 10. Flat washer, 11. Elastic washer, 12. Nuts, 13. Stainless steel nut, 14. Anti-loose nut, 15. Rubber pad.

    Tips: Advantages of wind turbine

    Wind energy resources are inexhaustible, the use of wind power can reduce environmental pollution, save coal, oil and other conventional energy. Wind power generation technology is mature, relatively low cost in renewable energy, has broad prospects for development. Wind power generation technology can be applied flexibly. It can be connected to the grid or operated independently from the grid. It can also be combined with other energy technologies to form complementary power generation systems. Small wind turbines can provide electricity for production and living in remote areas.


    Existing reviews of 200W Wind Turbine, 12V/24V
    Good 200W Wind Turbine
    Buying this wind turbine saved me $ 60. I love this small wind turbine. Everything works well, three blades are enough, easy to use. The wind is stable. I installed it around the top of the tree.
    From: Carry | Date: 18/01/2020
    Was this review helpful? Yes No (1/0)
    I am very satisfied, especially for the price
    I added a solar/wind controller with resistors, so I also needed a wind turbine, easy to install, the point is that it runs very quietly and I don't have to worry about annoying my neighbors.
    From: Silas | Date: 20/04/2022
    Was this review helpful? Yes No (0/0)
    Do you ship to Cape Town Soth Africa?
    Looking to add a wind turbine to a PV system with inverter - would the inverters in your range work in this set up? Was thinking of adding your turbine and controller directly to the lithium battery as an alternative charging source?

    Do you ship to Cape Town Soth Africa? I would order as a company if viable.
    From: Abner | Date: 26/05/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, we ship To Cape Town South Africa, and you can order as a company, no problem. ATO wind turbine and wind turbine MPPT charge controller can charge lithium batteries, no problem.

    But we want to know,  What are the rated voltage and maximum protection current of the lithium battery? What is the output voltage and maximum current of the PV panels you are using? We need this information to recommend a suitable models.
    Looking to add a wind turbine to a PV system with the inverter.
    Looking to add a wind turbine to a PV system with the inverter. Would the inverters in your range work in this setup? Was thinking of adding your turbine and controller directly to the lithium battery as an alternative charging source?
    From: Rosenlof | Date: 30/05/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, wind turbines and wind turbine MPPT charging controllers can charge lithium batteries.
    High quality wind turbine
    I bought this 200W wind turbine two months ago. No problems have been found so far. This is the third one that I have purchased love this wind turbine have not had a problem. One thing I can say definitely on the quality is very good.
    From: Paulo | Date: 13/06/2022
    Was this review helpful? Yes No (0/0)
