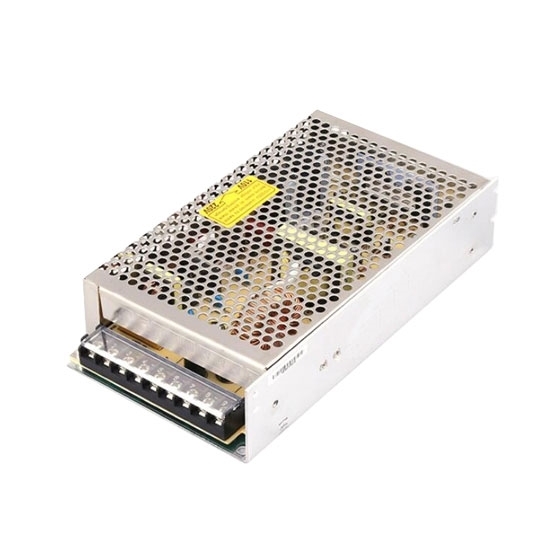

    24V DC 8.3A 200W Switching Power Supply

    $55.58
    Low price switching power supply transforms the full range of AC input to a stable DC voltage of 24V at the rated power 200W and rated current 8.3A, high efficiency and high reliability SMPS ideal for LED lights, printers, computers, monitoring cameras, industrial control, etc.
    SKU: ATO-SMPS-200-24
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Features

    • Universal AC input range selectable by a switch
    • Protections: short circuit, overload and overvoltage
    • Cooling by free air convection
    • LED indicator for power on
    • 100% full load burn-in test
    • Low cost and high reliability

    SMPS Power Supply Applications

    • Power Tools
      Electric Saw, Drilling Machine, Ginder, Sand Blast Machine, Puching Machine, Weeding Machine, Air Compressor, etc.
    • Offices Devices
      Computer, Printer, LCD Monitor, Scanning Machine, etc.
    • Electrics & Household Appliance
      TV, VCRS, Radio, Dust Collector, Fan Lamp or LED Strip, Sewing Machine, Microwave Oven, Fridge/Freezr, Coffemarker, etc.
    • Industrial Equipemnt
      Monitoring Equipment, Shipping, Vehicle, Metalhalide Lamp, Solar System, Wind Power Generation, etc.

    24V DC 8.3A 200W SMPS Specification

    Model ATO-S-200-24
    Output
    DC Voltage 24V
    Rated Current 8.3A
    Current Range 0 ~ 8.3A
    Rated Power 200W
    Ripple & Noise (Max.)(Note 2) 100mVp-p
    Voltage Adjust Range 21 ~ 28V
    Voltage Tolerance (Note 3) ±1.0%
    Line Regulation ±0.5%
    Load Regulation ±0.5%
    Setup, Rise, Holdup Time 100ms, 50ms, 20ms at full load
    Input Voltage Range 88 ~ 132VAC/176V~264VAC (selected by a switch) or 255 ~ 370VDC
    Frequency Range 47~63Hz
    Efficiency (Typ.) 85%
    AC Current (Typ.) 3.2A/115V AC 1.6A/230V AC
    Inrush Current (Typ.) Cold start: 35A
    Leakage Current <3.5mA/240V AC
    Protection Overload 105~150% rated output power
    Protection type: Shut down output voltage, re-power on to recover.
    Overvoltage 30~34.8V
    Protection type: Shut down output voltage, re-power on to recover.
    Environment Working Temperature -10 ~ +60℃
    Working Humidity 20~90% RH non-condensing
    Storage Temperature -20~+85℃
    Storage Humidity 10~95% RH non-condensing
    Temperature Coefficient ±0.03%/℃ (0~50℃)
    Vibration 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
    Safety & EMC (Note 4) Safety Standards UL1012 Approved
    Withstand Voltage I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
    Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70% RH
    EMC Emission Compliance to FCC Part 15 J conduction Class B
    EMC Immunity Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, light industry level, criteria A
    Others MTBF ≥286.7K hrs MIN. MIL-HDBK-217F (25℃)
    Dimension 199*110*50mm (L*W*H)
    Weight 0.8kg
    Note 1. All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25°C of ambient temperature.
    2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
    3. Tolerance includes set up tolerance, line regulation and load regulation.
    4. The switching power supply is considered a component which will be installed into final equipment. Please make sure that the final equipment still meets EMC directives.

    200W SMPS Dimension

    150W switch-mode power supply dimensionSMPS terminal pin number assignment

    Tips: Troubleshooting switching power supply (SMPS)

    1. There is voltage output, but the voltage remains too high.

    This SMPS malfunction is mainly caused by regulated sampling circuit and regulated control circuit. DC output, sampling resistance, error sampling amplifier (such as TL431), opt coupler, and control circuit of power supply form up a closed control circuit. Any problem at the circuit will lead to over tension of the output voltage.

    2. Poor load capacity

    Poor load capacity is a common malfunction of switching power supply. It is often seen at traditional power supplies or those which work for long hours. It is caused by aging components, unstable switch tube, or poor cooling condition. Users shall check and confirm the status of regulated diode, rectifier diode and HV smoothing capacitor etc.
