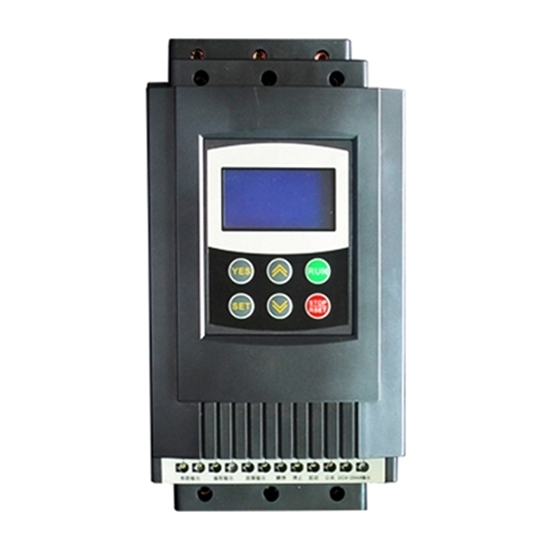

25 hp AC motor soft starter, 18 kW three phase 220v, 400v, 460v, 690v motor soft starter.
| Model |
GS2-018 (220v, 240v), GS3-018 (380v, 400v, 415v), GS4-018 (460v, 480v), GS6-018 (690v). |
| Capacity |
25 hp (18 kw) |
| Current |
37 amps |
| Weight |
5 kgs |
| Dimension |
270*146*160 mm |
| Input |
Voltage |
Three-phase 230v, 415v, 480v, 660v AC |
| Frequency |
50Hz/ 60Hz |
| Adaptive Motor |
Squirrel-cage three-phase asynchronous motor |
| Starting Times |
It is recommended not to exceed 20 times per hour. |
| Control Mode |
- Operation panel control.
- Operation panel + external control.
- External control.
- External control + COM control.
- Operation panel + external + COM control.
- Operation panel + COM control.
- COM control.
- No start or stop operation.
|
| Start Mode |
- Current-limiting to start.
- Voltage ramp to start.
- Torque control + current-limiting to start.
- Torque control + voltage ramp to start.
- Current ramp to start.
- Voltage current-limiting double closed-loop start.
|
| Stop Mode |
- Soft stop.
- Free stop.
|
| Protective Function |
- Open loop protection for external instantaneous stop terminals.
- Over-heat protection for soft starter.
- Protection for too long starting time.
- Input open phase protection.
- Output open phase protection.
- Unbalanced three-phase protection.
- Starting over current protection.
- Running overload protection.
- Under voltage protection for power voltage.
- Overvoltage protection for power voltage.
- Protection for fault parameter setting of the soft starter.
- Load short circuit protection.
- Auto restart or incorrect wiring protection.
- Incorrect wiring protection of external control stop terminals.
|
| Ambient |
Place to be used |
Indoor location with good ventilation free from corrosive gas and conductive dust. |
| Altitude |
Below 1000M. It has to increase the soft starter rate power when the altitude is more than 1000M. |
| Temperature |
-30 +55 oC |
| Humidity |
90%RH without dew condensation. |
| Vibration |
<0.5G |
| Structure |
Enclosure |
IP 20 |
| Cooling |
Natural wind cooling. |
Tips: Soft starter application fields
The soft starter can effectively limit the starting current of AC asynchronous motor, and can be widely used in fans, water pumps, transportation, compressor and other loads. It is the ideal replacement product of traditional star-delta conversion, self-couple decrease-voltage, and magnetic-control decrease-voltage equipment. AC motor soft starter has a very good energy saving effect. It uses a thyristor to reduce voltage, the power factor is low when the soft start load is light, and the soft starter can improve the power factor by reducing the control voltage, in order to achieve light load energy saving effect. The fans, pumps and other load starting torque is low, the torque will increase with the speed. When using the soft start mode can reduce the inrush starting current well, and in the shutdown we can use soft-stop to avoid water hammer effect. When you need to reduce the exciting current, you can change the effective value of the output voltage, so to achieve the purpose of adjusting the speed, while improving the system power factor, achieving optimizing the energy saving effect.
