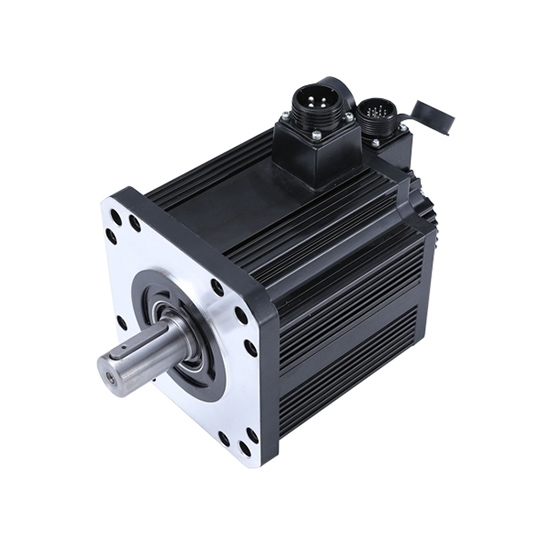

6 hp (4.5 kW) AC Servo Motor, 20 Nm, 2000 rpm

5 out of 5 based on 1 reviews | Write a review

$1,746.85

High torque servo motor, 6 hp (4.5 kW) brushless AC servo motor, three phase 380V/220V AC input voltage, rated speed 2000 rpm, 20Nm rated torque and peak torque to 53 Nm, equipped with a 2,500 PPR incremental encoder.

Motor Encoder Type *
Absolute Encoder *
With Brake *
With Matched Controller *
Rated Voltage *
Motor Cable & Encoder Cable *

SKU: ATO-SERVO-180S4500W

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Documents
Related Video

Cheap AC brushless servo motor is 4.5 kW, 2000 rpm, 220V/380V, max speed up to 5500 rpm. Heavy duty electric servo motor is available in a 180mm square flange size, widely used in industrial automation, embroidery machines, printing machinery, CNC machine, wood carving and other fields.

Basic Specifications

Model: ATO180ST-M21520
Matched Drive Model: ATOMG-1000
Rated Power: 4.5 kW (6 hp)
Rated Voltage: 3-phase 380V AC (Optional: 220V AC)
Rated Current: 9.5 A
Rated Speed: 2000 rpm
Rated Torque: 20 Nm
Peak Torque: 53 Nm
Square Flange Size: 180 mm
Weight: 22.2 kg

Technical Parameters

Torque Inertia: 7.96x10^-3 Kg.m²
Brake Voltage: 24V DC
Incremental Encoder Line: 2500 PPR
Absolute Encoder: 17 bit, 23 bit
Insulation Class: Class F
Protection Grade: IP65

Features

Accuracy: ATO AC servo motors realize closed-loop control of position, speed and torque, overcome the problem of stepper motor out-of-step.
Speed: Good high-speed performance, rated speed can reach 1000-3000 rpm.
Adaptability: ATO heavy duty servo motors with strong anti-overload capability, able to withstand a load three times the rated torque, especially suitable for occasions with instant load fluctuations and requiring quick start.
Stable: Our AC brushless servo motors have smooth low-speed operation, no stepping phenomenon similar to stepper motor will occur when running at low speed, suitable for occasions occasions requiring fast response.
Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds.
Safety: ATO AC servo motor protection grade is IP65, which meets the waterproof and dustproof requirements.

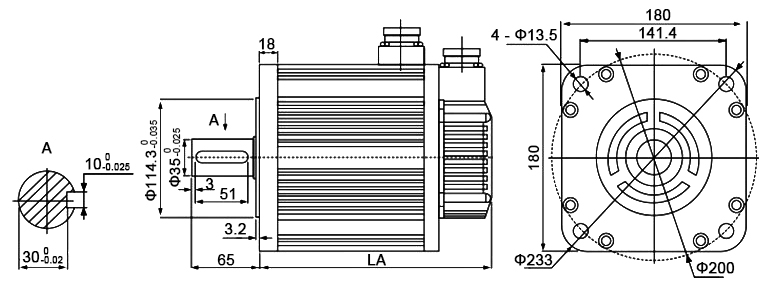

Motor Dimension (unit=mm)

6 hp 20Nm servo motor 180 dimension LA (without brake): 243mm, LA (with brake): 325mm

Details

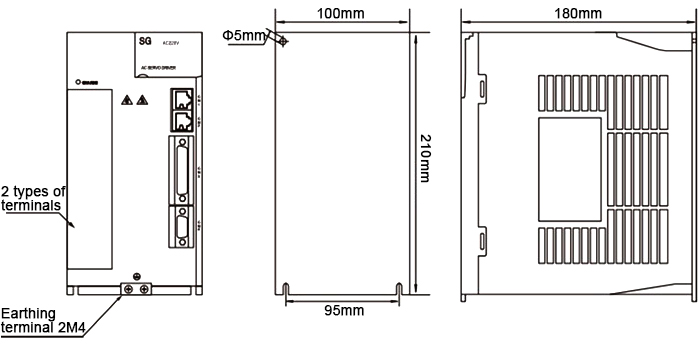

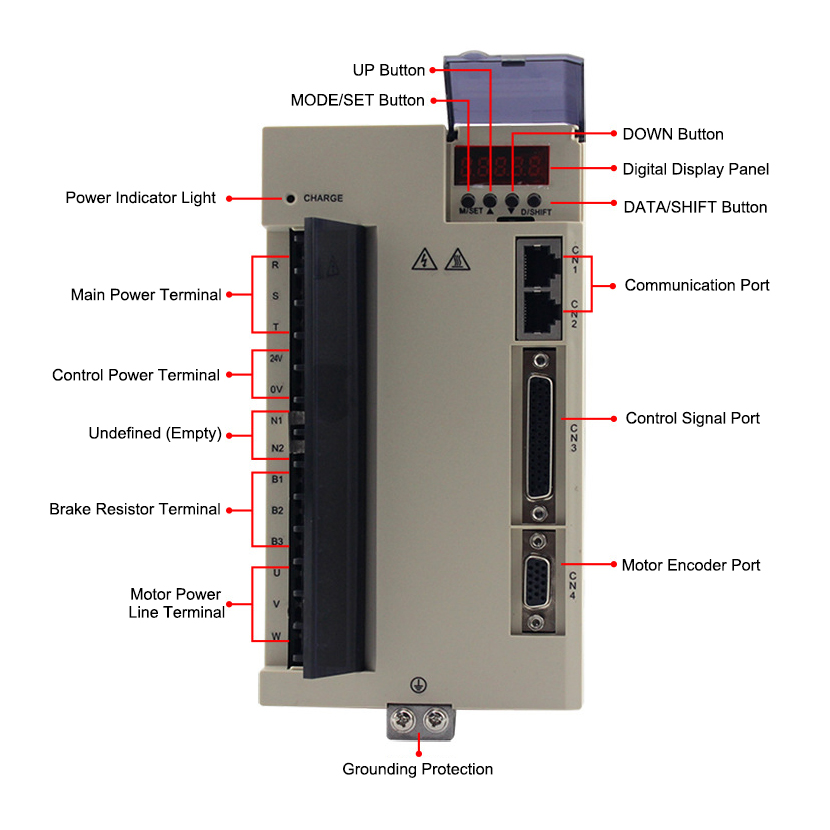

4500W AC Servo Details

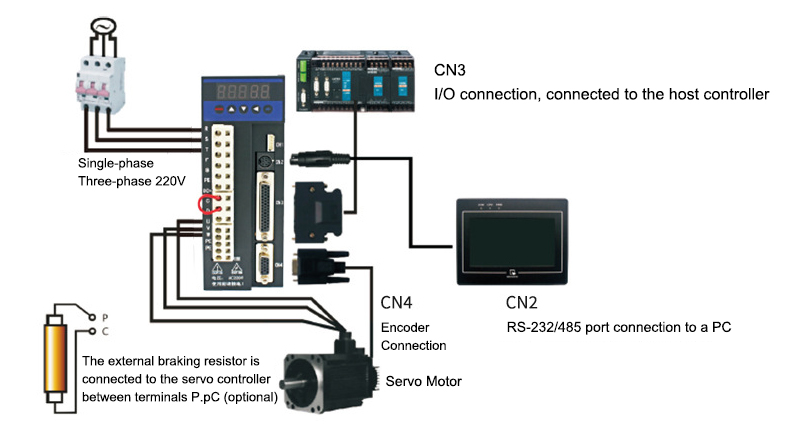

Winding and Encoder Connection

1. For servo motor winding

Motor Winding Plug	Winding Lead	U	V	W	PE
Motor Winding Plug	Socket Number	2	3	4	1

2. For incremental encoder

Incremental Encoder Socket (15 Pin)	Signal Definition	5V	0V	A+	B+	Z+	A-	B-	Z-	U+	V+	W+	U-	V-	W-	PE
Incremental Encoder Socket (15 Pin)	Socket Number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1

3. For absolute encoder

Absolute Encoder Socket (7 Pin)	Signal Definition	E-	E+	SD-	0V	SD+	5V	PE
Absolute Encoder Socket (7 Pin)	Socket Number	2	3	4	5	6	7	1

Tips: Stainless steel servo motors for food packing machine

Stainless steel is the optimal material for corrosion resistance chemical substance and high pressure water flow, which makes it become an important part of food packing machines.
Stainless steel servo motor can reduce extra hardware and improve cleanliness, reliability and performance of machines at the same time. The motors adopt smooth and round design which is easy for cleaning, since meat and fluid will not easily gather in surface. The motor is made of grade-300 stainless steel and it will have special treatment after finishing components to remove impurities and further improve corrosive protection performance. In addition, cable outlets of motors are sealed when they leave factory, which can improve product reliability to the utmost extent.

PDF:

This video briefly shows the application of the ATO servo system in a linear slide.

ATO servo motor has 40mm to 180mm different square flange size, power rating from 50W to 7.5kW and speed range from 1000 rpm to 3000 rpm. so you can select the best one for your applications. In this video, ATO will show you servo motor linear actuator system for robotics.

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.
