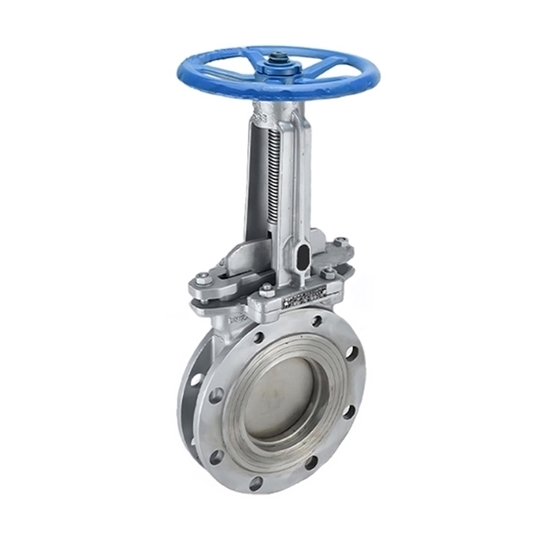

    4" Stainless Steel Wafer Knife Gate Valve

    5 out of 5 based on 2 reviews | Write a review
    $693.75
    The 4-inch stainless steel knife gate valve has strong corrosion resistance, which can effectively prevent seal leakage caused by gate corrosion. Stainless steel clamp knife gate valve has small flow resistance and is easy to install. It is widely used in tap water, sewage, construction, petroleum, chemical industry, food, medicine, textile, electric power, shipbuilding and other industries.
    SKU: ATO-FC-KGV-100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Favorable price 4 inch stainless steel knife gate valve for sale, nominal pressure of 1.6MPa,100mm knife gate valve can improve the closing sealing performance of the conveying pipeline system, maximize the elimination of leakage, will play a positive role in promoting production efficiency and protecting the environment.

    Specification

    • Nominal Diameter: 4 Inch (100mm)
    • Nominal Pressure: 1.6MPa
    • Valve Body Material: Stainless steel 304
    • Connection Form: Clamping method
    • Valve Type: F304 Flanged Wedge Type
    • Applicable Medium: Syrup, paper pulp, sewage swelling, coal slurry, ash, slag water mixture
    • Weight: 14kg

    Features

    • The wafer knife gate valve has a knife type beveled cutout, which has the function of cutting off the medium, so that the wafer knife gate valve is not blocked by the medium.
    • The wafer knife gate valve features light opening and closing, good sealing, good elastic memory and long service life.
    • The 4 inch knife gate valve has a full round passage design and can be set up with multiple flushing ports around the valve body.
    • The stainless steel knife gate valve gate can effectively prevent sealing leakage caused by corrosion.

    Dimension (Unit mm)

    Knife gate valve dimension

    DN L D D1 D2 H N-M Do
    100 52mm 215mm 180mm 135mm 365mm 8-M16 220mm


    Applications

    Knife gate valves are generally used for the circulation of media such as paper pulp, coal ash, chemical materials, sewage, and foodstuffs. ATO stainless steel knife gate valve has the remarkable advantages of light switch, good sealing, good elastic memory, and long service life. It can be widely used in water, sewage, construction, petroleum, chemical, food, medicine, light textile, electric power, ship metallurgy, energy system and another body pipeline as a regulating and intercepting device.Knife gate valve application

    Tips: Why choose a knife gate valve?

    Knife gate valves are lighter in weight and generally have more space inside the valve body, which effectively saves raw materials and reduces production costs. Knife gate valves can also be operated by electronic computers, making them fully automated and increasing the efficiency of the valve. In addition, the knife gate valve can be opened and closed in a very short time. This reduces the waste of resources, increases productivity, and saves resources.

    Existing reviews of 4" Stainless Steel Wafer Knife Gate Valve
    The sealing performance is good
    I recently purchased this 4 "stainless steel wafer type knife gate valve and after using it for a period of time, I am very satisfied with its performance. The knife gate design ensures that the valve has almost no flow resistance when fully opened, ensuring smooth fluid flow, which is very suitable for my application needs. Its sealing performance is also very good, with no leakage at all.
    From: Glorie | Date: 15/10/2024
    Was this review helpful? Yes No (0/0)
    Can you provide the CAD models for the 4" Knife Gate Valve?
    I am still waiting on engineering to verify the fit of the motor.
    But I have received a separate request from a different department.
    Are you able to provide the CAD models for the 4" Stainless Steel Wafer Knife Gate Valve?
    From: sini | Date: 25/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    SKU: ATO-FC-KGV-100
    Unfortunately, we do not provide the CAD models for the model, you can only refer to the external dimensions on the website.
    The lead time will be approx 10 days.
