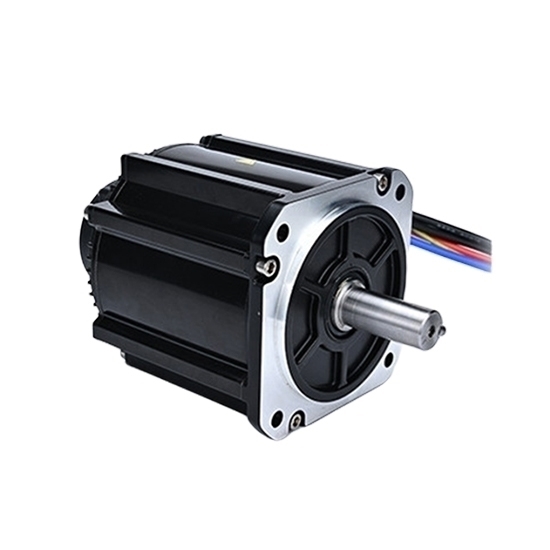

5000W 96V DC Servo Motor, 32Nm, 1500rpm

5KW DC servo motor delivers precise torque control and quick dynamic response for modern automation systems. Designed with a low-inertia rotor and high-resolution encoder, it ensures fast start-stop performance, low noise, and excellent stability.

Basic Specifications

• Model: ATO-180TM32015I5-C; ATO-180TM32015I5-CB
• Rated Power: 5000W
• Rated Voltage: 96V DC
• Rated Current: 64±10%Arms
• Rated Torque: 32 N.m
• Peak Torque: 64 N.m
• Rated Speed: 1500 rpm
• Max. Speed: 2000 rpm
• Weight: 22.7kg; 34kg (with brake)
• Power Line Socket: Signal Leads Color-PE (yellow-green), U (red), V (blue), W (black), 24V (thin red), BRK (thin black)

Technical Parameters

• Vibration Class: Class F
• Line Resistance: ±10% (25 °C)
• Line Inductance: ±10%
• Line Back EMF: 30 V/krpm ±10%
• Torque Coefficient: 0.49 N·m/A ±10%
• Rotor Moment of Inertia: 122 × 10⁻⁴ kg·m² ±10%; 125±10% (with brake)
• Feedback Component: Incremental Encoder, 2500 PPR
• Static Torque: >55Nm (with brake)
• Rated Voltage: DC24V±10% 2.4A (with brake)
• Insulation Resistance: DC 500 V, > 20 MΩ
• Ambient Temperature: -20～+40℃
• Ambient Humidity: 20～80% No Condensation

Features

1. Provides 32 N·m rated and 64 N·m peak torque, delivering stable power for precise motion with the 5000W 96V DC servo motor at 1500 rpm.
2. Runs efficiently with permanent magnet excitation, reducing energy loss and heat for the 96V DC servo motor.
3. Offers accurate feedback control via a 2500 PPR encoder, ensuring precise speed and position in automation use.
4. Built for reliability with an IP54-rated housing, the DC servo motor operates quietly and steadily from –20℃ to +40℃.

Dimension

Encoder Socket

Overload Characteristics

The characteristics are measured in the warm-boot conditions at 40℃:

Tips: Where Servo Motors Are Used?

Servo motors are widely used in industrial automation, where precision and stability are essential. Typical applications include CNC machinery, robotic arms, packaging systems, conveyor equipment, and motion control platforms. They are also found in automated assembly lines, material handling systems, and smart manufacturing, providing accurate positioning, smooth movement, and high efficiency across a range of industries.
