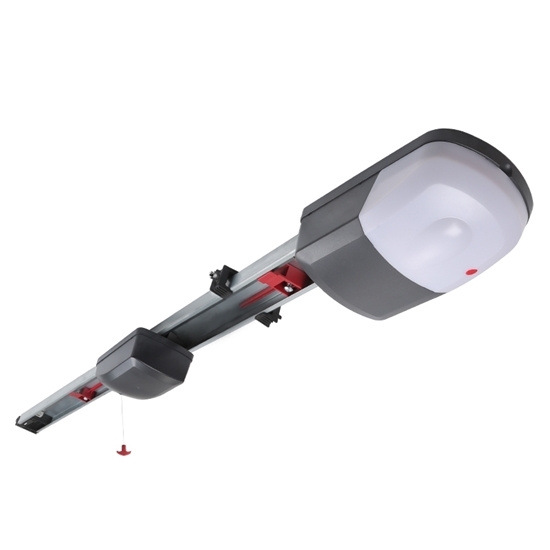

    60W Garage Door Opener, 8m², 160mm/s, 600Nm

    $687.38
    60W garage door opener is suitable for the door area of 8m² with 1.2mm rail and 10m² with 2.0mm rail, The lifting height can reach 2.4 m to 3.4m. The motor power supply system is 110VA. The motor voltage is 24V DC. IP grade 24. ATO provides you with professional and efficient garage door motor.
    SKU: ATO-GDM-60W
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    ATO garage door motor with 60W, torque 600Nm. It is not suitable for solid wood door and industrial door body, but for standard garage door body. Its speed can reach 160mm/s. Professional and cost-effective. 60W garage door opener is also equipped with a variety of convenient accessories. If you need or have any questions please ask our staff we will quickly reply.

    ATO Garage Door Openers Display:

    ATO 60W Garage Door Opener Features:

    • 60W garage door opener adopts the single chain operation mode, which will not produce noise to give you a comfortable and quiet living environment.
    • Different from other motors, ATO garage door motor has independent moving parts, in which it can run directly with the door body. So the push-pull force and stability are relatively strong.
    • Equipped with fast clutch device, whether in normal use or in case of power failure, as long as you pull the clutch handle, you can manually open and close the door at any position. Safety and convenience.
    • Because the moving parts run synchronously with the door body, the slower speed can effectively reduce the impact force of the door body and extend the life of the motor to protect the door body.

    ATO 60W Garage Door Opener Specification:

    Model ATO S12/600
    Torque 600Nm
    Max. Door Area (Insulated Steel Panel) 8m² (1.2mm Rail) / 10m² (2.0mm Rail)
    Lift Height (Optional Door Area) 2.4m (8m²)/ 2.4m (10m²)/ 2.7m (10m²)/ 3.4m (10m²)
    Max.Door Area (Wooden or Industrial Panel) not suitable
    Maximum Speed 160mm/s
    Duty Cycle 30%
    Nominal lnput Voltage 220V AC+10%,50/60Hz
    Motor 24v DC/60W
    Weight 5.5kg
    Transformer 110VA
    Degree of Protection IP40
    Soft Start/Stop Function Yes
    Safety Obstruction Sensing Yes
    Connect to APP Link Smartphone Controller  Available
    Speed Regulation Yes
    Auto Close Function Yes
    Operating Temperature -20°C to +50°C
    Maximum Distance 80m
    TX Capacity Standard 2, Max. 12 Transmitter
    Rail 1.2mm/2.0mm Galvanized Steel+ Fixed Chain
    Height Extendable 1.2mm Rail Not Extendable.2.omm Rail Extendable with 350mm/1000mm

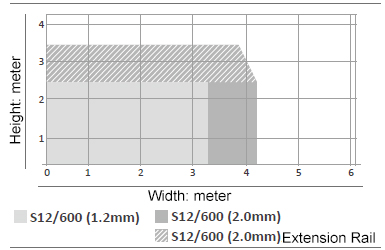

     ATO 60W Garage Door Opener Application:

    ATO garage door opener practical and powerful for domestic sectional and tilt-up garage doors, heavy duty and light industrial doors translucent overhead doors steel panel sectional doors wooden doors, copper doors. It is also widely used in sectional garage door, flip garage door, swing garage door and side mounted garage door.

    60W Garage Door Opener Application

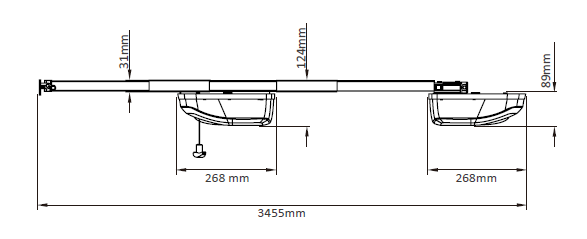

     ATO 60W Garage Door Opener Dimension (Unit: mm)

    60W Garage Door Opener Dimension

    Tips: How to choose the suitable motor model for your garage door?

    1. 60W garage door opener is suitable for doors with an area of 10 m² or less, and the lifting height is about 2.4 meters to 3.4 meters.
    2. 80W garage door opener is suitable for doors with an area of 15 m² or less, and the lifting height is about 2.4 meters to 3.9 meters.
    3. ATO 120W garage door opener is suitable for doors with an area of 21m² or less, and the lifting height is about 2.4 meters to 4.9 meters.
    4. If the width of your door is 4 meters and the height is 2.2 meters, then the area of your door is 4 meters times 2.2 meters, which is 8.8 meters. Choose S12.
    5. If the width of your door is 4.5 meters and the height is 3 meters, then the area of your door is 4.5 meters times 3 meters, which is 13.5 meters. Choose SX12.
    6. ATO will patiently answer all your product questions in the whole process. Come and order.
