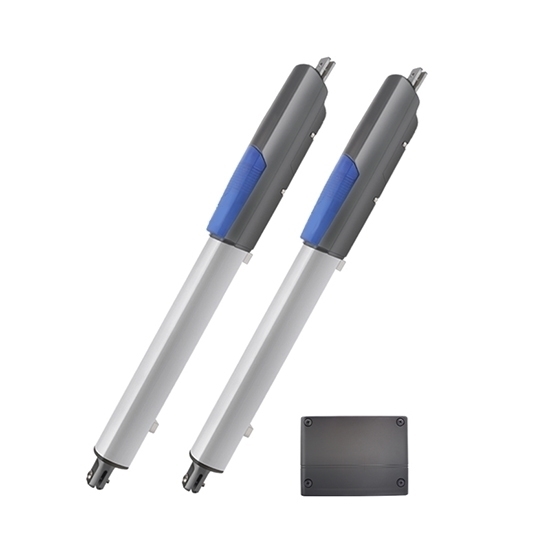

    800kg Swing Gate Opener, 4m, 12mm/s, 120°

    $2,523.07
    Manufacturer direct selling high quality and cost-effective telescopic swing gate opener. The door motor is designed for a single door with a width of 4m. The maximum stroke is 360 mm. The maximum operating speed is 12 mm/s, fast response and order now.
    SKU: ATO-OPENER-800kg
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    ATO swing gate opener with mechanical limit and automatic control. The weight up to 800 kg. Motor voltage is 24V DC. The package weight is 20.8kg for double arm suit and 13.5kg for single arm suit. The remote control distance can reach 80m.

    FEATURES:

    • ATO 800kg swing gate opener has beautiful high strength aluminum alloy shell.
    • It adopts the control box made of polycarbonate material and has the characteristics of strong waterproof.
    • The LED lamp device of motor arm of ATO 800kg swing gate opener .
    • It is equipped with a sophisticated manual clutch device to ensure the normal operation of the store machine in case of power failure.
    • And it has high-grade GnS remote control handle.

    SPECIFICATION:

    Techncal Specifications  ATO PK460
    Max Gate Weight (per leaf) 800kg
    Max Gate width (per leaf)    4m (The use of an electro-mechanic lock is recommanded on leafes longer than 1.8m)
    Max Stroke  Length 300mm
    Max Speed 12mm/s
    Max Opening Angle 120°
    Duty Cycle 40%
    Motor       24V DC
    Degree of Protection       IP54
    Operating Temperature     -20C to +50°C
    Limit Switch Type      Mechanical limit switches with electronic running way adaption
    Radio Keeloq hopping code, 433mHz
    TX Capacity       Standard 2, max. 27 transmitter (remotes)
    Maximum Distance 80m
    Weight(Double Arm/Single Arm) 20.8kg /13.5kg

    DIMENSION (Unit=mm)

    pk460

    APPLICATIONS:

    ATO swing gate openers are widely used all over the world and many kinds of places. Such as steel gates, aluminum gates, wooden gates, industrial floding doors.

    TIPS: The ATO 800kg Swing Gate Opener Cautions for Use

    1. The ATO 800kg swing gate opener  body area should be at least 50% open for wind force relief,
    2. Gate length per leaf should not exceed 2.5m (PK260), 3.0m (Pk460).
    3. If gate length per leaf exceeds 1.8m, the installation of an electrome chanical ground-lock is mandatory, important requirements
    4. This product must be installed by a qualified installer in accordance with allapplicable codes and standards.
    5. Instructions in this manual must be understood and be followed thoroughly.
    6. Children or disabled persons are not allowed to operate this product.
