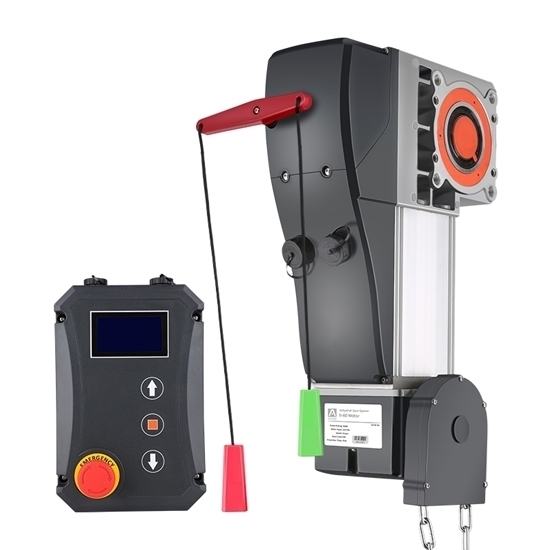

    500W Industrial Door Opener, 65Nm, 35m² Area, 2.27A

    5 out of 5 based on 1 reviews | Write a review
    ATO 500W industrial door opener uses chain manual and clutch manual two ways . Torque 65Nm, area up to 35m², lifting height up to 5m, frequency up to 20%, continuous operation less than 10min. The shaft diameter is 25.4mm and can be dimensioned.
    30-day Returns
    Delivery date: 6-12 days


    • ATO 500W industrial door motor with 2.27A, 65N.m, 18 turns has stable limit switch machine turbine worm fine adjustment device to make limit adjustment more stable and correct.
    • This kind of door motor is installed with convenient aviation plug and waterproof male female interface to prevent wrong wiring and make installation more convenient.
    • More powerful motor, equipped with DC system, brushless motor, powerful, no heat, no consumption, long service life, with resistance rebound safety protection function.
    • Corrosion resistant chain. High corrosion resistant chain in case of power failure, the gate can be opened manually.
    • Quick clutch handle in case of power failure, pull the red handle to open and close the door manually.
    • Smart control system, The shell adopts modern industrial design. The fuselage is small and beautiful, and the external LCD screen is more convenient and fast.
    • ATO 500W industrial door openers are also equipped with a variety of convenient accessories. If you need or have any questions please ask our staff we will quickly reply.


    ATO high quality and high performance industrial door motor can be used in fire brigade, 4S shop, storage door, solid wood garage door.


    ATO h-60
    Rated Torque
    Maximum Door Area
    Maximum Lift Height
    Power Rating
    Rated Current
    Nominal Input Voltage
    220V AC ± 10%, 50/60Hz
    Start-up Current
    Manual Release Upon Power Failure
    Pull-rope release / Quick release
    Duty Cycle
    20% (Maximum Runtime Not Exceed 10min)
    Rated Speed
    Maximum Turns
    Output Shaft Hole Diameter
    25.4mm / Customize
    Maximum Travel
    19 rounds rotation of output shaft
    Operating Temperature
    -20°C to +45°C
    Noise Level
    Degree of Protection
    Slow Start / Stop Function
    Safety Obstruction Sensing
    Connect to APPLink Smartphone Controller
    Insulation Level
    Maximum Surface Temperature

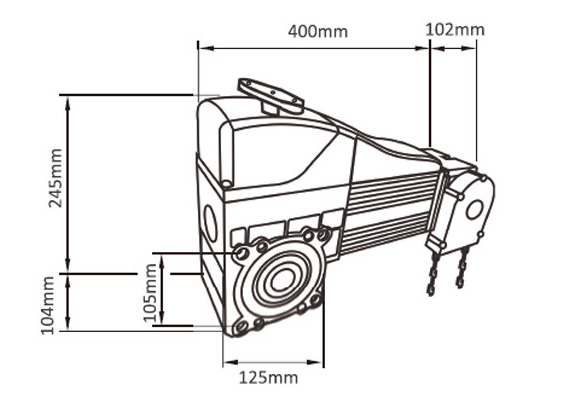

    ATO 500W Industrial Door Opener Dimension:

    ATO500W Industrial Door Opener

    Tips of ATO 500W Industrial Door Opener:

    1. ATO 500W industrial door motor's chain, made of corrosion resistant material, allows opening and closing by hand in the event of a power failure.
    2. Quick Release Lever, pull the handle to simply open and close the door by hand.
    3. Standard 25.4mm hollow shaft special diameters up to 35mm orhexagonal solutions available.
    4. Precise micro-adjusting limit device with mechanical worm wheeland worm rod.
    5. Travel cut-out with combined mechanical (OPEN) and electronic (CLOSE) limits.
    6. High power brushless DC motor with safety obstruction sensing for noiseless, extremely longlife usage.
    7. Housing made of structural grade die cast aluminium alloy.
    8. Full featured external control unit: deadmen & press-and-release.
    9. Mode, LCD panel,variety of terminal blocks for connecting widerange of safety devices,
    10. Receivers and other command devices. Housing and fixing holes waterproof up to lP54.
    11. ATO 500W industrial door has multi-language LCD panel ensures easy setup and adjustment of all available functions. Emergency stop for reliable and immediate power cut-off in case of emergency.
