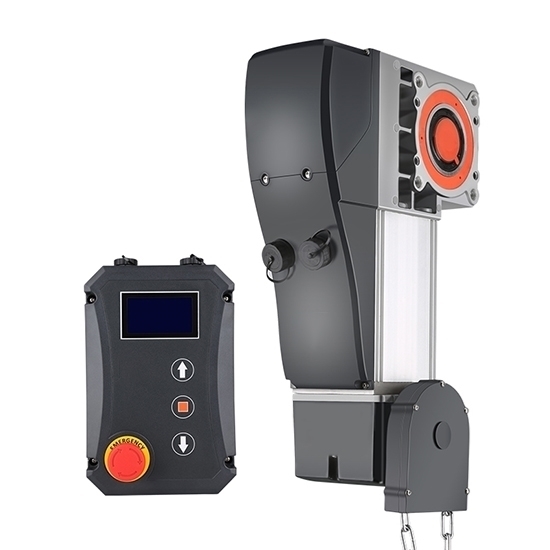

    1kW Industrial Door Opener, 150Nm, 55m² Area, 7m

    $2,956.15
    Chain type manual lifting 1kW industrial door opener, suitable for door area up to 55², lifting height up to 7m. Drive Torque is 155Nm, rated current is 4.55A and sleeve shaft diameter is 25.4mm. 1kW industrial door opener is also equipped with a variety of convenient accessories. If you need or have any questions please ask our staff we will quickly reply.
    SKU: ATO-OPENER-1000W
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Features:

    • ATO industrial door motor with 1kW, 2.5A start-up current can adjust the speed of the door body in place through the control system to easily protect the door body from damage.  The output shaft can rotate up to 19 turns.
    • This type of door motor has the effect of anti pressure, anti shock and rebound in case of resistance. When the door encounters obstacles during operation, the door will move towards the closing direction, so there is no need to worry about the staff's goods being crushed by the door.
    • The door motor is also equipped with an emergency button. In case of emergency, pressing the pause key can effectively protect the door body and finance.
    • ATO provides you with extremely safe and convenient door motor to effectively protect your body and property safety.

    Applications:

    ATO high quality and high performance industrial door motor can be used in fire fighting floding door, 4S shop, storage door and warehousing door.

    ATO 1.0Kw Industrial Door Openers Specification:

    Model
    ATO i-150
    Rated Torque
    150N.m
    Maximum Door Area
    55m²
    Maximum Lift Height
    7m
    Power Rating
    1.0kW
    Rated Current
    4.55A
    Nominal Input Voltage
    220V AC ± 10%, 50/60Hz
    Start-up Current
    2.5A
    Manual Release Upon Power Failure
    Pull-rope release
    Duty Cycle
    20% (Maximum Runtime Not Exceed 10min)
    Rated Speed
    22rpm
    Maximum Turns
    18
    Output Shaft Hole Diameter
    25.4mm / Customize
    Maximum Travel
    19 rounds rotation of output shaft
    Operating Temperature
    -20°C to +45°C
    Noise Level
    <50dB
    Degree of Protection
    IP54
    Slow Start / Stop Function
    Yes
    Safety Obstruction Sensing
    Yes
    Connect to APPLink Smartphone Controller
    Available
    Insulation Level
    F
    Maximum Surface Temperature
    80°
    Weight
    19.8kg

     ATO 1.0Kw Industrial Door Opener Dimension (Unit=mm)

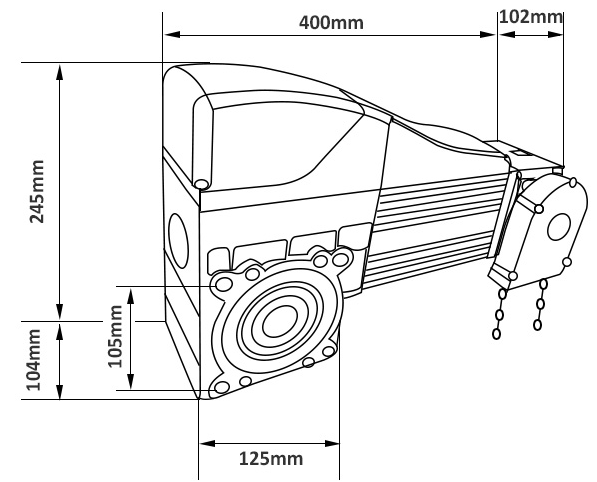

    1kW industrial door opener dimension

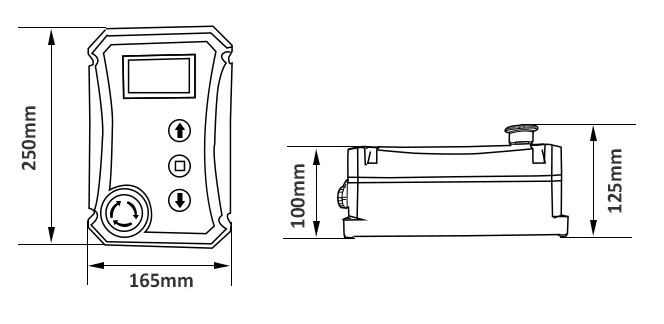

    1kW industrial door opener dimension2

    Tips: What are the installation requirements?

    1. 1kW industrial door opener is properly balanced and aligned. The door does not rise or fall by itself whenstopped at any position.
    2. The door can easily be opened or closed manually by applying only minimum forcewith one hand.
    3. Lifting hight of the door shall not exceed 5m (for i-60 and h-60) or 7m (for i-110 and i-150).
    4. This product must be installed by a qualified installer in accordance with all applicablecodes and standards.
    5. Instructions in this manual must be understood and be followed thoroughly.
    6. Children or disabled persons are not allowed to operate this product.
    7. Violation of any of the above mentioned requirements will lead to immediatetermination of all warranty terms.
