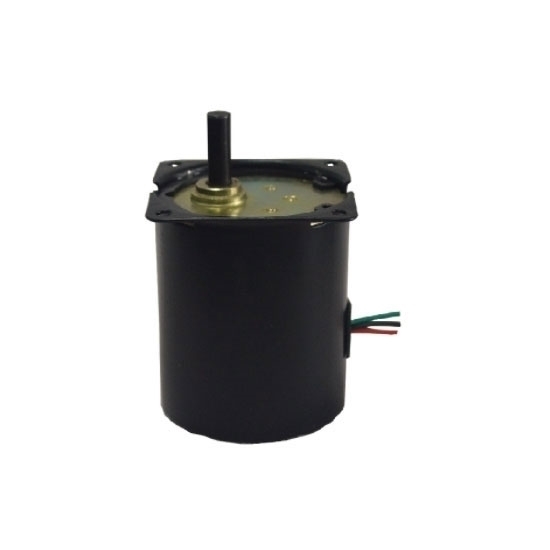

    75 rpm AC Synchronous Gear Motor, 24V/110V/220V

    5 out of 5 based on 7 reviews | Write a review
    Permanent magnet synchronous gear motor for sale at economical price, 1 phase, 75 rpm low output speed at 6/ 8 Kgf•cm output torque, optional voltage 24V/ 110V/ 220V – 240V AC, 50/ 60Hz, duty type S1 continues or S2 (30 mins). It is compact and CW or CCW rotation at constant speed.
    SKU: ATO-60TYD-B75
    This product has a minimum quantity of 2
    30-day Returns
    Free Shipping
    Delivery date: 30-40 Days

    AC PMSM electric motor is mostly used for air cooler, laminator, outdoor auto control machine and monitor, etc. It is reversible and starts by capacitor.


    Model ATO-60TYD-B75
    Duty Type S1 Continues S2 (30 mins)
    Voltage (AC) 24V 110V 220V-240V 24V 110V 220V-240V
    Power Frequency 50/60 Hz 50/60 Hz
    Output Speed 75 rpm
    Output Torque 6 Kgf·cm 8 Kgf·cm
    Rated Speed 1200 rpm 1200 rpm
    Input Power < 17W < 25W
    Input Current < 0.65A < 0.15A < 0.08A < 1.5A < 0.35A < 0.2A
    Rotation CW/CCW (Reversible) CW/CCW (Reversible)
    Operating Temperature -15 ~ 40℃ -15 ~ 40℃
    Coil Temperature Rise < 80K < 80K
    Insulation Class B B
    Insulation Strength AC 1500/ 50Hz/min AC 1500/ 50Hz/min
    Recommended Capacitance 47μF/ 63V 2.2μF/ 250V 0.56μF/ 450V 67μF/ 63V 3.0μF/ 250V 0.8μF/ 450V

    Dimensions (Units: mm)

    Dimensions of 75 rpm AC Synchronous Gear Motor


    5rpm AC Synchronous Gear Motor Details

    Tips: Variable frequency control of AC PM synchronous motor

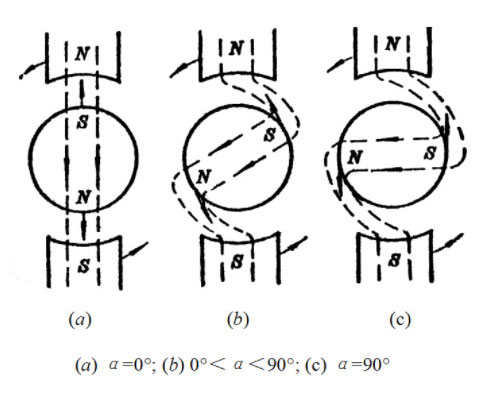

    The electromagnetic torque of AC synchronous motor is related to the size of the included angle α between the stator and rotor magnetic field axis.
    For permanent magnet synchronous motors with hidden pole rotor (p=1),
    When α=0°, only radial force is applied to the rotor, no electromagnetic torque is formed.
    When 0° < α < 90°, the force applied to the rotor can be decomposed into a radial component and a tangential component, in which the tangential component produces the electromagnetic torque.
    When α=90°, the rotor is only subjected to tangential force, and the electromagnetic torque is the maximum, which is called the maximum synchronous torque.

    Electromagnetic Torque of AC PM Synchronous Motor
